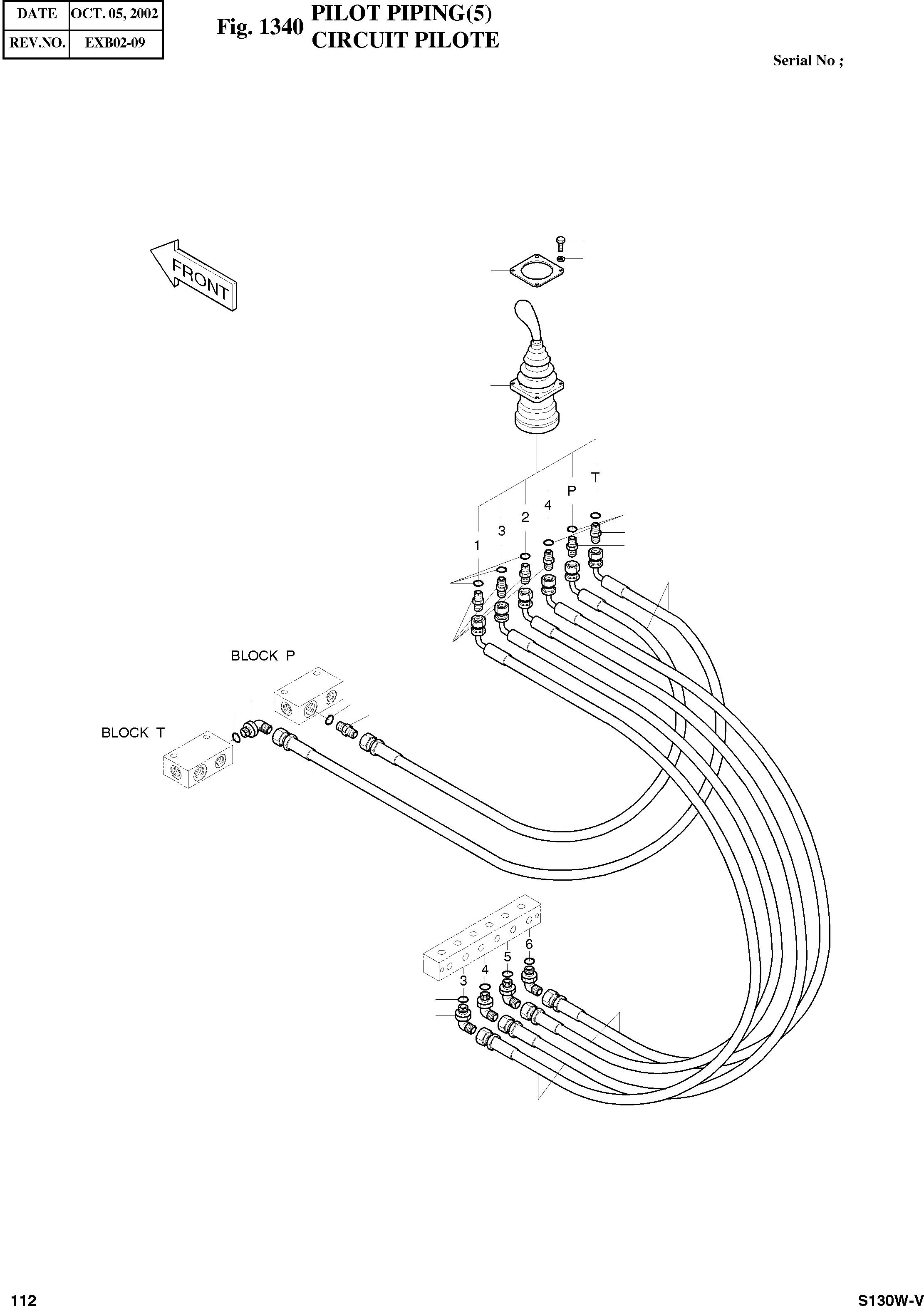

Запчасти Doosan Daewoo PILOT PIPING(5) BODY PARTS

-

2400-1781A

PILOT PIPING

SERIAL: 1-2050

-2шт.

-

2400-1781B

PILOT PIPING

SERIAL: 2051

-2шт.

3

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

4шт.

8

S8000141

O-RING 3/8

desc: JOINT TORIQUE

6шт.

10

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD

1шт.

12

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE EN S

5шт.

13

S8000111

O-RING 1/4

desc: JOINT TORIQUE

6шт.

53

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: RACCORD

5шт.

110

2184-1060D154

HOSE PF3/8-1850L

desc: TUYAU FLEXIBLE

2шт.

111

2184-1060D155

HOSE PF3/8-1550L

desc: TUYAU FLEXIBLE

4шт.

122

2420-9517

VALVE;REMOCON(R.H)

SERIAL: 1-1882

1шт.

122

420-00238

VALVE;REMOCON(R.H)

SERIAL: 1883

1шт.

123

S0505053

BOLT M6X25

desc: BOULON A 6 PANS

4шт.

124

2621-2752

PLATE

desc: PLAQUE CAOUTCHOUC

1шт.

136

2471-1147

FILTER;ADAPTER

desc: RACCORD ADAPTATEUR

1шт.
