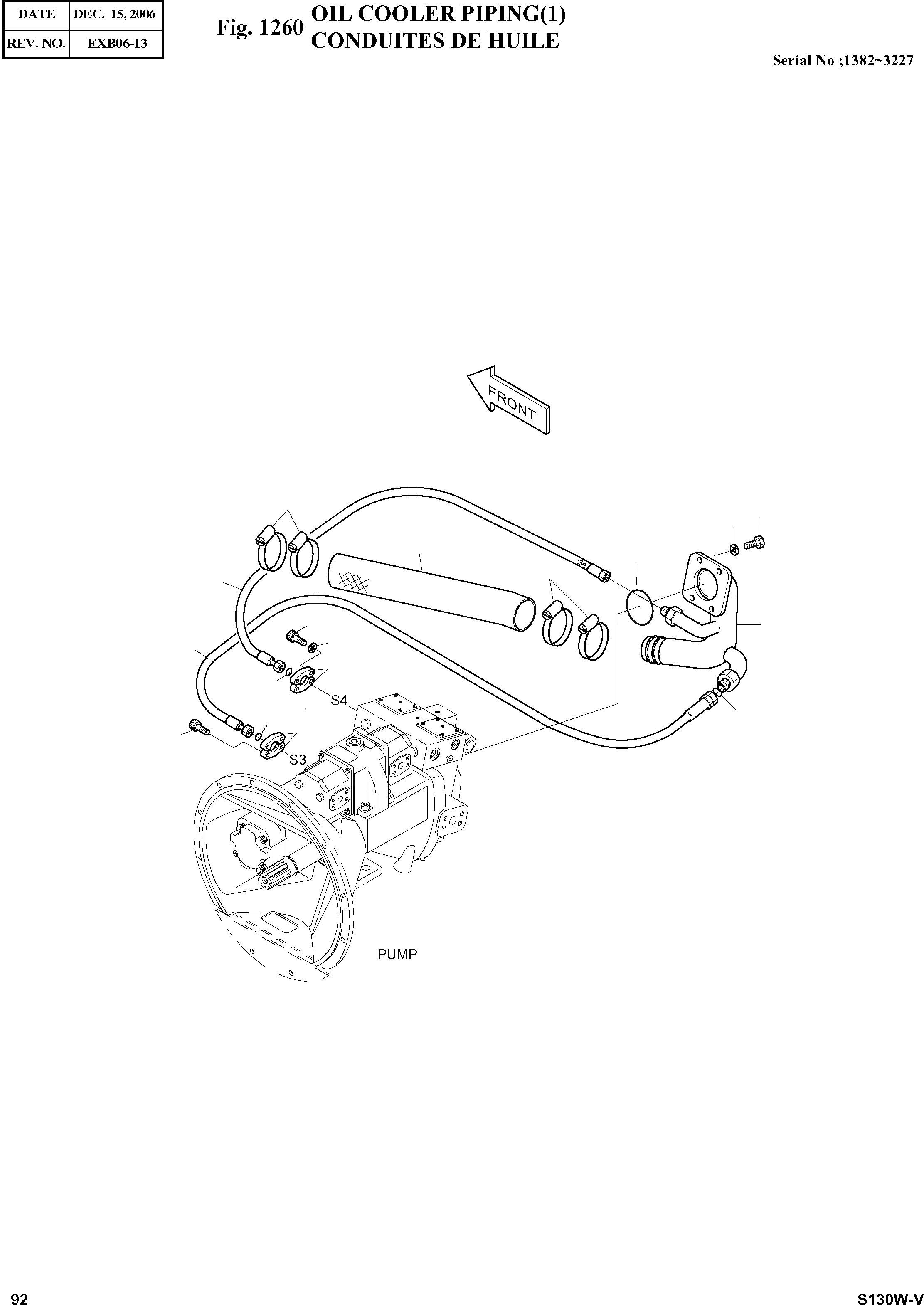

Запчасти Doosan Daewoo OIL COOLER PIPING(1) BODY PARTS

-

2400-1770A

OIL COOLER PIPING

SERIAL: 1382-3227

-2шт.

1

2140-1571B

PIPE;SUCTION

SERIAL: 1382-1745

1шт.

1

2140-1571C

PIPE;SUCTION

SERIAL: 1746-1825

1шт.

1

2140-1571E

PIPE;SUCTION

SERIAL: 1826

1шт.

8

2185-1002D93

HOSE

desc: TUYAU FLEXIBLE

1шт.

11

2184-1229D11

HOSE PF3/4-850L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1095D18

HOSE PF1/2-750L

desc: TUYAU FLEXIBLE

1шт.

22

S8030121

O-RING F12

desc: JOINT TORIQUE

1шт.

24

2180-1026D30

O-RING

desc: JOINT TORIQUE

1шт.

25

S0521251

BOLT M16X2.0X30

SERIAL: 1382-2667

4шт.

25

S0521256

BOLT M16X2.0X30

SERIAL: 2668

4шт.

26

S5102901

WASHER;SPRING M16

SERIAL: 1382-2080

4шт.

26

S5102903

WASHER;SPRING M16

SERIAL: 2081

4шт.

27

S8011101

O-RING

desc: JOINT TORIQUE

1шт.

28

S2209061

BOLT;SOCKET M8X1.25X25

SERIAL: 1382-2080

4шт.

28

S2209066

BOLT;SOCKET M8X1.25X25

SERIAL: 2081

4шт.

29

S5110501

WASHER;SPRING M8

SERIAL: 1382-2080

4шт.

29

S5110503

WASHER;SPRING M8

SERIAL: 2081

4шт.

38

S8450082

CLAMP;HOSE

desc: COLLIER

4шт.

48

2180-1026D2

O-RING

desc: JOINT TORIQUE

1шт.

49

2181-9079

FLANGE;SPLIT

desc: COLLIER

2шт.

50

2181-9089

FLANGE;SPLIT

desc: COLLIER

2шт.

51

S2212061

BOLT;SOCKET M10X1.5X25

SERIAL: 1382-2080

4шт.

51

S2212066

BOLT;SOCKET M10X1.5X25

SERIAL: 2081

4шт.
