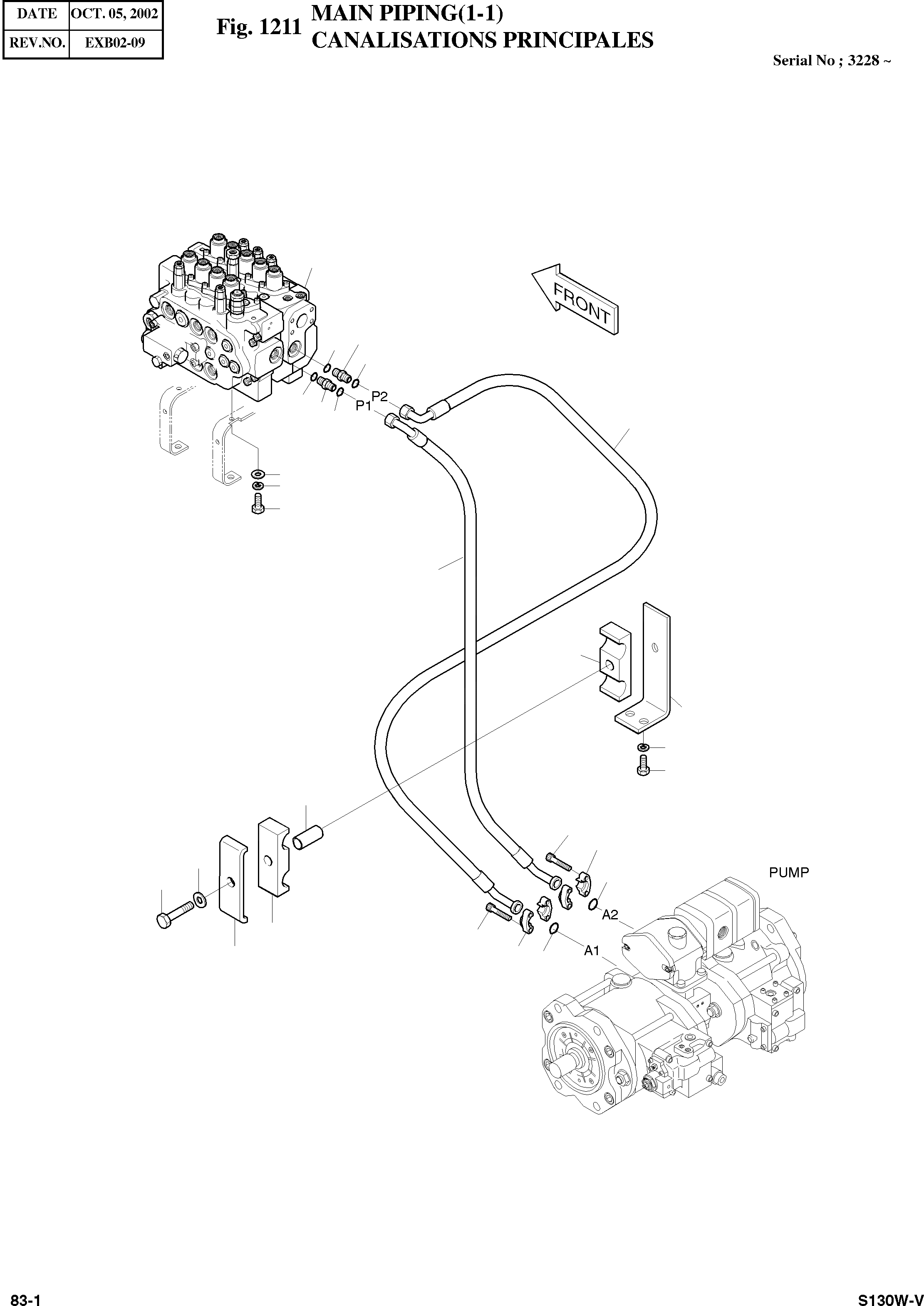

Запчасти Doosan Daewoo MAIN PIPING(1-1) BODY PARTS

-

2400-1782B

MAIN PIPING

SC: D

-2шт.

1

426-00076B

VALVE;CONTROL (KOREA)

desc: TIROIRS DE COMMANDE

1шт.

1

426-E0076B

VALVE;CONTROL (EXPORT)

desc: TIROIRS DE COMMANDE

1шт.

2

S5102901

WASHER;PLAIN M16

desc: RONDELLE

1шт.

12

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

4шт.

13

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

4шт.

14

S5010713

WASHER M12

desc: RONDELLE

4шт.

17

DS2052003

HOSE PF3/4-1070L

desc: TUYAU FLEXIBLE

1шт.

18

DS2052005

HOSE PF3/4-920L

desc: TUYAU FLEXIBLE

1шт.

19

2180-1026D2

O-RING SAE3/4

desc: JOINT TORIQUE

2шт.

20

2181-9080

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

4шт.

22

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

8шт.

23

2181-2627D1

ADAPTER PFO3/4-ORS3/4

desc: RACCORD ADAPTATEUR

2шт.

24

S8030121

O-RING 1 3/16-12

desc: JOINT TORIQUE

2шт.

25

S8000231

O-RING 3/4

desc: JOINT TORIQUE

2шт.

38

2114-1808

SPACER

desc: BAGUE D'ECARTEMENT

1шт.

39

S0565861

BOLT M16X2.0X80

desc: BOULON A 6 PANS

1шт.

46

2124-1548

CLAMP;HOSE

desc: COLLIER

2шт.

47

191-02478

PLATE

desc: PLAQUE

1шт.

59

2116-1563A

PLATE

desc: PLAQUE

1шт.

60

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

61

S0512063

BOLT M10X1.5X25

desc: BOULON A 6 PANS

2шт.
