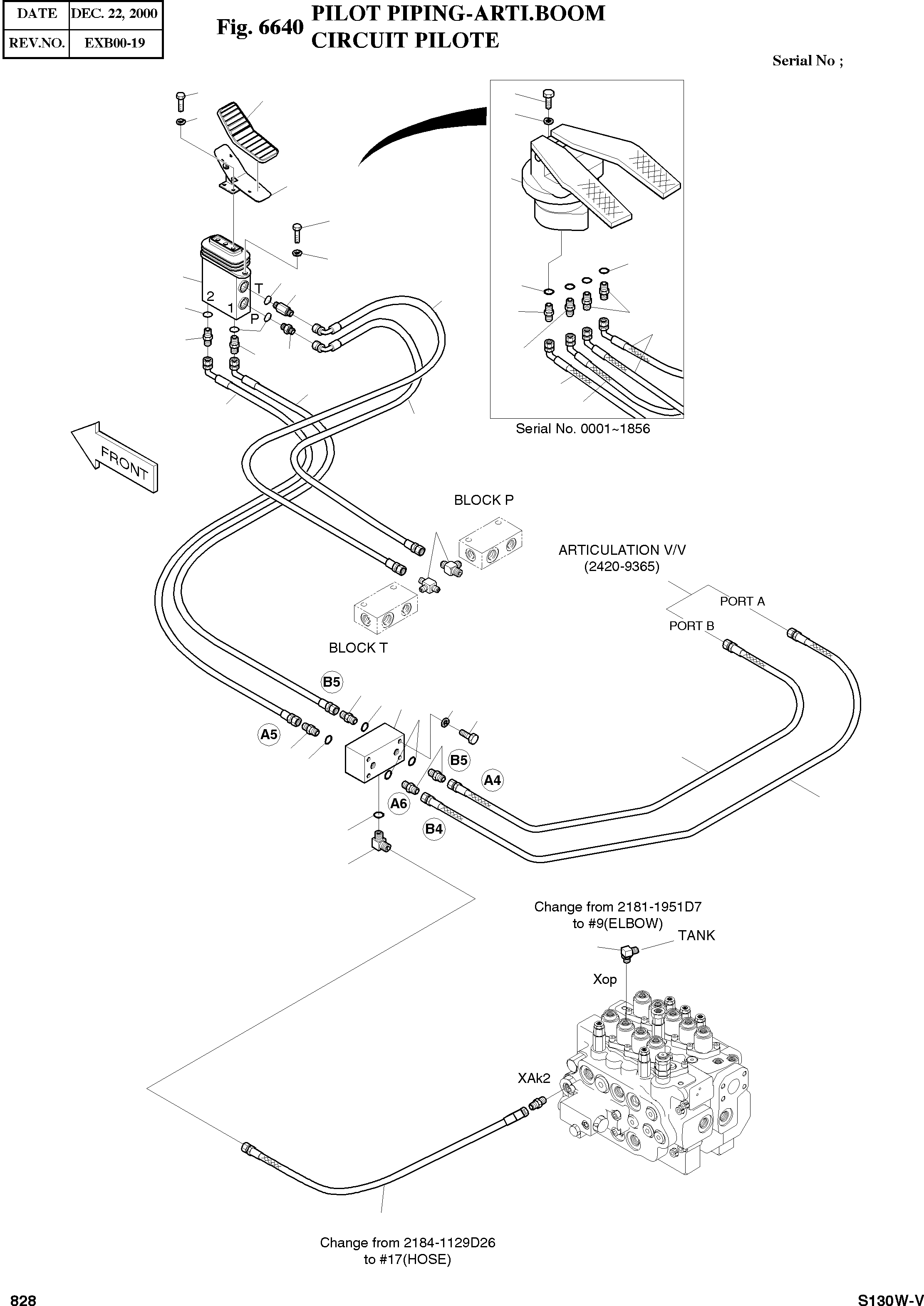

Запчасти Doosan Daewoo PILOT PIPING-ARTI.BOOM OPTION PARTS

-

2400-2063

PILOT PIPING

SC: D

-2шт.

1

2420-9412

VALVE;REMOCON

SERIAL: 1-1664

1шт.

1

420-00160

VALVE;PEDAL

SERIAL: 1665

1шт.

2

S5102303

WASHER;SPRING M6

SERIAL: 1-1664

3шт.

2

S5110601

WASHER;SPRING M10

SERIAL: 1665

4шт.

3

S2205261

BOLT;SOCKET M6X1.0X30

SERIAL: 1-1664

3шт.

3

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1665

2шт.

4

2181-1917D4

ADAPTER PF1/4

SERIAL: 1-1664

3шт.

4

2181-1126D85

ADAPTER PFO1/4-PF3/8

SERIAL: 1665

1шт.

5

S8180221

PACKING PF1/4

desc: RONDELLE D'ETANCHEITE

4шт.

6

2181-1917D24

ADAPTER PF1/4(LONG)

SERIAL: 1-1664

1шт.

6

2181-1126D122

ADAPTER PFO1/4-PF3/8(LONG)

SERIAL: 1665

1шт.

7

S8000111

O-RING P11

desc: JOINT TORIQUE

5шт.

8

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

4шт.

9

2181-1702D4

ELBOW PFO.PF1/2

desc: COUDE

2шт.

10

2420-9158

VALVE;SHUTTLE

desc: CLAPET BALADEUR

1шт.

11

S0556453

BOLT M8X1.25X55

desc: BOULON A 6 PANS

2шт.

12

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

13

2184-1046D63

HOSE(S-90) 1/4-500L

SERIAL: 1-1664

3шт.

13

2184-1060D8

HOSE(S-90) 3/8-400L

SERIAL: 1665

3шт.

14

2184-1062D73

HOSE(45-90) 1/4-460L

SERIAL: 1-1664

1шт.

14

DS2054214

HOSE(ST-45) 3/8-330L

SERIAL: 1665

1шт.

15

2184-1045D107

HOSE PF1/4-3800L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1045D134

HOSE 1/4-4100L

desc: TUYAU FLEXIBLE

1шт.

17

2184-1052D30

HOSE(S-90) 1/4-2650L

desc: TUYAU FLEXIBLE

1шт.

18

2181-2281D3

TEE PFO3/8-PF1/4-PF3/8

SERIAL: 1-1664

2шт.

18

2181-2281D13

TEE PFO3/8-2XPF3/8

SERIAL: 1665

2шт.

19

2184-1046D32

HOSE(S-90) 1/4-480L

SERIAL: 1665

1шт.

20

2184-1046D55

HOSE(S-90) 1/4-530L

SERIAL: 1665

1шт.

21

2197-1817

BRACKET;PEDAL(R.H)

SERIAL: 1665

1шт.

22

2161-2257

REBBER;PEDAL

SERIAL: 1665

1шт.

23

S2211861

BOLT;SOCKET M10X1.5X20

SERIAL: 1665

2шт.
