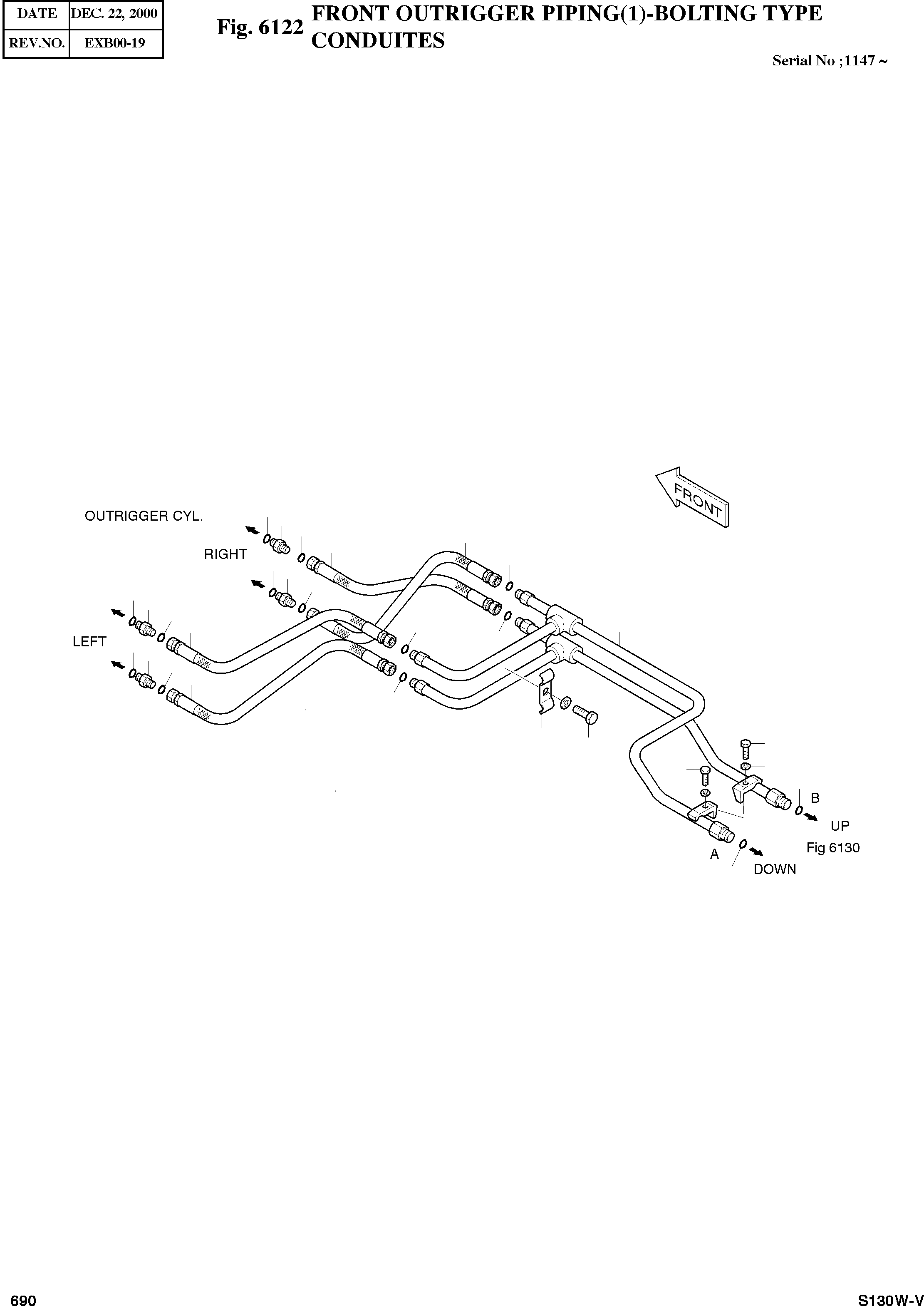

Запчасти Doosan Daewoo FRONT OUTRIGGER PIPING(1)-BOLTING TYPE OPTION PARTS

-

400-00080

OUTRIGGER PIPING

SERIAL: 1147

-2шт.

4

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

2шт.

5

2140-1375A

PIPE

desc: TUYAU

1шт.

6

2140-1374A

PIPE

desc: TUYAU

1шт.

7

2124-1026D1

CLAMP;PIPE

desc: ATTACHE DE TUBE

2шт.

8

S0558453

BOLT M10X1.5X45

desc: BOULON A 6 PANS

2шт.

9

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

1шт.

10

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE M12

1шт.

13

2184-1196D117

HOSE 3/8-600L

desc: TUYAU FLEXIBLE

3шт.

14

2181-4133D39

ADAPTER PFO1/2-UNF11/16

desc: RACCORD ADAPTATEUR

4шт.

19

2124-1340D18

CLAMP;PIPE

desc: ATTACHE DE TUBE

1шт.

26

S8000181

O-RING

desc: JOINT TORIQUE

4шт.

31

2184-1196D120

HOSE 3/8-700L

desc: TUYAU FLEXIBLE

1шт.

46

S8030061

O-RING

desc: JOINT TORIQUE

8шт.

47

S8030081

O-RING

desc: JOINT TORIQUE

2шт.
