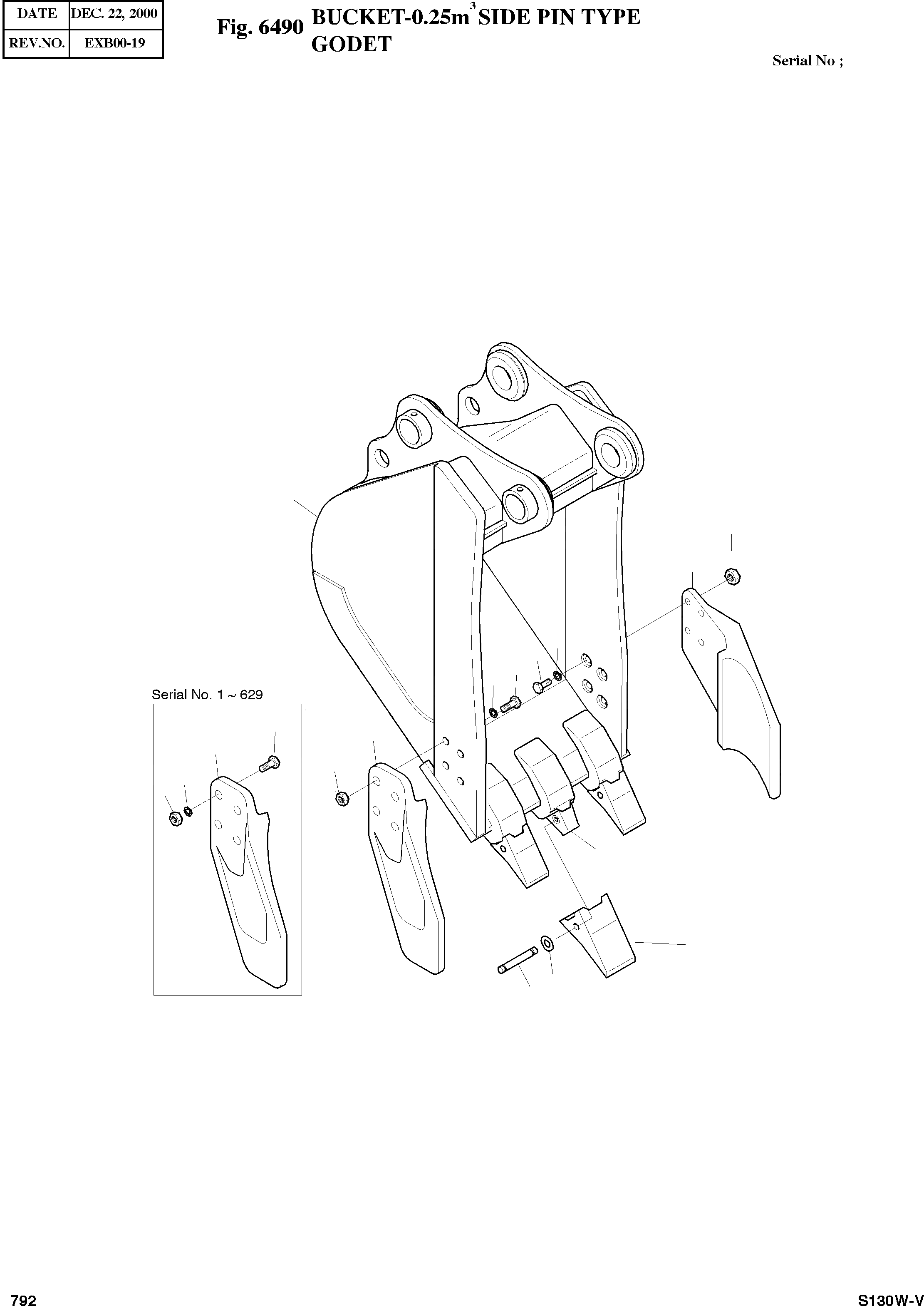

Запчасти Doosan Daewoo BUCKET-0.25§© SIDE PIN TYPE OPTION PARTS

-

2704-1378

BUCKET ASS'Y-0.25§©

SERIAL: 1-380

1шт.

-

2704-1378A

BUCKET ASS'Y-0.25§©

SERIAL: 381-629

1шт.

-

2704-1378B

BUCKET ASS'Y-0.25§©

SERIAL: 630-790

1шт.

-

2704-1378C

BUCKET ASS'Y-0.25§©

SERIAL: 791-1394

1шт.

-

2704-1378E

BUCKET ASS'Y-0.25§©

SERIAL: 1395

1шт.

1

2704-1379

BUCKET-0.25§©

SERIAL: 1-380

1шт.

1

2704-1379A

BUCKET-0.25§©

SERIAL: 381-629

1шт.

1

2704-1379B

BUCKET-0.25§©

SERIAL: 630-790

1шт.

1

2704-1379C

BUCKET-0.25§©

SERIAL: 791-1394

1шт.

1

2704-1379E

BUCKET-0.25§©

SERIAL: 1395

1шт.

1-1

2713-1222

ADAPTER;TOOTH

SERIAL: 1-380

3шт.

1-1

2713-1222A

ADAPTER;TOOTH

SERIAL: 381

3шт.

2

2713-1221

POINT;TOOTH

SERIAL: 1-380

3шт.

2

2713-1221A

POINT;TOOTH

SERIAL: 381

3шт.

3

2705-1022

PIN;LOCKING

desc: GOUPILLE DE BLOCAGE

3шт.

4

2114-1859

WASHER;LOCKING

desc: RONDELLE

3шт.

5

2713-1228

CUTTER;SIDE(R)

SERIAL: 1-1394

1шт.

5

2713-1228A

CUTTER;SIDE(R)

SERIAL: 1395

1шт.

6

2713-1229

CUTTER;SIDE(L)

SERIAL: 1-1394

1шт.

6

2713-1229A

CUTTER;SIDE(L)

SERIAL: 1395

1шт.

7

S0570061

BOLT M20X2.5X60

SERIAL: 1-1394

8шт.

7

S0574561

BOLT M24X3.0X60

SERIAL: 1395

8шт.

8

S4013133

NUT M20X2.5

SERIAL: 1-1394

8шт.

8

S4013333

NUT M24X3.0

SERIAL: 1395

8шт.

9

S5103101

WASHER;SPRING M20

SERIAL: 1-629

8шт.

9

2114-9012

WASHER;HARDEN

SERIAL: 630-1394

8шт.

9

2114-1831

WASHER;HARDEN

SERIAL: 1395

8шт.
