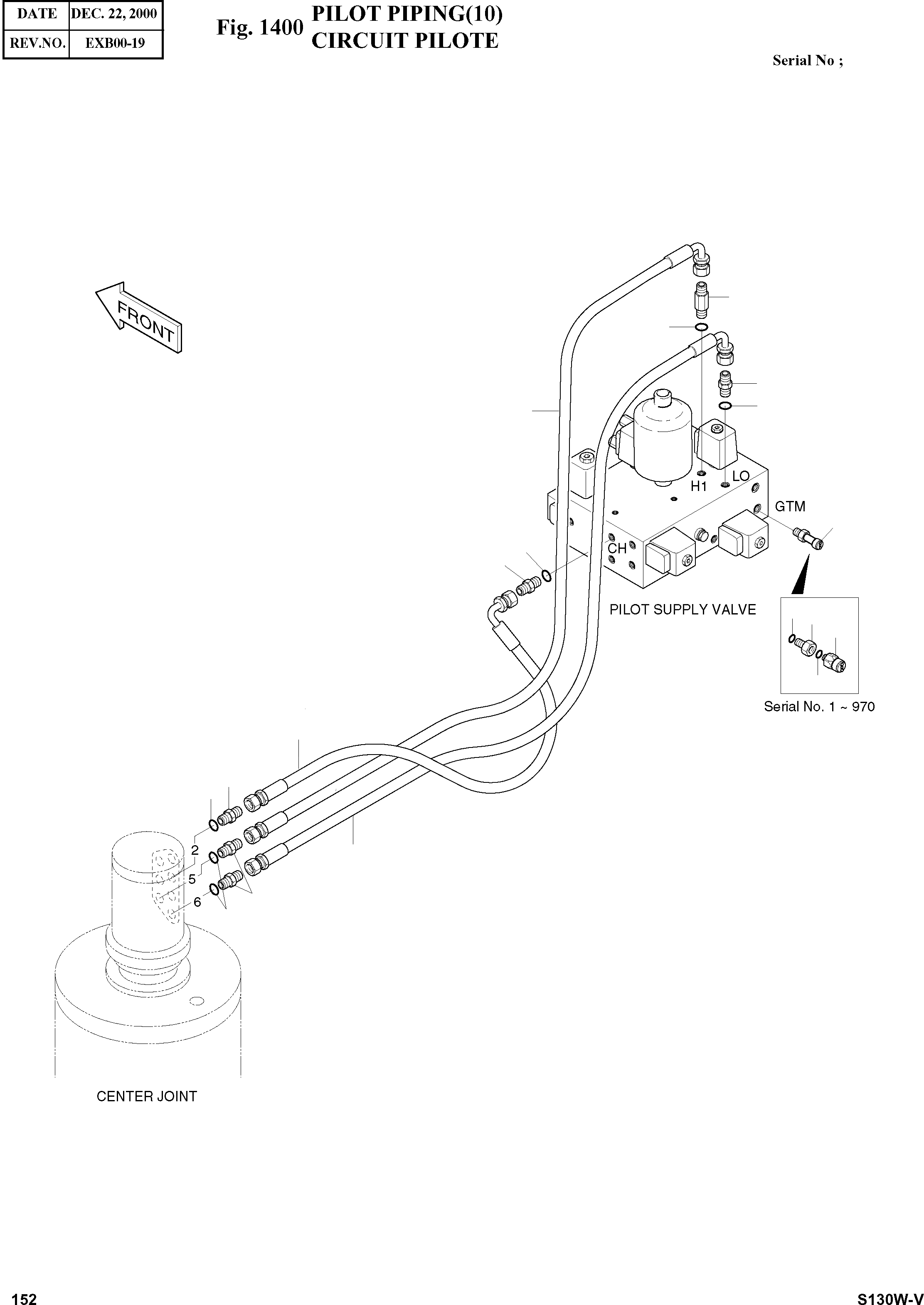

Запчасти Doosan Daewoo PILOT PIPING(10) BODY PARTS

-

2400-1781A

PILOT PIPING

SC: D

-2шт.

8

S8000141

O-RING 3/8

desc: JOINT TORIQUE

4шт.

10

2181-1126D7

ADAPTER PFO.PF3/8

desc: RACCORD

3шт.

13

S8000111

O-RING 1/4

SERIAL: 1-970

3шт.

13

S8000111

O-RING 1/4

SERIAL: 971

2шт.

14

2181-1126D14

ADAPTER PFO.PF1/4

desc: RACCORD ADAPTATEUR

2шт.

30

2181-1126D28

ADAPTER PFO.PF3/8

desc: RACCORD ADAPTATEUR

1шт.

33

2181-2489

REDUCER

SERIAL: 1-970

1шт.

34

2549-1135D6

SWITCH;PRESS 26BAR

SERIAL: 1-970

1шт.

34

547-00001

SENSOR;PRESSURE

SERIAL: 971

1шт.

35

S8180161

PACKING M10

SERIAL: 1-970

1шт.

79

2184-1046D53

HOSE PF1/4-730L

desc: TUYAU FLEXIBLE

1шт.

80

2184-1036D180

HOSE PF3/8-900L

SERIAL: 1-1367

1шт.

80

2184-1036D134

HOSE PF3/8-900L

SERIAL: 1368

1шт.

81

2184-1036D180

HOSE PF3/8-900L

SERIAL: 1-1367

1шт.

81

2184-1036D134

HOSE PF3/8-900L

SERIAL: 1368

1шт.
