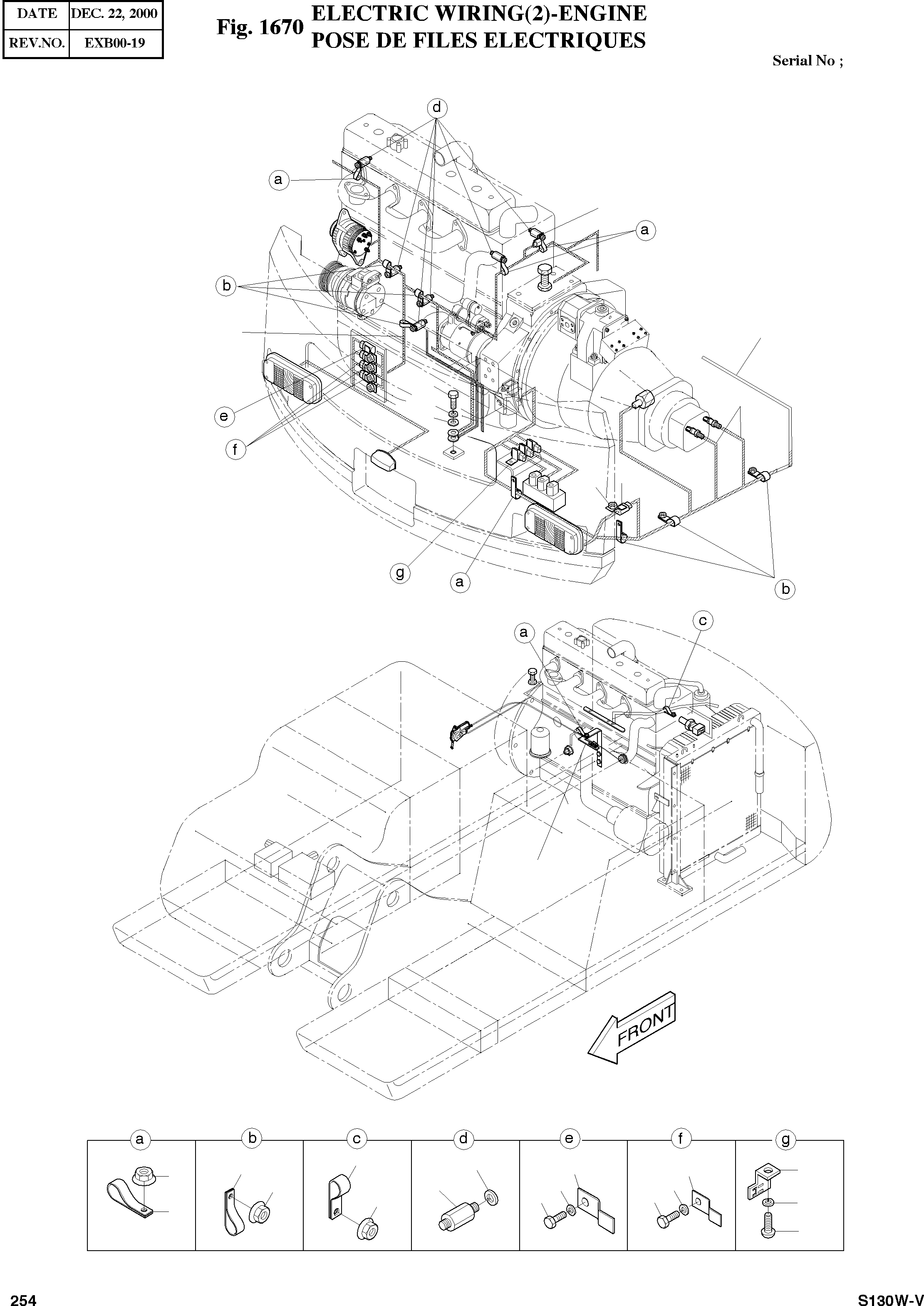

Запчасти Doosan Daewoo ELECTRIC WIRING(2)-ENGINE BODY PARTS

-

2500-1161

ELECTRIC WIRING(2)

SC: D

-2шт.

3

2530-1621A

HARNESS;ENGINE

SERIAL: 1-195

1шт.

3

2530-1621B

HARNESS;ENGINE

SERIAL: 196-710

1шт.

3

2530-1621C

HARNESS;ENGINE

SERIAL: 711-946

1шт.

3

2530-1621E

HARNESS;ENGINE

SERIAL: 947

1шт.

17

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS M10X1.5X16

1шт.

18

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

1шт.

19

S5010613

WASHER;PLAIN M10

desc: RONDELLE

1шт.

20

2195-3500

BRACKET;HOUSING

desc: SUPPORT

4шт.

21

S3450953

SCREW M6X1.0X12

desc: VIS

3шт.

22

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

3шт.

27

2197-1660

BRACKET;HOUSING W15

desc: SUPPORT

2шт.

28

2197-1661

BRACKET;HOUSING W9

desc: SUPPORT

4шт.

29

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

4шт.

30

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

4шт.

31

2120-2151

BOLT;STUD

desc: BOULON A 6 PANS

6шт.

33

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

6шт.

34

2124-1509D1

CLIP D12/M8

desc: ATTACHE

1шт.

35

2124-1509D2

CLIP D18/M8

desc: ATTACHE

5шт.

36

2124-1509D3

DLIP D24/M8

desc: ATTACHE

6шт.

39

2121-1305

NUT M8X1.25

desc: ECROU

12шт.

44

2530-1679

HARNESS;PRESSURE SENSOR

SERIAL: 1-729

2шт.

45

2530-1742

HARNESS;JOINT

SERIAL: 751-867

1шт.
