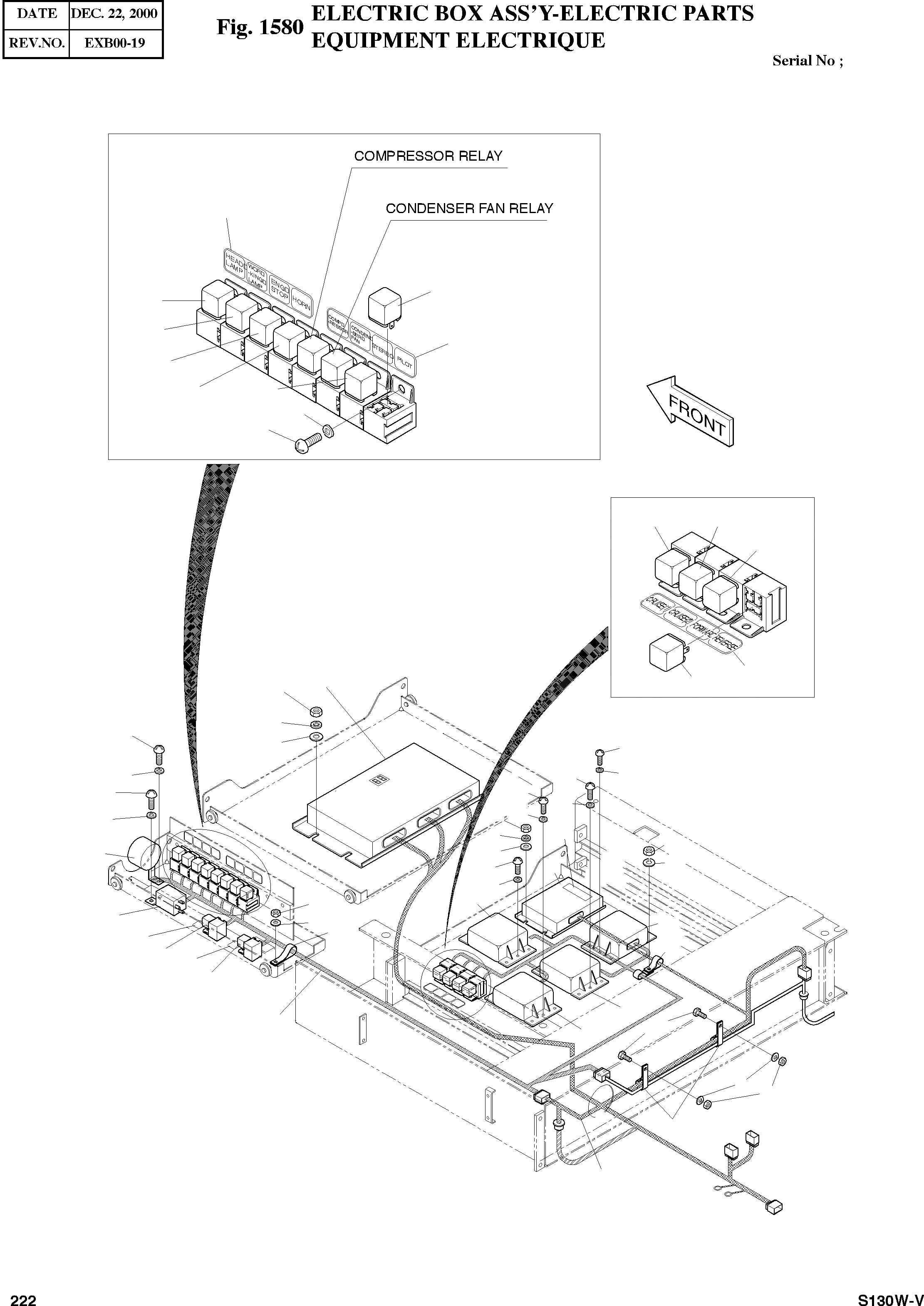

Запчасти Doosan Daewoo ELECTRIC BOX ASSY-ELECTRIC PARTS BODY PARTS

-

2500-1175C

ELECTRIC BOX ASS'Y

SERIAL: 1-235

1шт.

-

2500-1175E

ELECTRIC BOX ASS'Y

SERIAL: 236-360

1шт.

-

2500-1175G

ELECTRIC BOX ASS'Y

SERIAL: 361-506

1шт.

-

2500-1175H

ELECTRIC BOX ASS'Y

SERIAL: 507-646

1шт.

-

2500-1175I

ELECTRIC BOX ASS'Y

SERIAL: 647-650

1шт.

-

2500-1175J

ELECTRIC BOX ASS'Y

SERIAL: 651-970

1шт.

-

2500-1175K

ELECTRIC BOX ASS'Y

SERIAL: 971-1360

1шт.

-

2500-1175L

ELECTRIC BOX ASS'Y

SERIAL: 1361-1409

1шт.

-

2500-1175M

ELECTRIC BOX ASS'Y

SERIAL: 1410

1шт.

2

2543-1038

CONTROLLER;EPOS-V

desc: COMMANDE EPOS

1шт.

3

S4012633

NUT M10X1.5

desc: ECROU M10X1.5

4шт.

4

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

4шт.

5

S5010613

WASHER;PLAIN M10

desc: RONDELLE

4шт.

6

2543-1036

CONTROLLER;THROTTLE

desc: COMMANDE EPOS

1шт.

7

S4012333

NUT M6X1.0

desc: ECROU M6X1.0

4шт.

8

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

4шт.

9

S5010313

WASHER;PLAIN M6

desc: RONDELLE

4шт.

10

2190-3231D3

PLATE;NAME

SERIAL: 1-235

1шт.

10

2190-3231D6

PLATE;NAME

SERIAL: 236

1шт.

11

2523-9015

CONTROLLER;STARTER

desc: MOTEUR

1шт.

12

S3450943

SCREW M6X1.0X10

desc: VIS M6X1.0X10

2шт.

13

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

2шт.

14

2537-9008

TIMER;WIPER

desc: INTERRUPTEUR

1шт.

15

S3450943

SCREW M6X1.0X10

desc: VIS M6X1.0X10

2шт.

16

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

2шт.

17

2531-1003

CONVERTER;DC-DC

desc: CONVERTEUR

1шт.

18

S3450953

SCREW M6X1.0X12

desc: VIS

2шт.

19

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

2шт.

20

2516-1116

BUZZER;PILOT

desc: VIBREUR ARRIERE

1шт.

21

S3450943

SCREW M6X1.0X10

desc: VIS M6X1.0X10

2шт.

22

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

2шт.

23

2525-1009

UNIT;BLINKER

SERIAL: 1-646

1шт.

23

2525-1011

UNIT;BLINKER

SERIAL: 647

1шт.

24

S3450943

SCREW M6X1.0X10

desc: VIS M6X1.0X10

1шт.

25

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

1шт.

26

2543-9025

UNIT;CONTROL

SERIAL: 1-970

1шт.

26

2543-1046

UNIT;CONTROL

SERIAL: 971

1шт.

27

S3450943

SCREW M6X1.0X10

desc: VIS M6X1.0X10

1шт.

28

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

1шт.

29

2544-9029

RELAY;CRUISE(1)

SERIAL: 1-650

1шт.

29

2544-9033

RELAY;CRUISE(1)

SERIAL: 651

1шт.

30

2544-9029

RELAY;CRUISE(2)

SERIAL: 1-650

1шт.

30

2544-9033

RELAY;CRUISE(2)

SERIAL: 651

1шт.

31

2544-9029

RELAY;FORWARD

SERIAL: 1-650

1шт.

31

2544-9033

RELAY;FORWARD

SERIAL: 651

1шт.

32

2544-9029

RELAY;REVERSE

SERIAL: 1-650

1шт.

32

2544-9033

RELAY;REVERSE

SERIAL: 651

1шт.

33

2544-9029

RELAY;HI-LO

SERIAL: 1-650

1шт.

33

2544-9033

RELAY;HI-LO

SERIAL: 651

1шт.

34

2544-9029

RELAY;RAM LOCK

SERIAL: 1-650

1шт.

34

2544-9033

RELAY;RAM LOCK

SERIAL: 651

1шт.

35

2544-9029

RELAY;PILOT

SERIAL: 1-650

1шт.

35

2544-9033

RELAY;PILOT

SERIAL: 651

1шт.

36

2544-9029

RELAY;HEAD LAMP

SERIAL: 1-650

1шт.

36

2544-9033

RELAY;HEAD LAMP

SERIAL: 651

1шт.

37

2544-9029

RELAY;WORKING LAMP

SERIAL: 1-650

1шт.

37

2544-9033

RELAY;WORKING LAMP

SERIAL: 651

1шт.

38

2544-9029

RELAY;ENG STOP

SERIAL: 1-650

1шт.

38

2544-9033

RELAY;ENG STOP

SERIAL: 651

1шт.

39

2544-9029

RELAY;HORN

SERIAL: 1-650

1шт.

39

2544-9033

RELAY;HORN

SERIAL: 651

1шт.

40

2544-9029

RELAY;STEREO

SERIAL: 1-650

1шт.

40

2544-9033

RELAY;STEREO

SERIAL: 651

1шт.

41

2190-2037D2

PLATE;NAME(RELAY)

desc: LABEL

1шт.

42

2190-2037D19

PLATE;NAME(RELAY)

desc: PLAQUE SIGNALETIQUES

1шт.

43

2190-2037D21

PLATE;NAME(RELAY)

desc: LABEL

1шт.

44

2190-2037D22

PLATE;NAME(RELAY)

desc: LABEL

1шт.

45

2190-2037D23

PLATE;NAME(RELAY)

desc: LABEL

1шт.

46

2530-1618

HARNESS;ELECTRIC BOX

SERIAL: 1-506

1шт.

46

2530-1618A

HARNESS;ELECTRIC BOX

SERIAL: 507-970

1шт.

46

2530-1618B

HARNESS;ELECTRIC BOX

SERIAL: 971-1360

1шт.

46

2530-1618C

HARNESS;ELECTRIC BOX

SERIAL: 1361-1409

1шт.

46

2530-1618E

HARNESS;ELECTRIC BOX

SERIAL: 1410

1шт.

47

2530-1617A

HARNESS;CABIN

SERIAL: 1-235

1шт.

47

2530-1617B

HARNESS;CABIN

SERIAL: 236-970

1шт.

47

2530-1617C

HARNESS;CABIN

SERIAL: 971-1409

1шт.

47

2530-1617E

HARNESS;CABIN

SERIAL: 1410

1шт.

48

S3450823

SCREW M50.8X10

desc: VIS

14шт.

49

S5100203

WASHER;SPRING M5

desc: RONDELLE ELASTIQUE M5

14шт.

50

2124-1509D2

CLIP D18/M8

desc: ATTACHE

2шт.

51

2124-1509D4

CLIP D30M8

desc: ATTACHE

1шт.

52

2124-1509D5

CLIP D36/M8

desc: ATTACHE DE TUYAU

2шт.

53

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

2шт.

54

S4012533

NUT M8X1.25

desc: ECROU

4шт.

55

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

4шт.
