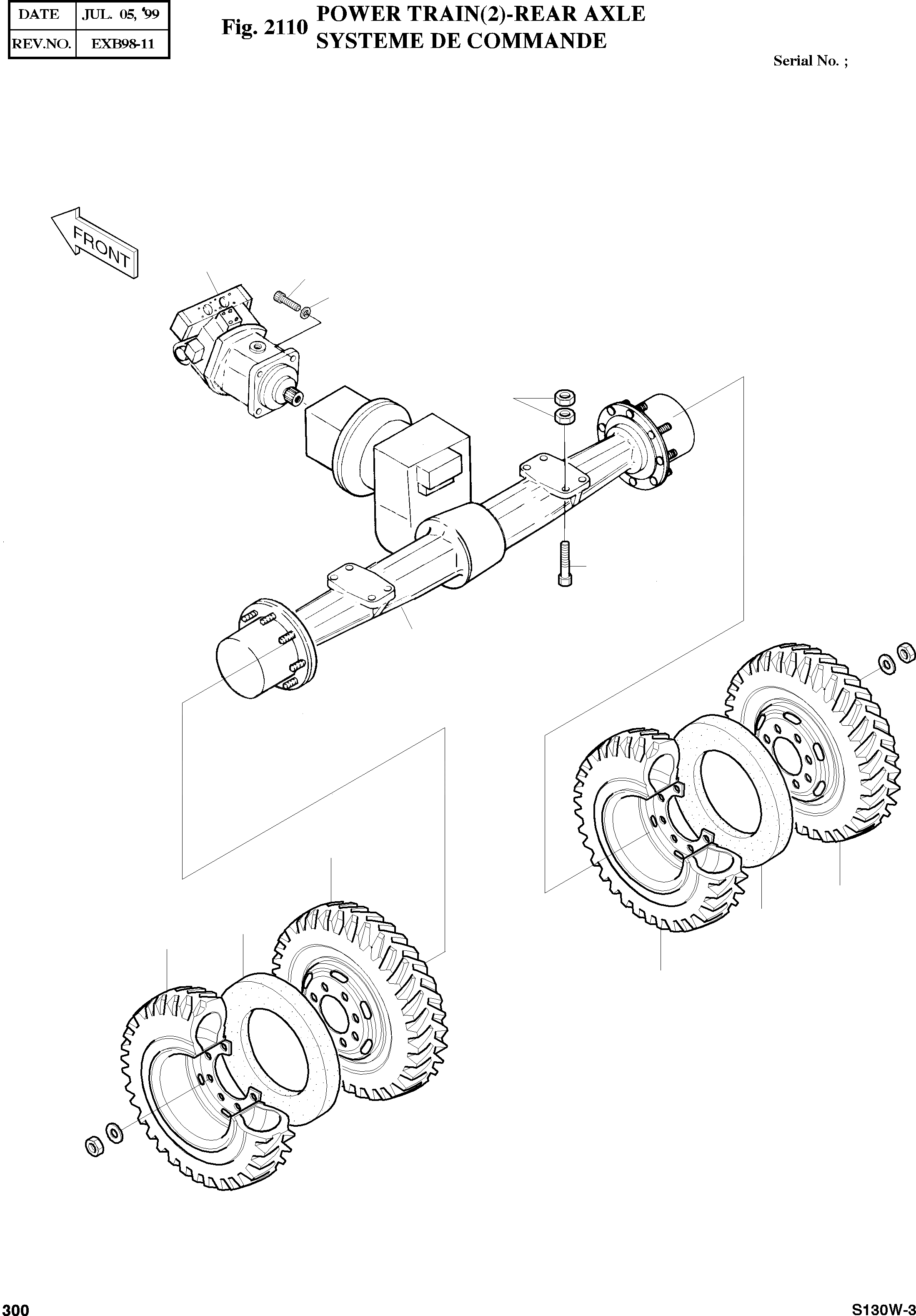

Запчасти Doosan Daewoo POWER TRAIN(2)-REAR AXLE POWER TRAIN

-

2200-1019

POWER TRAIN

desc: ENSEMBLE TRANSMISSION

1шт.

1

2211-9010A

AXLE;REAR

SERIAL: 1-2584

1шт.

1

2211-9010B

AXLE;REAR

SERIAL: 2585

1шт.

5

2401-9142

MOTOR;TRAVEL(41cc/rev)

SERIAL: 1-1205

1шт.

5

2401-9142A

MOTOR;TRAVEL(45cc/rev)

SERIAL: 1206-2833

1шт.

5

2401-9142B

MOTOR;TRAVEL(45cc/rev)

SERIAL: 2834

1шт.

8

2276-1005A

TIRE;OUTSIDE

desc: PNEU

2шт.

8-1

2276-9002G

TIRE

desc: . PNEU

2шт.

8-2

2276-9004

TUBE

desc: . TUYAU FLEXIBLE

1шт.

8-3

2276-9003

FLAP

desc: . FLAP

1шт.

8-4

2278-9005A

RIM

desc: . JANTE

1шт.

9

2276-1004A

TIRE;INSIDE

desc: PNEU

2шт.

9-1

2276-9002G

TIRE

desc: . PNEU

2шт.

9-2

2276-9004

TUBE

desc: . TUYAU FLEXIBLE

1шт.

9-3

2276-9003

FLAP

desc: . FLAP

1шт.

9-4

2278-9005A

RIM

desc: . JANTE

1шт.

16

S0771761

BOLT M20X1.5X160

desc: BOULON A 6 PANS

8шт.

17

S4033133

NUT M20X1.5

desc: ECROU

16шт.

25

S2221661

BOLT;SOCKET M16X2.0X50

desc: BOULON A 6 PANS CREUX

4шт.

30

2161-9039D2

RUBBER;TIRE

desc: CAOUTCHOUC

2шт.

33

S5110901

WASHER;SPRING M16

desc: RONDELLE ELASTIQUE

4шт.
