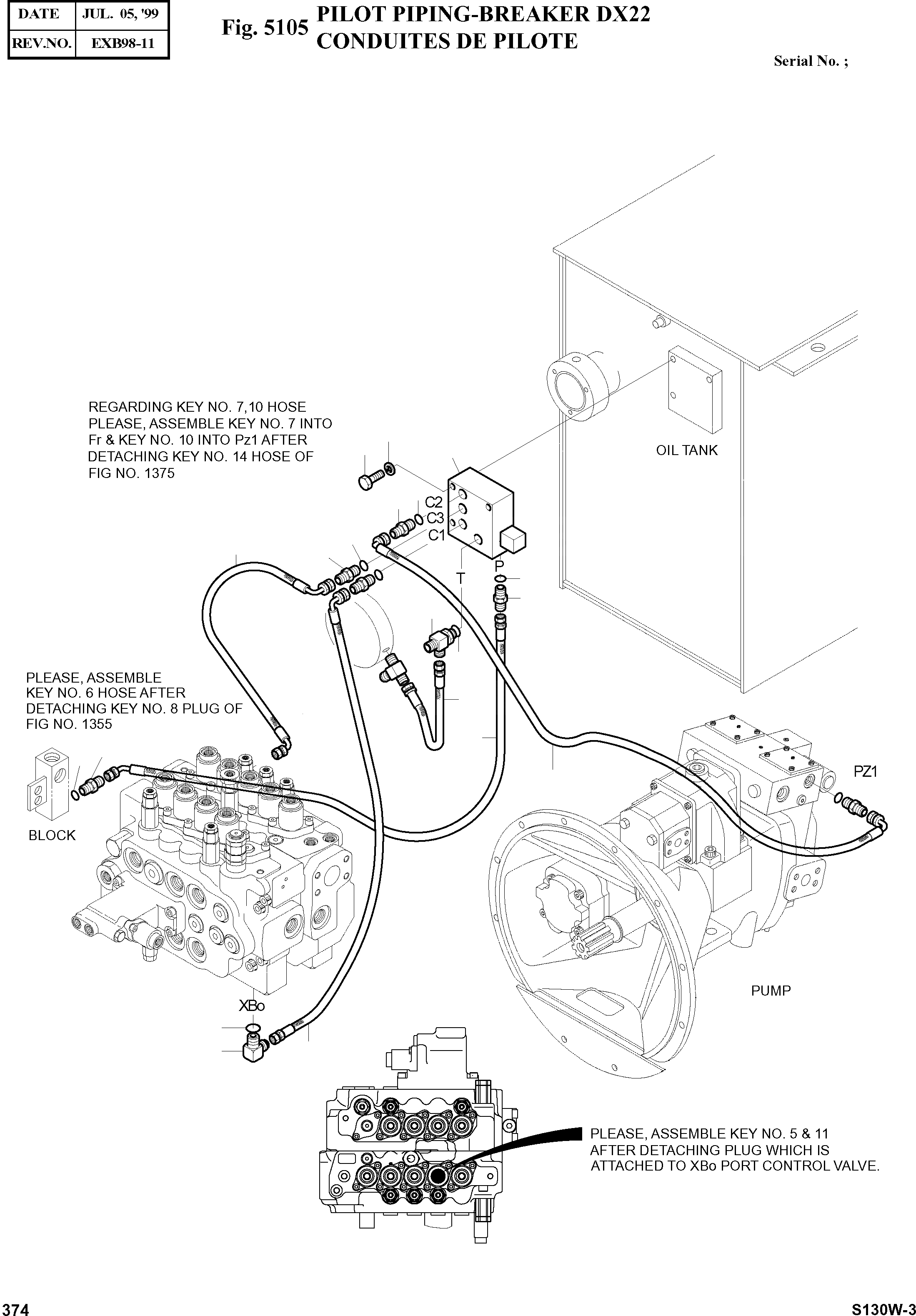

Запчасти Doosan Daewoo PILOT PIPING-BREAKER.DX22 OPTION PARTS

-

2400-1654

BREAKER PIPING

desc: COUPE-CIRCUIT

-2шт.

1

2420-9227A

VALVE;BREAKER

desc: VANNE

1шт.

2

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

3шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

3шт.

4

2181-1126D14

ADAPTER 2PF1/4

desc: RACCORD ADAPTATEUR

5шт.

5

S8000111

O-RING P11

REP_PNO: 8202-009

7шт.

6

2184-1060D31

HOSE PF1/4-1700L

desc: TUYAU FLEXIBLE

1шт.

7

2184-1061D211

HOSE PF1/4-480L

desc: TUYAU FLEXIBLE

1шт.

8

2184-1046D81

HOSE PF1/4-650L

desc: TUYAU FLEXIBLE

1шт.

9

2184-1045D156

HOSE 1/4-350L

desc: TUYAU FLEXIBLE

1шт.

10

2184-1061D22

HOSE(90-90)1/4-1700L

desc: TUYAU FLEXIBLE

1шт.

11

2181-1702D4

ELBOW PFO1/2-PF1/2

desc: COUDE

1шт.

12

2181-1951D1

TEE PFO1/4-2PF1/4

desc: TE

1шт.
