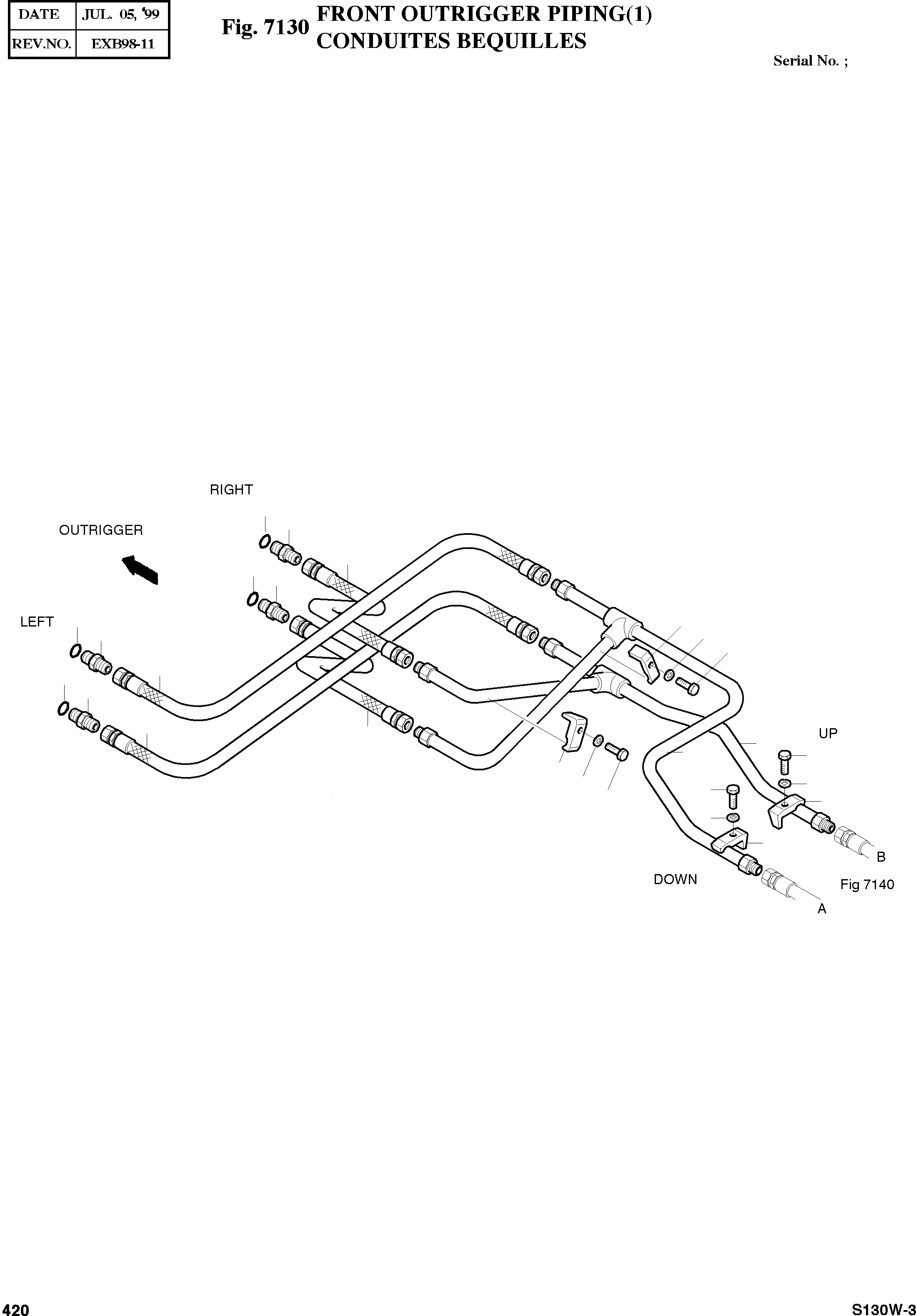

Запчасти Doosan Daewoo FRONT OUTRIGGER PIPING(1) OPTION PARTS

-

2400-1426

OUTRIGGER PIPING

desc: ENSEMBLE DE BEQUILLES

-2шт.

4

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

5

2183-3466

PIPE

desc: CONDUITE

1шт.

6

2183-3467

PIPE

desc: CONDUITE

1шт.

7

2124-1026D1

CLAMP;PIPE 1/2

desc: COLLIER

2шт.

8

S0558453

BOLT M10X1.5X45

desc: BOULON A 6 PANS

2шт.

9

2124-1224D10

CLAMP;PIPE 3/8

desc: COLLIER

2шт.

10

S0512253

BOLT M10X1.5X30

desc: BOULON A 6 PANS

2шт.

13

2184-1054D21

HOSE 3/8-800

desc: TUYAU FLEXIBLE

4шт.

14

2181-1126D8

ADAPTER UNF3/4-PF3/8

desc: RACCORD ADAPTATEUR

4шт.

15

2180-1026D13

O-RING SAE3/4

desc: JOINT TORIQUE

4шт.
