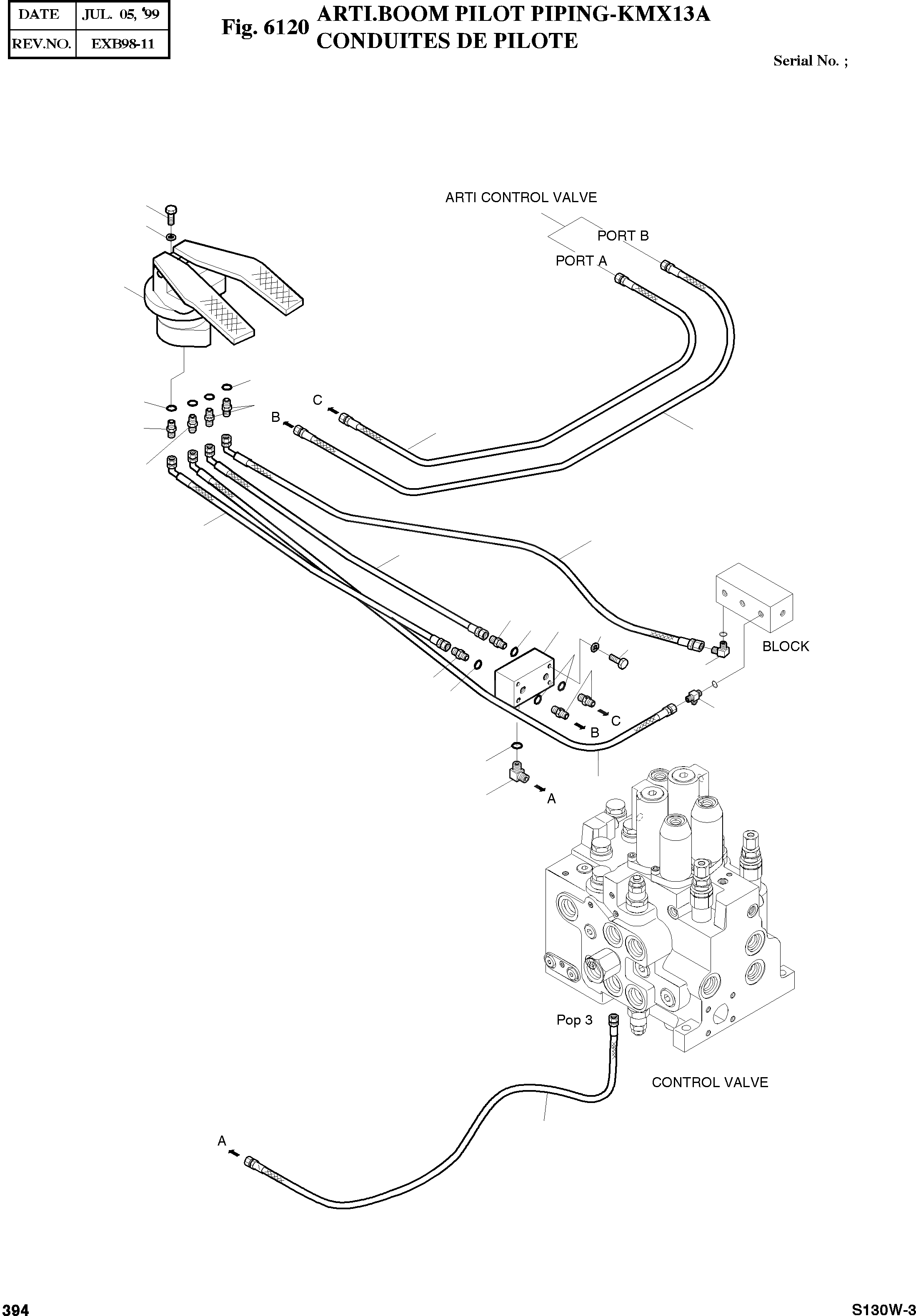

Запчасти Doosan Daewoo ARTI.BOOM PILOT PIPING-KMX13A OPTION PARTS

-

2400-1412F2

PILOT PIPING

desc: CIRCUIT PILOTE(D28 C/V)

-2шт.

4

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

3шт.

9

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

13

2420-9158

VALVE;SHUTTLE

desc: CLAPET BALADEUR

1шт.

14

S0556453

BOLT M8X1.25X55

desc: BOULON A 6 PANS

2шт.

15

S8000111

O-RING P11

REP_PNO: 8202-009

5шт.

16

2181-1126D14

ADAPTER 2PF1/4

desc: RACCORD ADAPTATEUR

4шт.

18

2181-1917D4

ADAPTER PF1/4

desc: RACCORD ADAPTATEUR

3шт.

19

S8180221

PACKING PF1/4

desc: RONDELLE D'ETANCHEITE

4шт.

20

2181-1702D4

ELBOW PFO1/2-PF1/2

desc: COUDE

2шт.

26

2181-1951D1

TEE PFO1/4-2PF1/4

desc: TE

1шт.

37

2184-1045D123

HOSE 1/4-1800L

desc: TUYAU FLEXIBLE

1шт.

44

2184-1046D107

HOSE(S-90) 1/4-1250L

desc: TUYAU FLEXIBLE

2шт.

45

2184-1046D142

HOSE 1/4-900L

desc: TUYAU FLEXIBLE

2шт.

46

2184-1045D94

HOSE 1/4-3900L

desc: TUYAU FLEXIBLE

1шт.

47

2184-1045D106

HOSE 1/4-4400L

desc: TUYAU FLEXIBLE

1шт.

48

2181-1917D24

ADAPTER PF1/4(LONG)

desc: RACCORD ADAPTATEUR

1шт.

49

S2205261

BOLT;SOCKET M6X1.0X30

desc: BOULON A 6 PANS CREUX

3шт.

50

2420-9412

VALVE;REMOCON

desc: VANNE DE COMMANDE A DISTANCE

1шт.
