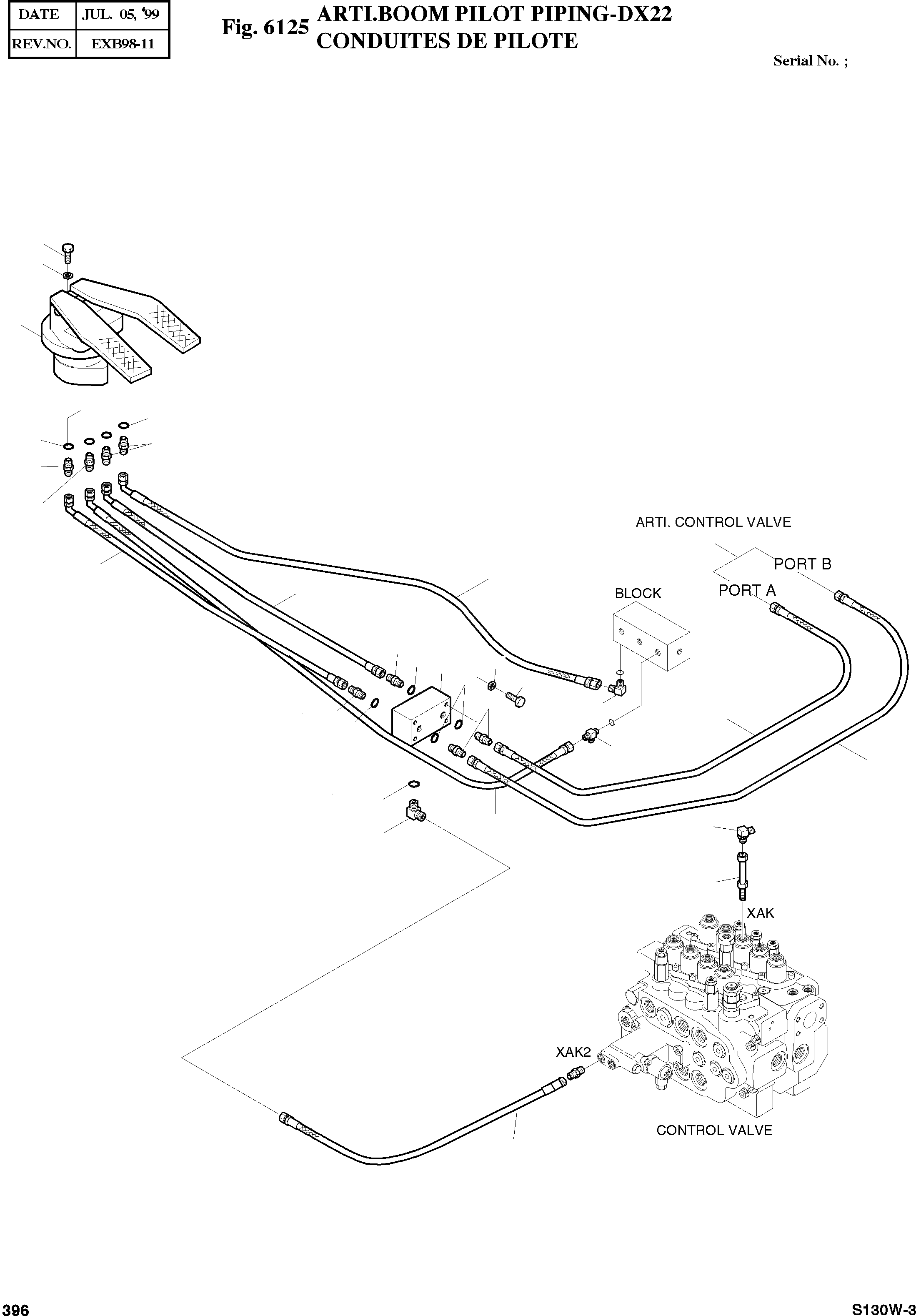

Запчасти Doosan Daewoo ARTI.BOOM PILOT PIPING-DX22 OPTION PARTS

-

2400-1657

PILOT PIPING

desc: CIRCUIT PILOTE(D28 C/V)

-2шт.

1

2420-9412

VALVE;REMOCON

desc: VANNE DE COMMANDE A DISTANCE

1шт.

2

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

3шт.

3

S2205261

BOLT;SOCKET M6X1.0X30

desc: BOULON A 6 PANS CREUX

3шт.

4

2181-1917D4

ADAPTER PF1/4

desc: RACCORD ADAPTATEUR

3шт.

5

S8180221

PACKING PF1/4

desc: RONDELLE D'ETANCHEITE

4шт.

6

2181-1917D24

ADAPTER PF1/4(LONG)

desc: RACCORD ADAPTATEUR

1шт.

7

S8000111

O-RING P11

REP_PNO: 8202-009

5шт.

8

2181-1126D14

ADAPTER 2PF1/4

desc: RACCORD ADAPTATEUR

4шт.

9

2181-1702D4

ELBOW PFO1/2-PF1/2

desc: COUDE

2шт.

10

2420-9158

VALVE;SHUTTLE

desc: CLAPET BALADEUR

1шт.

11

S0556453

BOLT M8X1.25X55

desc: BOULON A 6 PANS

2шт.

12

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

13

2184-1046D107

HOSE(S-90) 1/4-1250L

desc: TUYAU FLEXIBLE

2шт.

14

2184-1046D142

HOSE(S-90) 1/4-900L

desc: TUYAU FLEXIBLE

2шт.

15

2184-1045D94

HOSE 1/4-3900L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1045D106

HOSE 1/4-4400L

desc: TUYAU FLEXIBLE

1шт.

17

2184-1052D11

HOSE(S-90) 1/4-1950L

desc: TUYAU FLEXIBLE

1шт.

18

2181-1951D1

TEE PFO1/4-2PF1/4

desc: TE

1шт.

19

2424-1170

SPOOL;BUCKET OPTION

REP_PNO: 3513-220

1шт.
