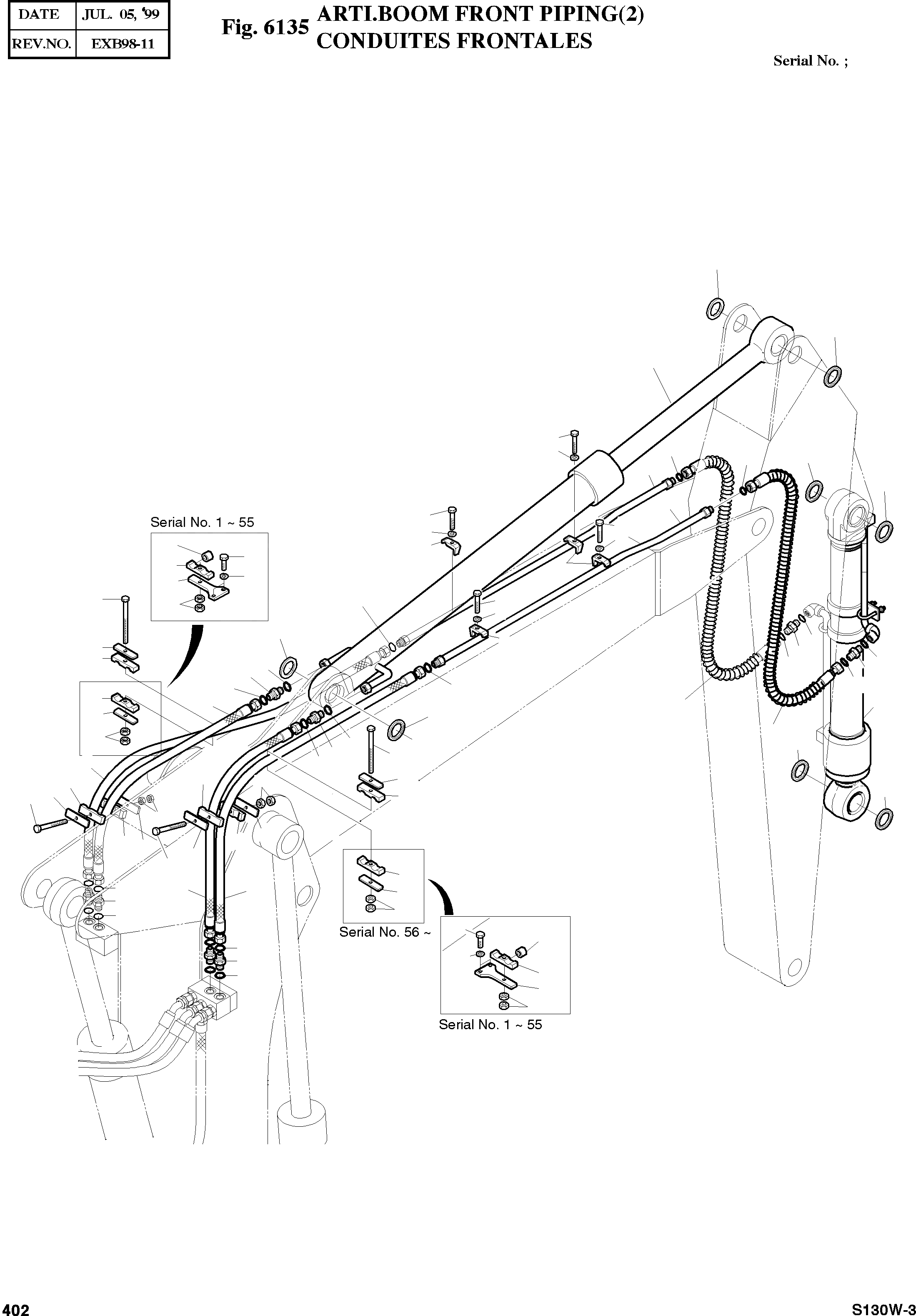

Запчасти Doosan Daewoo ARTI.BOOM FRONT PIPING(2) OPTION PARTS

-

2400-1417F1

PIPING;FRONT

desc: CONDUITES D'ETRANGLEMENT (2)

-2шт.

1

2183-3427

PIPE

desc: CONDUITE

2шт.

5

2124-1026D2

CLAMP;PIPE

desc: ATTACHE DE TUBE

4шт.

6

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

4шт.

7

S0560753

BOLT M12X1.25X50

desc: BOULON A 6 PANS

4шт.

8

2184-1196D11

HOSE UNF1 3/16-12-2150L

desc: TUYAU FLEXIBLE

2шт.

10

2191-3692

PLATE

SERIAL: 1-1055

2шт.

11

2124-1226

CLAMP

desc: COLLIER

8шт.

13

S0559553

BOLT M10X1.25X100

desc: BOULON A 6 PANS

4шт.

14

S4012633

NUT M10X1.5

desc: ECROU

8шт.

15

2114-4056

SPACER

SERIAL: 1-1055

2шт.

20

S0511853

BOLT M10X1.5X20

SERIAL: 1-1055

4шт.

23

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

41

S8000241

O-RING P24

desc: JOINT TORIQUE

8шт.

45

2191-4291

PLATE

SERIAL: 1-1055

6шт.

45

2191-4291

PLATE

SERIAL: 1056

12шт.

49

2184-1196D5

HOSE UNF1 3/16-12-1450L

desc: TUYAU FLEXIBLE

2шт.

50

2181-4133D5

ADAPTER UNF1 3/16-12XPF3/4

desc: RACCORD ADAPTATEUR

8шт.

55

2440-9126

CYLINDER;ARM

desc: VERIN DE BALANCIER

1шт.

56

2440-9127

CYLINDER;BUCKET

desc: VERIN DE GODET

1шт.

57

2184-1196D10

HOSE UNF1 3/16-12-1700L

desc: TUYAU FLEXIBLE

2шт.

62

2180-1106D4

SEAL;DUST D71

desc: PARE-POUSSIERES

8шт.

64

S8030121

O-RING F12

desc: JOINT TORIQUE

12шт.
