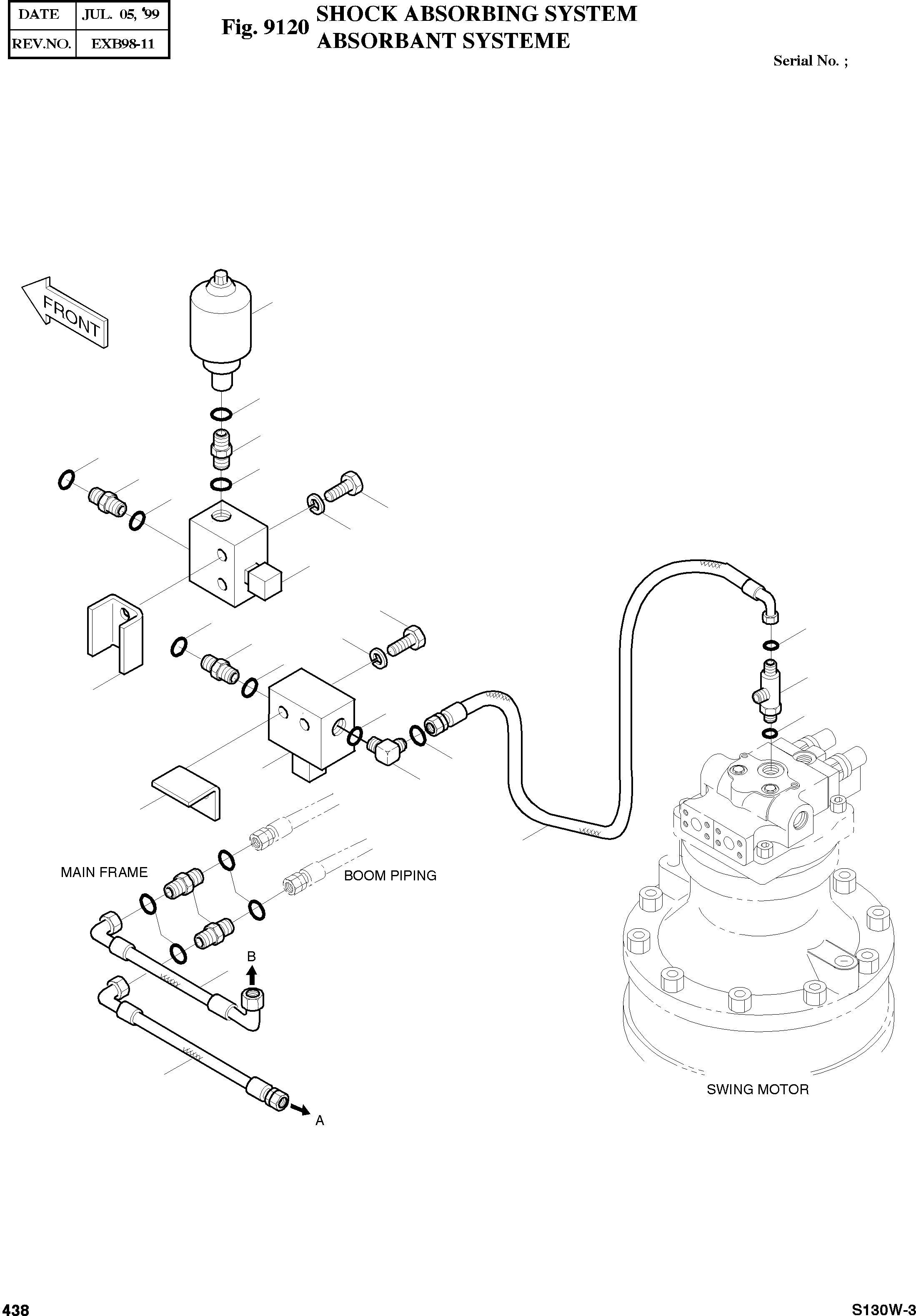

Запчасти Doosan Daewoo SHOCK ABSORBING SYSTEM HYDRAULIC PARTS

-

2400-1422

SAS PIPING

desc: CONDUITES

-2шт.

1

2420-9252

VALVE;SOLENOID

desc: VANNE SOLENOIDE

2шт.

2

S0556453

BOLT M8X1.25X55

desc: BOULON A 6 PANS

4шт.

3

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

4

2460-9016

ACCUMULATOR

desc: RESERVOIR

1шт.

5

2184-1197D15

HOSE 3/4-260L

desc: TUYAU FLEXIBLE

1шт.

6

2184-1198D6

HOSE UNF1 3/16-12-500L

desc: TUYAU FLEXIBLE

1шт.

7

2181-1938D6

ADAPTER M30X1.5XPF3/4

desc: RACCORD ADAPTATEUR

1шт.

8

S8180481

PACKING;CU

desc: RONDELLE D'ETANCHEITE

1шт.

9

2181-2294D2

ELBOW UNF1 3/16-12XPF3/4

desc: COUDE

1шт.

10

2184-1197D34

HOSE 3/4-800L

desc: TUYAU FLEXIBLE

1шт.

11

2181-2293D1

TEE UNF1 3/16-12XPF3/4

desc: TE

1шт.

13

S8030121

O-RING F12

desc: JOINT TORIQUE

6шт.

14

2181-4133D5

ADAPTER UNF1 3/16-12XPF3/4

desc: RACCORD ADAPTATEUR

4шт.

15

S8000241

O-RING P24

desc: JOINT TORIQUE

7шт.

16

2195-3530

BRACKET

desc: SUPPORT

1шт.

17

2195-3531

BRACKET

desc: SUPPORT

1шт.
