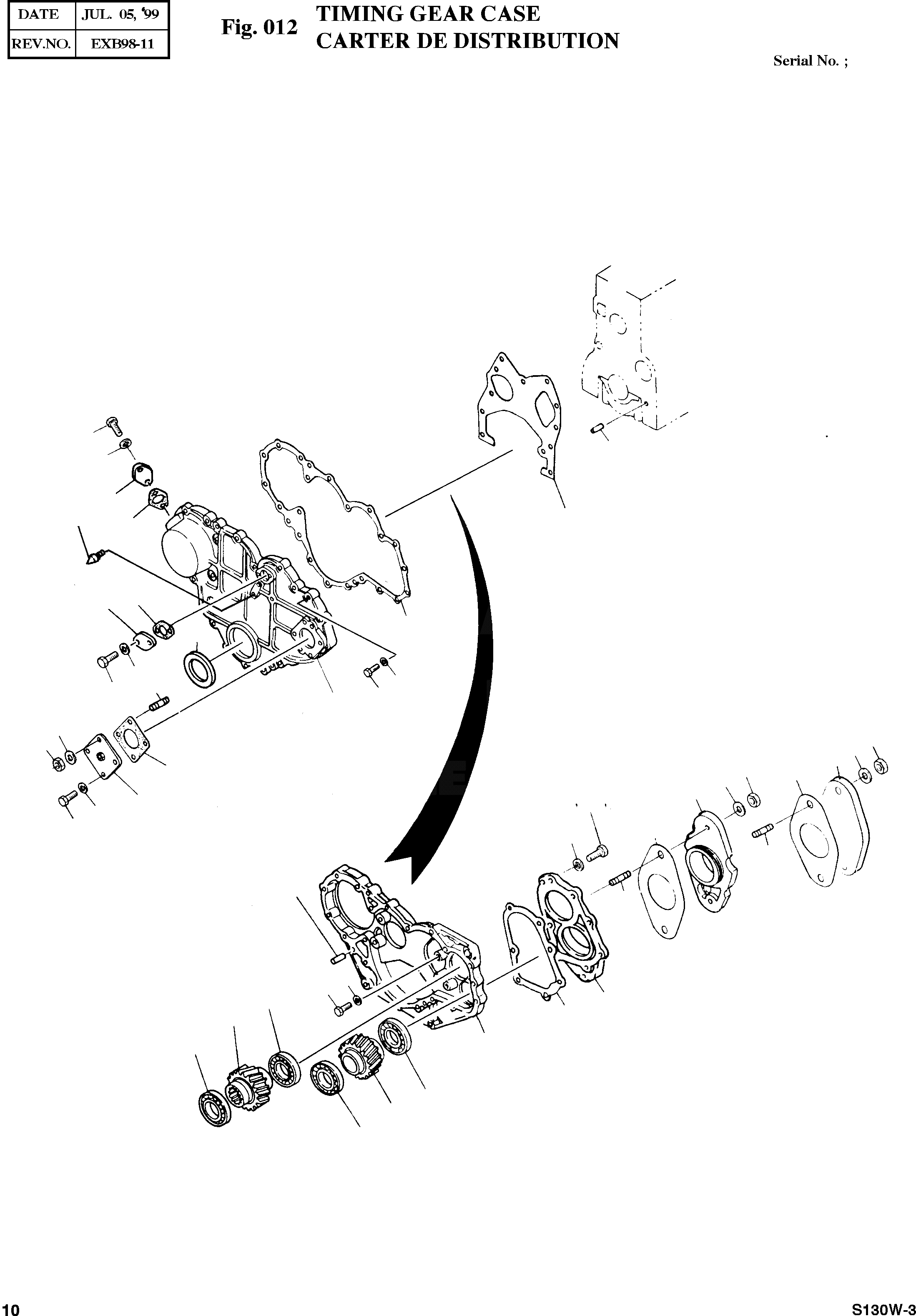

Запчасти Doosan Daewoo TIMING GEAR CASE ENGINE PARTS

-

65.01304-0016

CASE;TIMING GEAR

desc: CARTER DE DISTRIBUTION

1шт.

2

06.22022-3119

PIN

desc: GOUJON

1шт.

3

06.01283-7113

BOLT;HEX. M8X20

SERIAL: 309999

4шт.

3

06.01913-3113

BOLT ASS'Y M8X20

SERIAL: 400001

4шт.

4

06.16731-2107

WASHER;SPRING

SERIAL: 309999

4шт.

4

06.16731-2107

WASHER;SPRING

SERIAL: 400001

2шт.

5

65.01305-5033

COVER;TIMING GEAR CASE

SERIAL: 400211

1шт.

5

65.01305-0017

COVER;TIMING GEAR CASE

SERIAL: 400212

1шт.

6

06.22022-3111

PIN

desc: GOUJON

1шт.

7

06.01013-9117

BOLT;HEX. M8X60

desc: BOULON A 6 PANS

3шт.

7

06.01913-3123

BOLT;HEX. M8X60

desc: BOULON A 6 PANS

3шт.

7

06.01013-9118

BOLT;HEX. M8X65

SERIAL: 309999

3шт.

7

06.01913-3124

BOLT ASS'Y

SERIAL: 400001

3шт.

7

06.01283-7117

BOLT;HEX. M8X30

SERIAL: 309999

3шт.

7

06.01913-3117

BOLT ASS'Y

SERIAL: 400001

3шт.

7

06.01183-7118

BOLT;HEX. M8X35

SERIAL: 309999

1шт.

7

06.01913-3118

BOLT ASS'Y

SERIAL: 400001

1шт.

8

06.16731-2107

WASHER;SPRING A8

SERIAL: 309999

11шт.

8

06.16731-2107

WASHER;SPRING A8

SERIAL: 400001

9

65.01307-0002

COVER;TIMING CHECK HOLE

desc: COUVERCLE

2шт.

10

06.01283-6911

BOLT;HEX. M6X16

SERIAL: 309999

4шт.

10

06.01913-2911

BOLT ASS'Y M6X16

SERIAL: 400001

4шт.

11

06.16731-2105

WASHER;SPRING

SERIAL: 309999

4шт.

11

06.16731-2105

WASHER;SPRING

SERIAL: 400001

12

65.01510-0001

SEAL;OIL(F.R)

desc: JOINT

1шт.

13

65.01903-0002

GASKET;COVER(T.G.C)

desc: JOINT

2шт.

14

65.01903-0026

GASKET;COVER(T.G.C)

desc: JOINT

1шт.

15

65.01903-0004

GASKET;COVER(T.G.C)

desc: JOINT

1шт.

16

65.01307-0008

COVER;GEAR CASE P.T.O

desc: COUVERCLE

1шт.

17

06.06125-8702

BOLT;STUD M8X16

desc: GOUJON

1шт.

18

06.11063-8214

NUT;HEX. M8

desc: ECROU 6 PANS M8

1шт.

19

06.01283-7111

BOLT;HEX. M8X16

SERIAL: 309999

3шт.

19

06.01913-3111

BOLT ASS'Y

SERIAL: 400001

3шт.

20

06.16731-2107

WASHER;SPRING A8

SERIAL: 309999

4шт.

20

06.16731-2107

WASHER;SPRING A8

SERIAL: 400001

21

65.01903-0020

GASKET;COVER

desc: JOINT

1шт.

22

65.38502-0004

GEAR;IDLE P.T.O

desc: ENGRENAGE

1шт.

23

65.38502-0005

GEAR;P.T.O

desc: ENGRENAGE

1шт.

24

06.31410-1616

BEARING;BALL(6908)

desc: PALIER

4шт.

25

65.38525-0005

COVER;GEAR

desc: COUVERCLE

1шт.

26

06.06175-8305

BOLT;STUD M12X1.5X22

desc: BOULON A 6 PANS

2шт.

27

06.01013-9116

BOLT;HEX. M8X55

SERIAL: 309999

4шт.

27

06.01913-3112

BOLT ASS'Y

SERIAL: 400001

4шт.

28

06.01013-9117

BOLT;HEX. M8X60

desc: BOULON A 6 PANS

2шт.

28

06.01913-3123

BOLT;HEX. M8X60

desc: BOULON A 6 PANS

2шт.

29

06.01283-7116

BOLT;HEX

SERIAL: 309999

1шт.

29

06.01913-3116

BOLT ASS'Y M8X28

SERIAL: 400001

1шт.

30

06.16731-2107

WASHER;SPRING

SERIAL: 309999

7шт.

30

06.16731-2107

WASHER;SPRING

SERIAL: 400001

2шт.

31

65.38520-0003

ADAPTER;P.T.O PUMP

desc: RACCORD ADAPTATEUR

1шт.

32

06.06226-0806

BOLT;STUD

desc: GOUJON

2шт.

33

06.11063-9216

NUT;HEX. M12X1.5

SERIAL: 309999

2шт.

33

06.11024-9203

NUT;HEX. M12X1.5

SERIAL: 400001

2шт.

34

06.16731-2109

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

35

65.38525-0001

COVER;ADAPTER

desc: COUVERCLE

1шт.

36

06.11063-8215

NUT;HEX. M10

desc: ECROU 6 PANS M10

2шт.

37

06.16731-2108

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

38

65.38901-0001

COVER;GASKET

desc: COUVERCLE

1шт.

39

65.38901-0002

COVER;GASKET

desc: COUVERCLE

1шт.

40

65.38901-0003

COVER;GASKET

desc: COUVERCLE

1шт.

41

65.91301-0002

POINTER

SERIAL: 400212

1шт.
