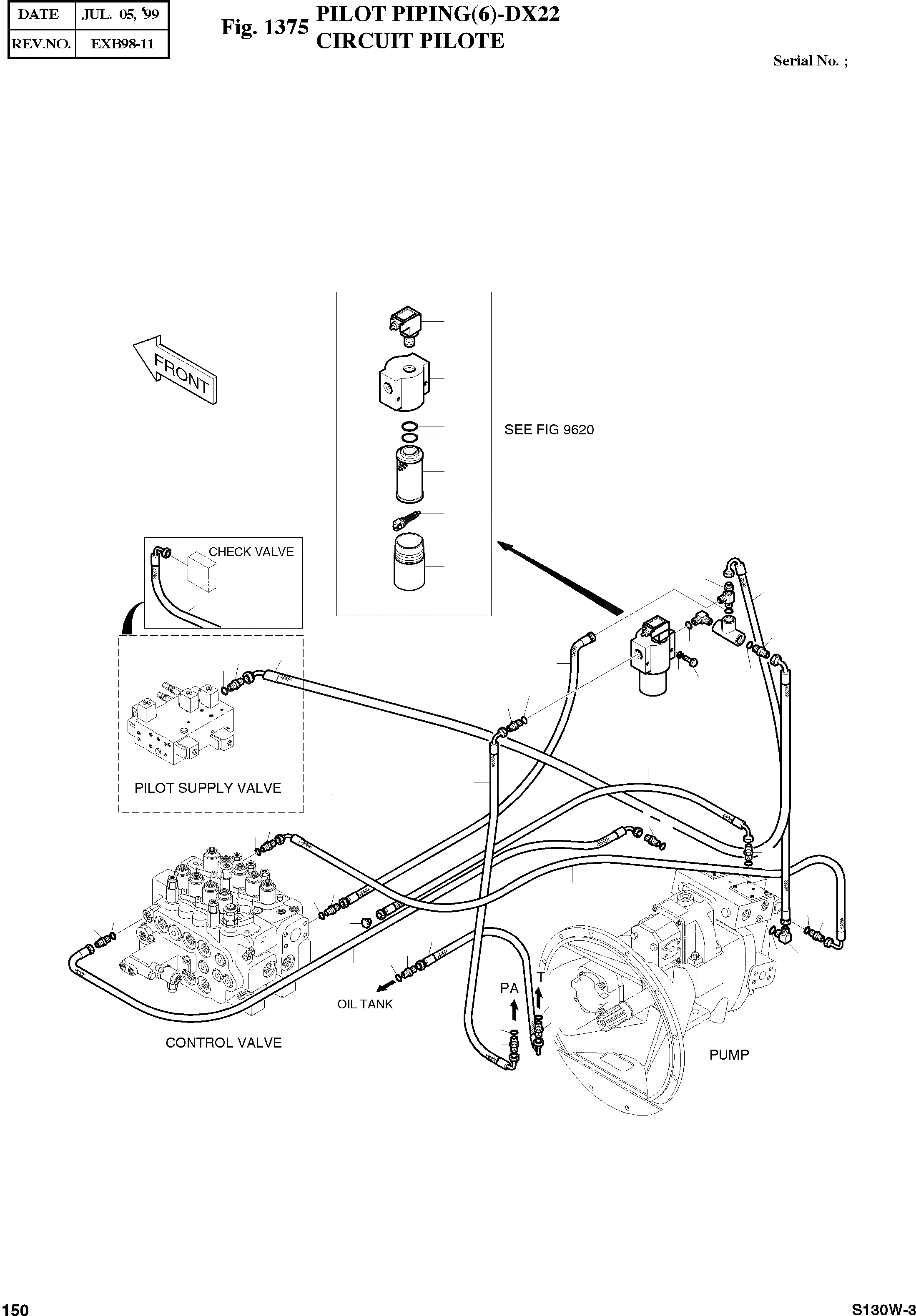

Запчасти Doosan Daewoo PILOT PIPING(6)-DX22 BODY PARTS

-

2400-1619

PILOT PIPING

desc: CIRCUIT PILOTE

-2шт.

1

2181-1126D14

ADAPTER 2PF1/4

desc: RACCORD ADAPTATEUR

6шт.

2

S8000111

O-RING P11

REP_PNO: 8202-009

6шт.

3

2184-1036D3

HOSE(S-90)3/8-650L

desc: TUYAU FLEXIBLE

1шт.

4

2181-1951D6

TEE PF1/4-2PF3/8

desc: TE

1шт.

5

2184-1045D128

HOSE(S-S) 1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

6

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

3шт.

7

S8000141

O-RING P14

REP_PNO: 8202-011

4шт.

9

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE

1шт.

10

2184-1096D16

HOSE(90-90) PF3/8-720L

desc: TUYAU FLEXIBLE

1шт.

11

2181-1126D23

ADAPTER PFO1/2-PF3/8

desc: RACCORD ADAPTATEUR

1шт.

12

S8000181

O-RING P18

REP_PNO: 8202-014

4шт.

13

2181-1702D2

ELBOW PFO1/2-PF1/2

desc: COUDE

1шт.

14

2184-1061D81

HOSE(90-90) 1/4-1500L

SERIAL: 1-1350

1шт.

14

2184-1046D155

HOSE(S-90) 1/4-1500L

SERIAL: 1351

1шт.

15

2471-9026

FILTER'PILOT

desc: FILTRE

1шт.

15A

Y-3738-01

BODY

SC: D

1шт.

15B

Y-3738-02

VALVE ASS'Y

desc: . ENSEMBLE CLAPET

1шт.

15C

2474-9041

ELEMENT

desc: . ELEMENT FILTRANT

1шт.

15D

Y-3738-04

O-RING

desc: . JOINT TORIQUE

1шт.

15E

Y-3738-05

RING;BACK-UP

desc: . BAGUE DE SOUTIEN

1шт.

15F

2472-7003

CASE

desc: . CARTER

1шт.

15G

Y-4117

INDICATOR

desc: . INDICATEUR

1шт.

16

S0553753

BOLT M6X1.0X55

desc: BOULON A 6 PANS

2шт.

17

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

2шт.

18

2184-1061D22

HOSE(90-90) 1/4-1700L

desc: TUYAU FLEXIBLE

1шт.

19

2184-1061D225

HOSE(90-90) 1/2-1550L

desc: TUYAU FLEXIBLE

1шт.

20

2471-1135

ADAPTER;FILTER PFO1/2-PF1/2

desc: FILTRE

1шт.

21

2181-1126D6

ADAPTER PFO1/2-PF1/2

desc: RACCORD ADAPTATEUR

1шт.

24

2183-3489

PIPE

desc: CONDUITE

2шт.

29

2184-1046D147

HOSE(S-90) 1/4-1000L

desc: TUYAU FLEXIBLE

2шт.

30

2181-2339D1

PLUG PF1/4(HOSE)

desc: BOUCHON

2шт.

80

2184-1036D274

HOSE(S-90) 3/8-550L

desc: TUYAU FLEXIBLE

1шт.
