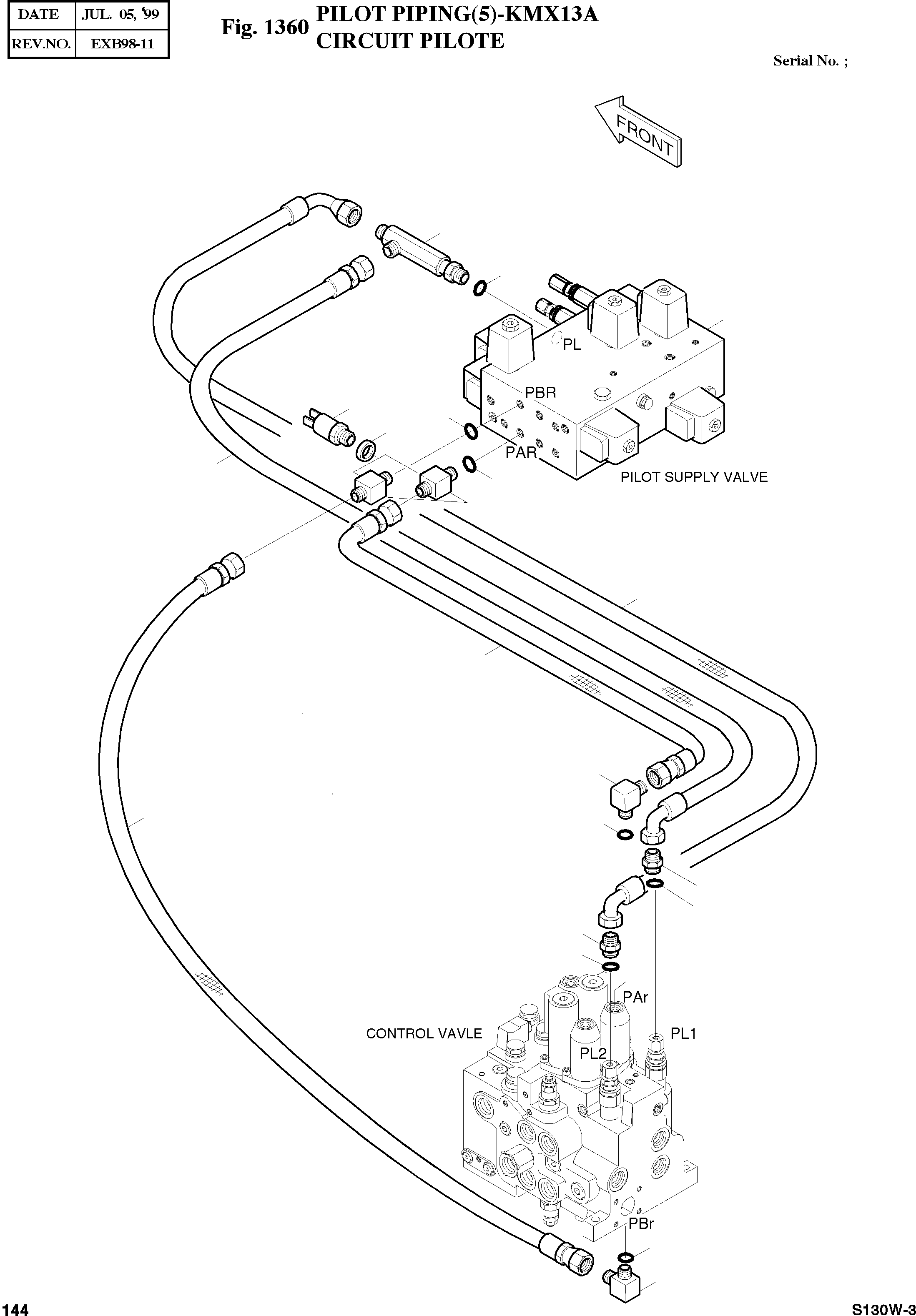

Запчасти Doosan Daewoo PILOT PIPING(5)-KMX13A BODY PARTS

-

2400-1411

PILOT PIPING

desc: CIRCUIT PILOTE

-2шт.

2

S8000111

O-RING P11

REP_PNO: 8202-009

3шт.

7

S8000141

O-RING P14

REP_PNO: 8202-011

2шт.

40

2184-1045D125

HOSE(S-S) 1/4-1700L

desc: TUYAU FLEXIBLE

1шт.

59

2549-9094

SWITCH;PRESSURE 3BAR

desc: INTERRUPTEUR

2шт.

60

S8180191

PACKING M12

desc: RONDELLE D'ETANCHEITE

2шт.

61

2181-2365

ADAPTER PF1/4

desc: RACCORD ADAPTATEUR

2шт.

71

2184-1046D219

HOSE(S-90) 1/4-2100L

desc: TUYAU FLEXIBLE

1шт.

72

2184-1045D128

HOSE(S-S) 1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

73

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

2шт.

75

2181-1951D12

TEE PFO1/4-2PF1/4

desc: TE

1шт.

76

2184-1061D202

HOSE(90-90) 1/4-2050L

desc: TUYAU FLEXIBLE

1шт.

77

2181-2333

ADAPTER PFO1/8-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

78

S8000081

O-RING P8

desc: JOINT TORIQUE

2шт.

90

2420-9248A

VALVE;PILOT SUPPLY

SERIAL: 1-97

1шт.

90

2420-9248B

VALVE;PILOT SUPPLY

SERIAL: 98-242

1шт.

90

2420-9248C

VALVE;PILOT SUPPLY

SERIAL: 243

1шт.
