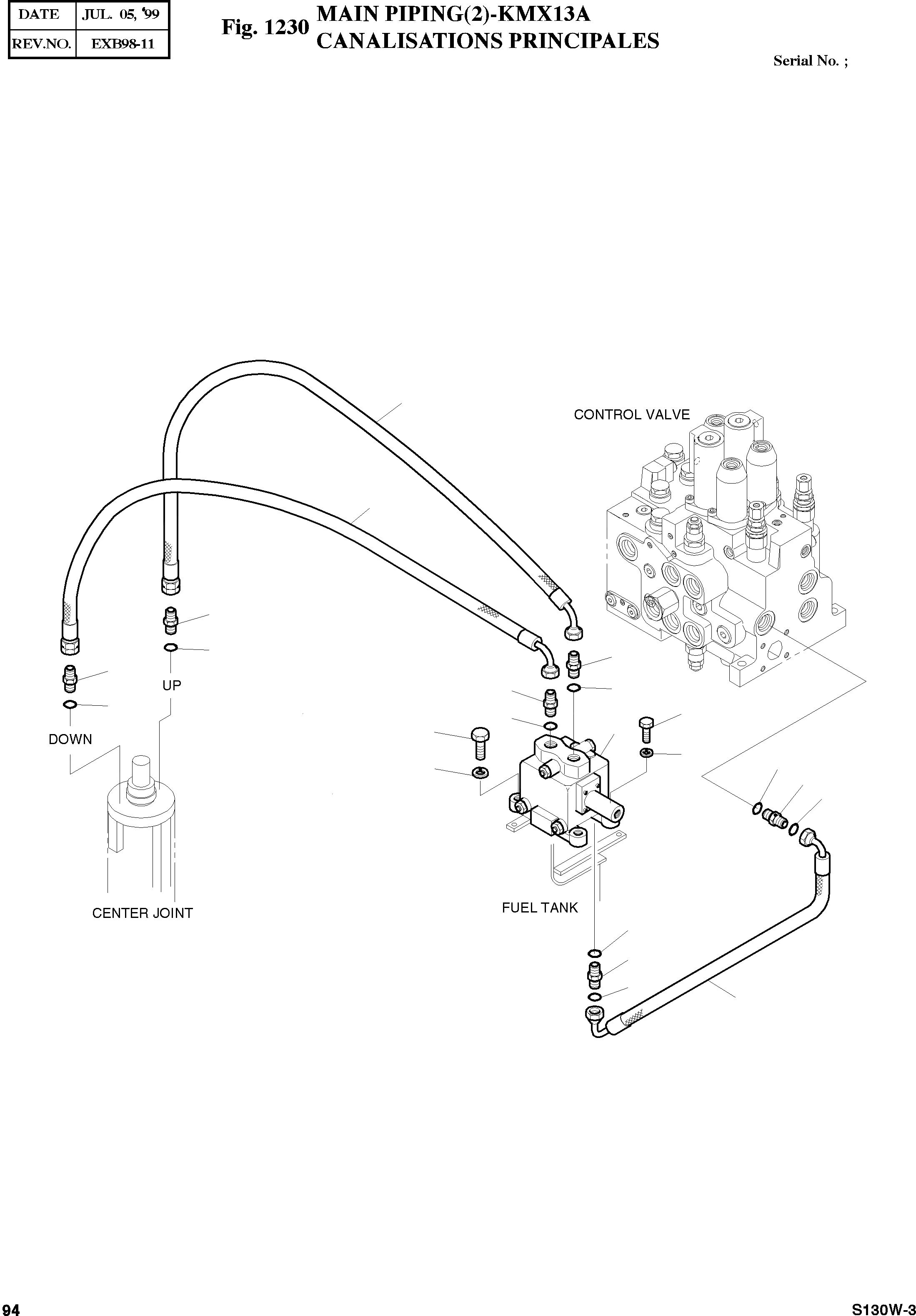

Запчасти Doosan Daewoo MAIN PIPING(2)-KMX13A BODY PARTS

-

2400-1410

MAIN PIPING

desc: CONDUITES PRINCIPALES

-2шт.

2

2420-9261

VALVE;DOZER CONTROL

SERIAL: 1-100

1шт.

2

2420-9261A

VALVE;DOZER CONTROL

SERIAL: 101

1шт.

13

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

4шт.

16

S0560453

BOLT M12X1.75X35

SERIAL: 1-190

2шт.

16

S0560553

BOLT M12X1.75X40

SERIAL: 191

2шт.

23

2181-4133D5

ADAPTER UNF1 3/16-12XPF3/4

desc: RACCORD ADAPTATEUR

3шт.

24

S8000241

O-RING P24

desc: JOINT TORIQUE

4шт.

25

S8030121

O-RING F12

desc: JOINT TORIQUE

6шт.

26

2184-1197D25

HOSE 3/4-600L

desc: TUYAU FLEXIBLE

1шт.

27

2181-1126D100

ADAPTER PFO1-PF1/2

desc: RACCORD ADAPTATEUR

2шт.

28

S8000291

O-RING P29

REP_PNO: 8202-023

2шт.

29

2181-4133D20

ADAPTER PFO3/4-ORS3/4

desc: RACCORD ADAPTATEUR

1шт.

41

2184-1036D215

HOSE(DOZER) 1/2-1300L

desc: TUYAU FLEXIBLE

2шт.

60

S0560553

BOLT M12X1.75X40

SERIAL: 1-190

2шт.

60

S0560653

BOLT M12X1.75X45

SERIAL: 191

2шт.

63

2181-1126D6

ADAPTER PFO1/2-PF1/2

desc: RACCORD ADAPTATEUR

2шт.

64

S8000181

O-RING P18

REP_PNO: 8202-014

2шт.
