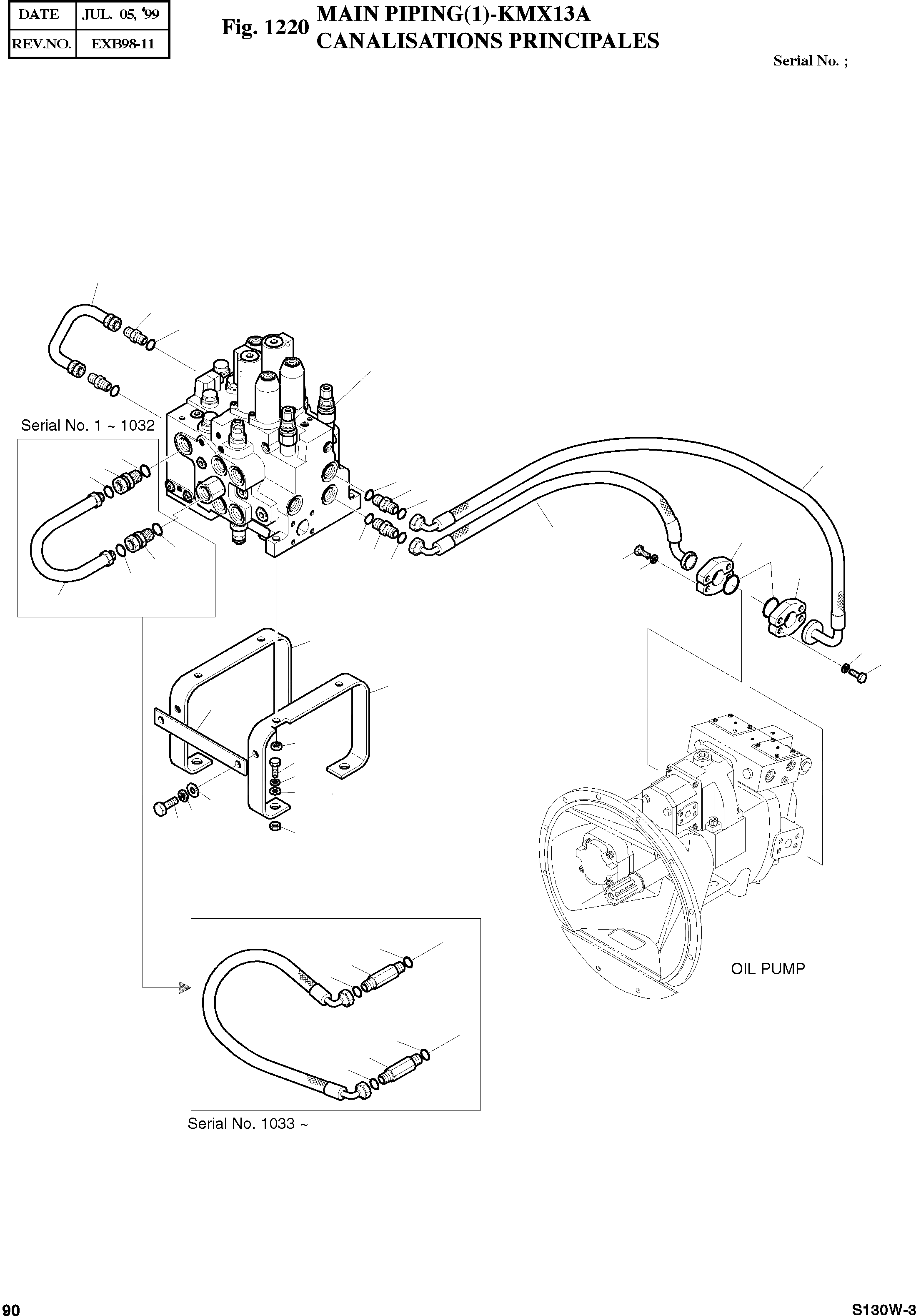

Запчасти Doosan Daewoo MAIN PIPING(1)-KMX13A BODY PARTS

-

2400-1410

MAIN PIPING

SC: D

-2шт.

1

2420-9260

VALVE;CONTROL

SERIAL: 1-392

1шт.

1

2420-9260A

VALVE;CONTROL

SERIAL: 393

1шт.

3

2195-3267

BRACKET

desc: SUPPORT

1шт.

4

S0565251

BOLT M16X2.0X50

desc: BOULON A 6 PANS

4шт.

5

S5102901

WASHER;SPRING M16

desc: RONDELLE ELASTIQUE

4шт.

6

S5010913

WASHER;PLAIN M16

desc: RONDELLE PLATE

4шт.

7

S4012933

NUT M16X2.0

desc: ECROU

4шт.

8

2195-3186

BRACKET

desc: SUPPORT

1шт.

9

S0558353

BOLT M10X1.5X40

desc: BOULON A 6 PANS

2шт.

10

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

2шт.

11

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

15

S4012733

NUT M12X1.75

desc: ECROU

4шт.

17

2184-1202D10

HOSE 3/4-970L

desc: TUYAU FLEXIBLE

1шт.

18

2184-1202D18

HOSE 3/4-1100L

desc: TUYAU FLEXIBLE

1шт.

19

2180-1026D2

O-RING SAE3/4

desc: JOINT TORIQUE

2шт.

20

2181-9079

FLANGE;SPLIT 3/4"SAE

desc: FLASQUE EN DEUX PARTIES

4шт.

21

S2212261

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX

8шт.

22

S5110603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

8шт.

23

2181-4133D5

ADAPTER UNF1 3/16-12XPF3/4

desc: RACCORD ADAPTATEUR

3шт.

24

S8000241

O-RING P24

desc: JOINT TORIQUE

4шт.

25

S8030121

O-RING F12

desc: JOINT TORIQUE

4шт.

35

2195-3866

BRACKET

desc: SUPPORT

1шт.

43

2181-2206D4

ADAPTER PFO3/4-ORFS3/4

SERIAL: 1-1032

2шт.

44

2183-4664

PIPE

SERIAL: 1-197

1шт.

44

2183-4664A

PIPE

SERIAL: 198-1032

1шт.

44

2184-1260

HOSE ORS3/4-1300L

SERIAL: 1033

1шт.

45

S8000141

O-RING P14

REP_PNO: 8202-011

2шт.

46

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

47

2183-3452

PIPE

SERIAL: 1-97

1шт.

47

2183-3978

PIPE

SERIAL: 98

1шт.

70

2181-4133D32

ADAPTER PF3/4-UNF1 3/16-12

SERIAL: 1033

1шт.

71

2181-4133D31

ADAPTER PF3/4-UNF1 3/16-12

SERIAL: 1033

1шт.
