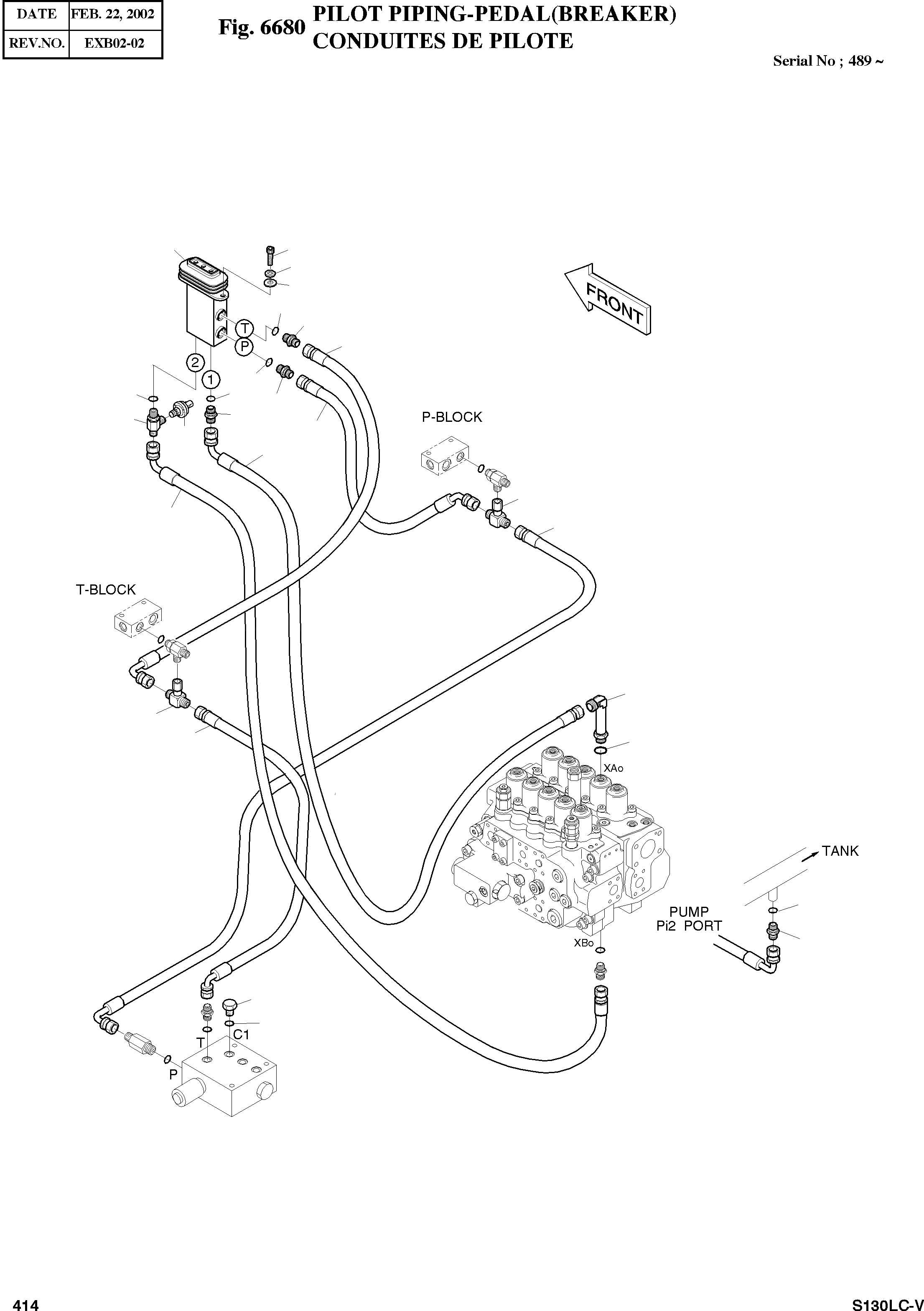

/ / / / / PILOT PIPING-PEDAL(BREAKER)
Запчасти Doosan Daewoo PILOT PIPING-PEDAL(BREAKER) OPTION PARTS
1
2
3
4
6
5
9
6
6
6
5
5
19
10
20
12
7
11
15
13
7
16
8
18
17
14
6
-
400-00425
PILOT PIPING-PEDAL(BREAKER)
SC: D
-2шт.
1
420-00160
VALVE;PEDAL
desc: VANNE
1шт.
2
S2212261
BOLT;SOCKET M10X1.5X30
SERIAL: 489-711
2шт.
2
S2212266
BOLT;SOCKET M10X1.5X30
SERIAL: 712
2шт.
3
S5110601
WASHER;SPRING
SERIAL: 489-711
2шт.
3
S5110603
WASHER;SPRING
SERIAL: 712
2шт.
4
S5010613
WASHER;PLAIN
desc: RONDELLE ELASTIQUE
2шт.
5
2181-1126D14
ADAPTER PFO1/4-PF1/4
desc: RACCORD ADAPTATEUR
3шт.
6
S8000111
O-RING
desc: JOINT TORIQUE
5шт.
7
2181-4125
TEE 3PF1/4
desc: TE
2шт.
8
S8000141
O-RING
desc: JOINT TORIQUE
1шт.
9
2184-1046D206
HOSE PF1/4-550L
desc: TUYAU FLEXIBLE
1шт.
10
2184-1060D69
HOSE PF1/4-400L
desc: TUYAU FLEXIBLE
1шт.
11
2184-1046D188
HOSE PF1/4-2400L
desc: TUYAU FLEXIBLE
1шт.
12
2184-1046D180
HOSE PF1/4-2700L
desc: TUYAU FLEXIBLE
1шт.
13
2181-1702D58
ELBOW PFO3/8-PF1/4
desc: COUDE
1шт.
14
2181-1950D1
PLUG
desc: BOUCHON
1шт.
15
2184-1046D61
HOSE PF1/4-1750L
desc: TUYAU FLEXIBLE
1шт.
16
2184-1046D62
HOSE PF1/4-1850L
desc: TUYAU FLEXIBLE
1шт.
17
2181-1126D6
ADAPTER PFO1/2-PF1/2
desc: RACCORD ADAPTATEUR
1шт.
18
S8000181
O-RING
desc: JOINT TORIQUE
1шт.
19
181-00507
TEE
desc: TE
1шт.
20
549-00010
SWITCH;PRESSURE
desc: INTERRUPTEUR
1шт.
