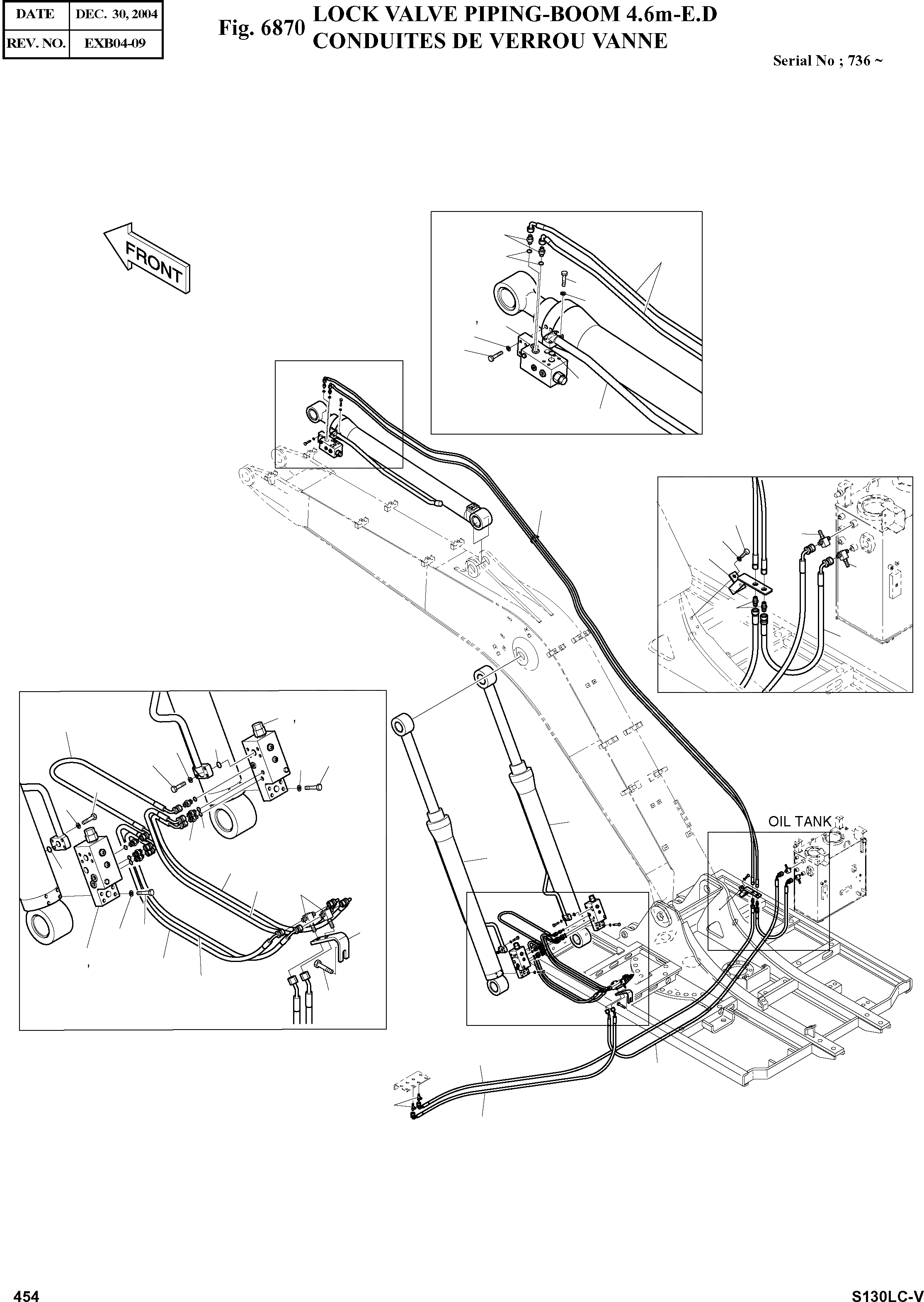

Запчасти Doosan Daewoo LOCK VALVE PIPING-BOOM 4.6M-E.D OPTION PARTS

-

400-00257

LOCK VALVE PIPING-4.6m BOOM

SERIAL: 736

-2шт.

1

420-00003A

VALVE;LOCK

desc: VANNE

3шт.

1A

K9000998

SEAL KIT

desc: . KIT DE JOINT

1шт.

2

2181-1126D14

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

3

S8000111

O-RING

desc: JONT TORIQUE

8шт.

4

2124-1084D2

CLIP;BAND

desc: ATTACHE

15шт.

6

S5110603

WASHER

desc: RONDELLE ELASTIQUE

24шт.

7

440-00064

CYLINDER;ARM

desc: VERIN DE BALANCIER

1шт.

8

S8000281

O-RING

desc: JONT TORIQUE

3шт.

11

195-00068

BRAKCET

desc: SUPPORT

1шт.

12

S0511953

BOLT M10X1.5X22

desc: BOULON A 6PANS

2шт.

13

181-00007

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

14

S0560953

BOLT M12X1.75X60

desc: BOULON A 6 PANS

1шт.

16

S2212666

BOLT;SOCKET M10X1.5X50

SERIAL: 736-901

24шт.

16

S2212666

BOLT;SOCKET M10X1.5X50

SERIAL: 902

16шт.

17

181-00008

TEE

desc: TE

2шт.

19

S2212566

BOLT;SOCKET M10X1.5X45

SERIAL: 902

8шт.

21

181-00086D2

TEE;CONECTOR

desc: TE

2шт.

22

DS2059383

HOSE PF1/4-800L

desc: TUYAU FLEXIBLE

1шт.

23

2184-1061D277

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

2шт.

25

2184-1036D405

HOSE PF1/4-5550L

desc: TUYAU FLEXIBLE

2шт.

26

2184-1036D25

HOSE PF3/8-2100L

desc: TUYAU FLEXIBLE

1шт.

27

2184-1076D54

HOSE PF3/8-2000L

desc: TUYAU FLEXIBLE

1шт.

28

DS2058208

HOSE PF3/8-1850L

desc: TUYAU FLEXIBLE

1шт.

29

2184-1076D10

HOSE PF3/8-800L

SERIAL: 736-901

1шт.

29

2184-1046D273

HOSE PF3/8-810L

SERIAL: 902

1шт.

32

2181-1951D21

TEE

desc: TE

2шт.

33

197-00068

BRACKET

desc: SUPPORT

1шт.

35

440-00113A

CYLINDER;BOOM(L.H)

desc: VERIN DE FLECHE

1шт.

36

440-00114A

CYLINDER;BOOM(R.H)

desc: VERIN DE FLECHE

1шт.

39

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

42

DS2059385

HOSE PF1/4-1250L

desc: TUYAU FLEXIBLE

2шт.

44

2181-1126D102

ADAPTER

desc: RACCORD ADAPTATEUR

6шт.
