Запчасти Doosan Daewoo BREAKER PIPING-PILOT OPTION PARTS

-

2400-2040

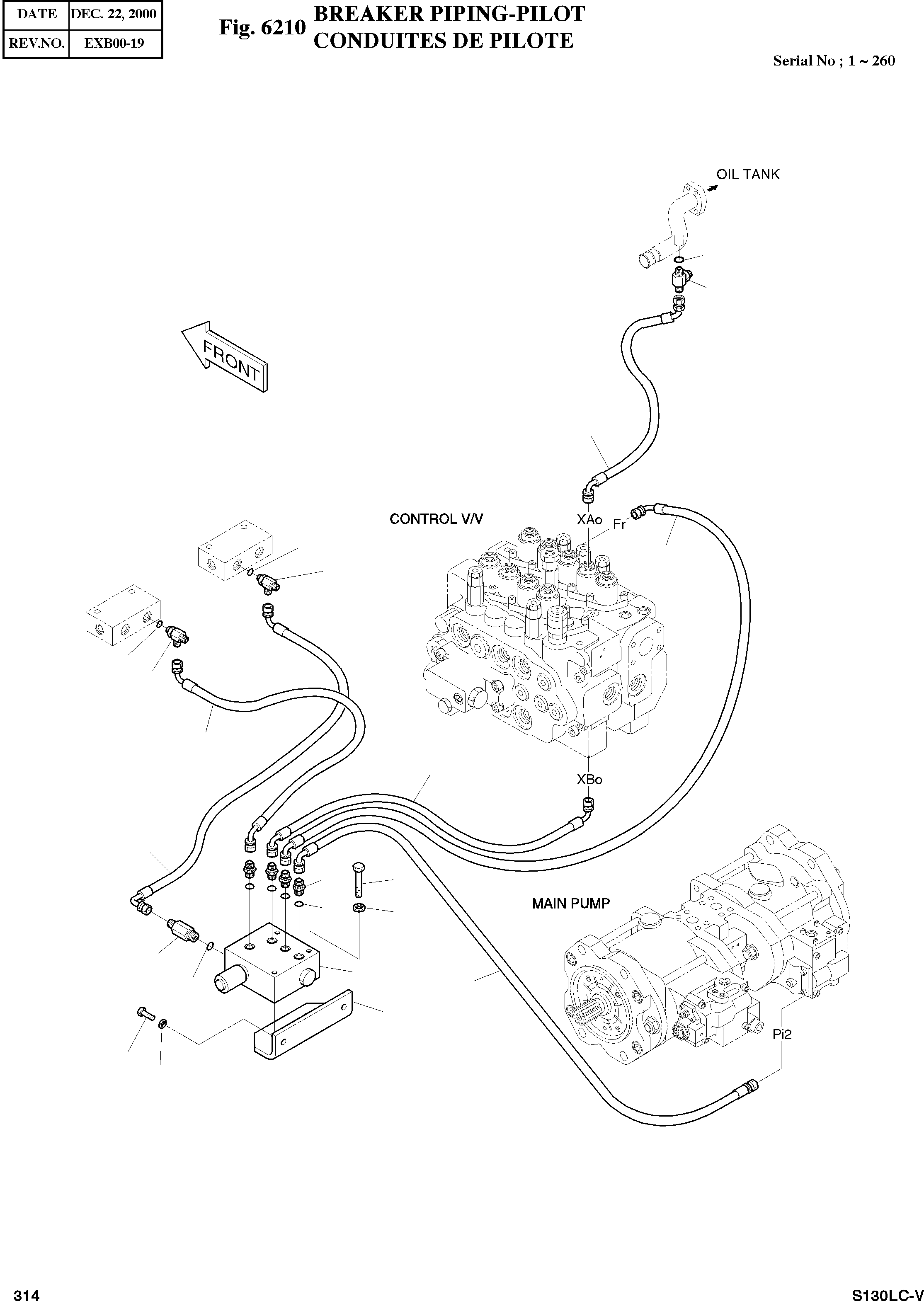

BREAKER PIPING-PILOT

SERIAL: 1-260

-2шт.

1

2420-9227A

BREAKER;VALVE

desc: SOUPAPE A SOLENOIDE

1шт.

2

2891-1403

PLATE

desc: PLAQUE

1шт.

3

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

4

S0558953

BOLT

desc: BOULON A 6 PANS

2шт.

5

S0512053

BOLT

desc: BOULON A 6 PANS

2шт.

6

S8000111

O-RING

desc: JOINT TORIQUE

5шт.

7

2181-1126D14

ADAPTER;S

desc: RACCORD ADAPTATEUR

4шт.

8

2181-1126D34

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

9

S8000141

O-RING

desc: JOINT TORIQUE

2шт.

10

2181-1951D6

TEE PFO-FP3/8-PF1/4

desc: TE

2шт.

11

2184-1061D247

HOSE

desc: TUYAU FLEXIBLE

1шт.

12

2184-1061D248

HOSE

desc: TUYAU FLEXIBLE

1шт.

13

2184-1046D176

HOSE

desc: TUYAU FLEXIBLE

1шт.

14

2184-1061D143

HOSE

desc: TUYAU FLEXIBLE

1шт.

15

2184-1061D47

HOSE

desc: TUYAU FLEXIBLE

1шт.

16

2181-2375D5

TEE

desc: TE

1шт.

17

2184-1061D224

HOSE

desc: TUYAU FLEXIBLE

1шт.

18

S8000181

O-RING

desc: JOINT TORIQUE

1шт.
