Запчасти Doosan Daewoo MAIN PIPING(3) BODY PARTS
24
42
2
25
24
22
3
22
20
19
19
19
22
23
25
39
24
20
25
19
20
23
22
24
20
5
4
-
2400-1800A

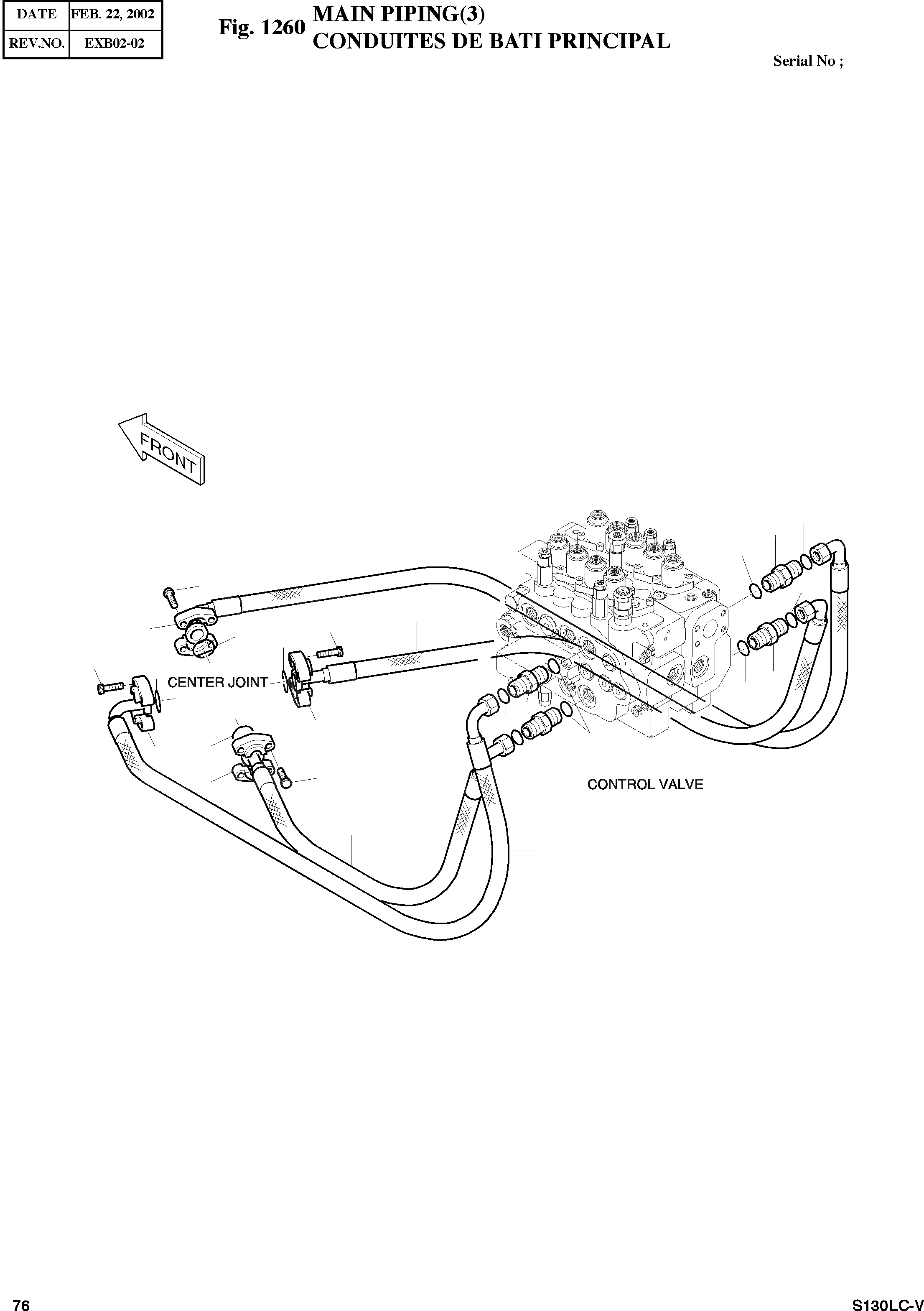

MAIN PIPING
SC: D
-2шт.
2
2184-1202D49
HOSE PF3/4-1550L
desc: TUYAU FLEXIBLE
1шт.
3
2184-1201D21
HOSE PF3/4-12550L
desc: TUYAU FLEXIBLE
1шт.
4
2184-1202D50
HOSE PF3/4-1400L
desc: TUYAU FLEXIBLE
1шт.
5
2184-1201D20
HOSE PF3/4-1050L
desc: TUYAU FLEXIBLE
1шт.
19
2180-1026D2
O-RING
desc: JOINT TORIQUE
4шт.
20
2181-9079
FLANGE;SPLIT
desc: FLASQUE EN DEUX PARTIES
8шт.
22
S2212061
BOLT;SOCKET M10X1.5X25
SERIAL: 1-711
16шт.
22
S2212066
BOLT;SOCKET M10X1.5X25
SERIAL: 712
16шт.
23
2181-2627D1
ADAPTER PFO3/4-PF3/4
desc: RACCORD ADAPTATEUR
2шт.
24
S8030121
O-RING
desc: JOINT TORIQUE
4шт.
25
S8000231
O-RING
desc: JOINT TORIQUE
4шт.
39
2181-2627D5
ADAPTER PFO3/4-PF3/4
desc: RACCORD ADAPTATEUR
1шт.
42
2181-2627D3
ADAPTER PFO3/4-PF3/4
desc: RACCORD ADAPTATEUR
1шт.
