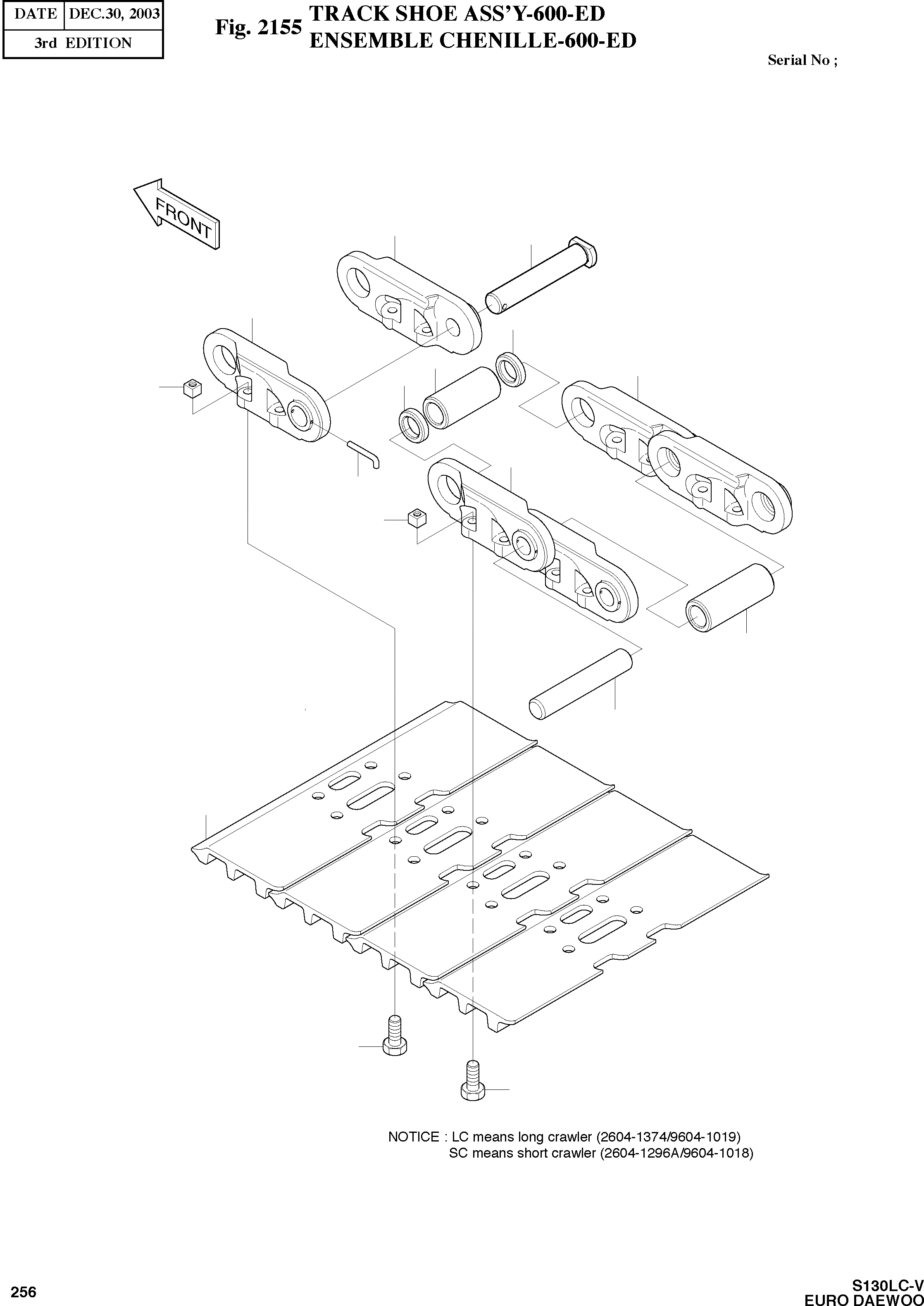

Запчасти Doosan Daewoo TRACK SHOE ASSY-600-ED TRACK PARTS

-

9273-6007D5

TRACK SHOE ASS'Y-600 (LC)

desc: ENSEMBLE CHENILLE

2шт.

-

9273-6007D2

TRACK SHOE ASS'Y-600 (SC)

desc: MAILLON

2шт.

1

9272-6017

LINK TRACK (RH) (LC)

desc: MAILLON

45шт.

1

9272-6017

LINK TRACK (RH) (SC)

desc: MAILLON

42шт.

2

9272-6016

LINK TRACK (LH) (LC)

desc: MAILLON

45шт.

2

9272-6016

LINK TRACK (LH) (SC)

desc: MAILLON

42шт.

3

9123-6009

PIN TRACK (LC)

desc: GOUJON

45шт.

3

9123-6009

PIN TRACK (SC)

desc: GOUJON

42шт.

4

9110-6004

BUSHING TRACK(LC)

desc: DOUILLE

45шт.

4

9110-6004

BUSHING TRACK(SC)

desc: DOUILLE

42шт.

5

9123-6010

PIN MASTER

desc: GOUPILLE

1шт.

6

9110-6005

BUSHING MASTER

desc: DOUILLE

1шт.

7

9114-6006

SPACER

desc: DOUILLE D'ESPACEMENT

2шт.

8

9272-6017

LINK MASTER (RH)

desc: MAILLON

1шт.

9

9272-6016

LINK MASTER (LH)

desc: MAILLON

1шт.

11

9120-6006D12

BOLT (LC) 5/8-18UNF

desc: BOULON A 6 PANS

184шт.

11

9120-6006D12

BOLT (SC) 5/8-18UNF

desc: BOULON A 6 PANS

172шт.

12

9121-6005D11

NUT (LC)

desc: ECROU

184шт.

12

9121-6005D11

NUT (SC)

desc: ECROU

172шт.

13

9273-7020

SHOE-600mm (LC)

desc: SABOT

46шт.

13

9273-7020

SHOE-600mm (SC)

desc: SABOT

43шт.

14

9272-6014D2

TRACK LINK ASS'Y (LC)

desc: ENSEMBLE MAILLON DE CHAINE

2шт.

15

9272-6014D1

TRACK LINK ASS'Y (SC)

desc: ENSEMBLE MAILLON DE CHAINE

2шт.
