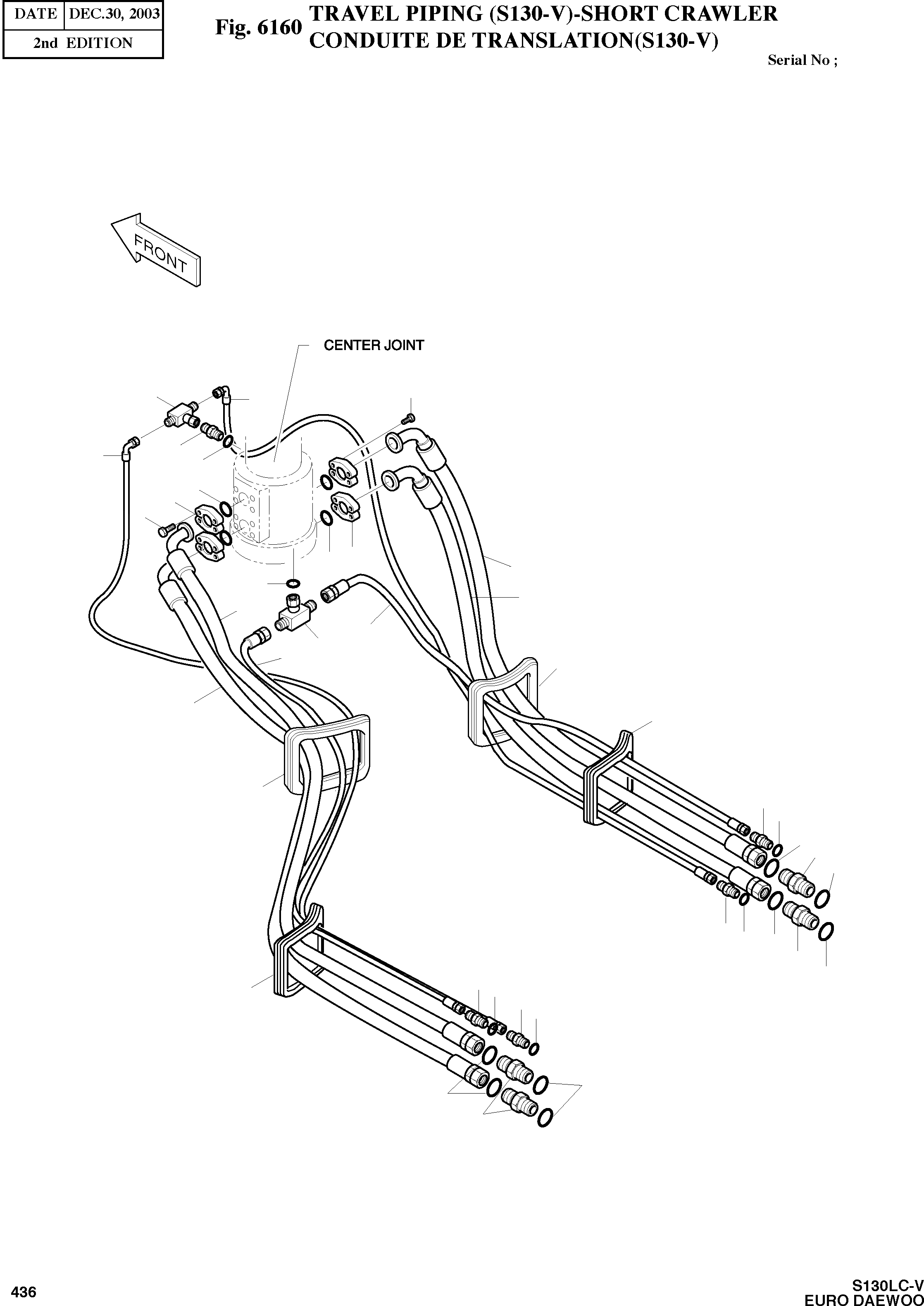

Запчасти Doosan Daewoo TRAVEL PIPING (S130-V)-SHORT CRAWLER OPTION PARTS

-

2400-1796A

PIPING; PROPELLING ASS'Y

SERIAL: 1-50120

-2шт.

-

2400-1917

PIPING; PROPELLING ASS'Y

SERIAL: 50121

-2шт.

1

2184-1222D18

HOSE 1650L-1 3/16 UNF

SERIAL: 1-50120

2шт.

1

2184-1222D13

HOSE 1750L-1 3/16-12

SERIAL: 50121

2шт.

2

2184-1222D19

HOSE 1700L-1 3/16 UNF

SERIAL: 1-50120

2шт.

2

2184-1222D2

HOSE 1800L-1 3/16-12

SERIAL: 50121

2шт.

3

2181-9081

FLANGE;SPLIT

desc: BRIDE

8шт.

4

S2215361

BOLT;SOCKET M12X1.75X35

desc: BOULON A 6 PANS CREUX

16шт.

5

2180-1026D19

O-RING

desc: JOINT TORIQUE

4шт.

6

2181-4133D5

ADAPTER PF 3/4-UNF1 3/16

desc: RACCORD

4шт.

7

S8000241

O-RING

desc: JOINT TORIQUE

4шт.

8

S8030121

O-RING

desc: JOINT TORIQUE

4шт.

9

2184-1060D70

HOSE 1/2-1700L

SERIAL: 1-50120

2шт.

9

2184-1060D160

HOSE 1/2-1810L

SERIAL: 50121

2шт.

10

2184-1060D144

HOSE 1/4-2000L

SERIAL: 1-50120

2шт.

10

2184-1060D161

HOSE 1/4-2110L

SERIAL: 50121

2шт.

11

2181-2281D10

TEE 3-PF1/2

desc: TE

1шт.

12

S8000181

O-RING

desc: JOINT TORIQUE

3шт.

13

2181-1126D6

ADAPTER

desc: RACCORD

2шт.

14

2181-1126D14

ADAPTER

desc: RACCORD

3шт.

15

S8000111

O-RING

desc: JOINT TORIQUE

3шт.

16

2181-4125

TEE

desc: TE

1шт.

17

2160-1322D2

BUSHING;RUBBER

desc: GARNISSAGE

4шт.
