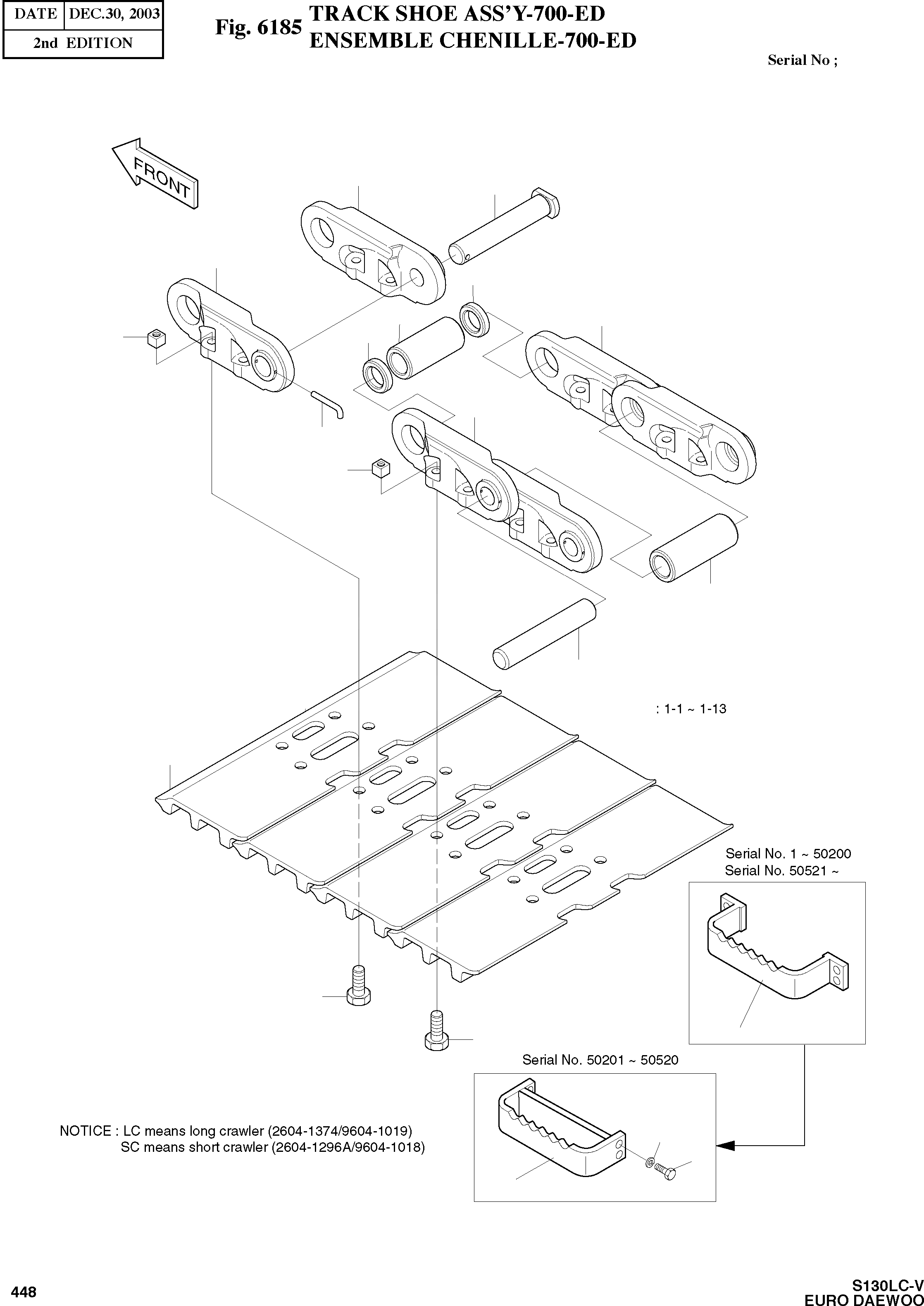

Запчасти Doosan Daewoo TRACK SHOE ASSY-700-ED OPTION PARTS

1

9273-6007D6

TRACK SHOE ASS'Y 700 (LC)

desc: ENSEMBLE CHENILLE

2шт.

1

9273-6007D3

TRACK SHOE ASS'Y 700 (SC)

desc: ENSEMBLE CHENILLE

2шт.

1-1

9272-6017

LINK;TRACK (R.H) (LC)

desc: . MAILLON

45шт.

1-1

9272-6017

LINK;TRACK (R.H) (SC)

desc: . MAILLON

42шт.

1-2

9272-6016

LINK;TRACK(R.H) (LC)

desc: . MAILLON

45шт.

1-2

9272-6016

LINK;TRACK(L.H) (SC)

desc: . PIECE DE JONCTION

42шт.

1-3

9123-6009

PIN;TRACK (LC)

desc: . GOUJON

45шт.

1-3

9123-6009

PIN;TRACK (SC)

desc: . GOUJON

42шт.

1-4

9110-6004

BUSHING;TRACK (LC)

desc: . MANCHON

45шт.

1-4

9110-6004

BUSHING;TRACK (SC)

desc: . MANCHON

42шт.

1-5

9123-6010

PIN;MASTER

desc: . GOUPILLE

1шт.

1-6

9110-6005

BUSHING;MASTER

desc: . DOUILLE

1шт.

1-7

9114-6006

SPACER

desc: . DOUILLE D'ESPACEMENT

2шт.

1-8

9272-6017

LINK;MASTER(R.H)

desc: . MAILLON PRINCIPAL(DROIT)

1шт.

1-9

9272-6016

LINK;MASTER(L.H)

desc: . MAILLON PRINCIPAL(GAUCHE)

1шт.

1-11

9120-6006D12

BOLT 5/8-18UNF(LC)

desc: . BOULON A 6 PANS

184шт.

1-11

9120-6006D12

BOLT 5/8-18UNF(RC)

desc: . BOULON A 6 PANS

172шт.

1-12

9121-6005D11

NUT 5/8-18UNF (LC)

desc: . ECROU

184шт.

1-12

9121-6005D11

NUT 5/8-18UNF(SC)

desc: . ECROU

172шт.

1-13

9273-7021

SHOE 700mm(LC)

desc: . SABOT

46шт.

1-13

9273-7021

SHOE 700mm(SC)

desc: . SABOT

43шт.

2

2195-2527D7

STEP;BRACKET

SERIAL: 1-50200

4шт.

2

2625-1220D3

STEP;BRACKET

SERIAL: 50201-50520

4шт.

2

2195-2527AD7

STEP;BRACKET

SERIAL: 50521

4шт.

3

S0558253

BOLT M10X1.5X35

SERIAL: 50201-50520

16шт.

3

S0515353

BOLT M12X35

SERIAL: 50521

16шт.

4

S5102603

WASHER; SPRING

SERIAL: 50201-50520

16шт.

4

S5102703

WASHER; SPRING M12

SERIAL: 50521

16шт.

*

9272-6014D2

TRACK LINK ASS'Y(LC)

desc: ENSEMBLE MAILLON DE CHAINE

1шт.

*

9272-6014D1

TRACK LINK ASS'YSC)

desc: ENSEMBLE MAILLON DE CHAINE

1шт.
