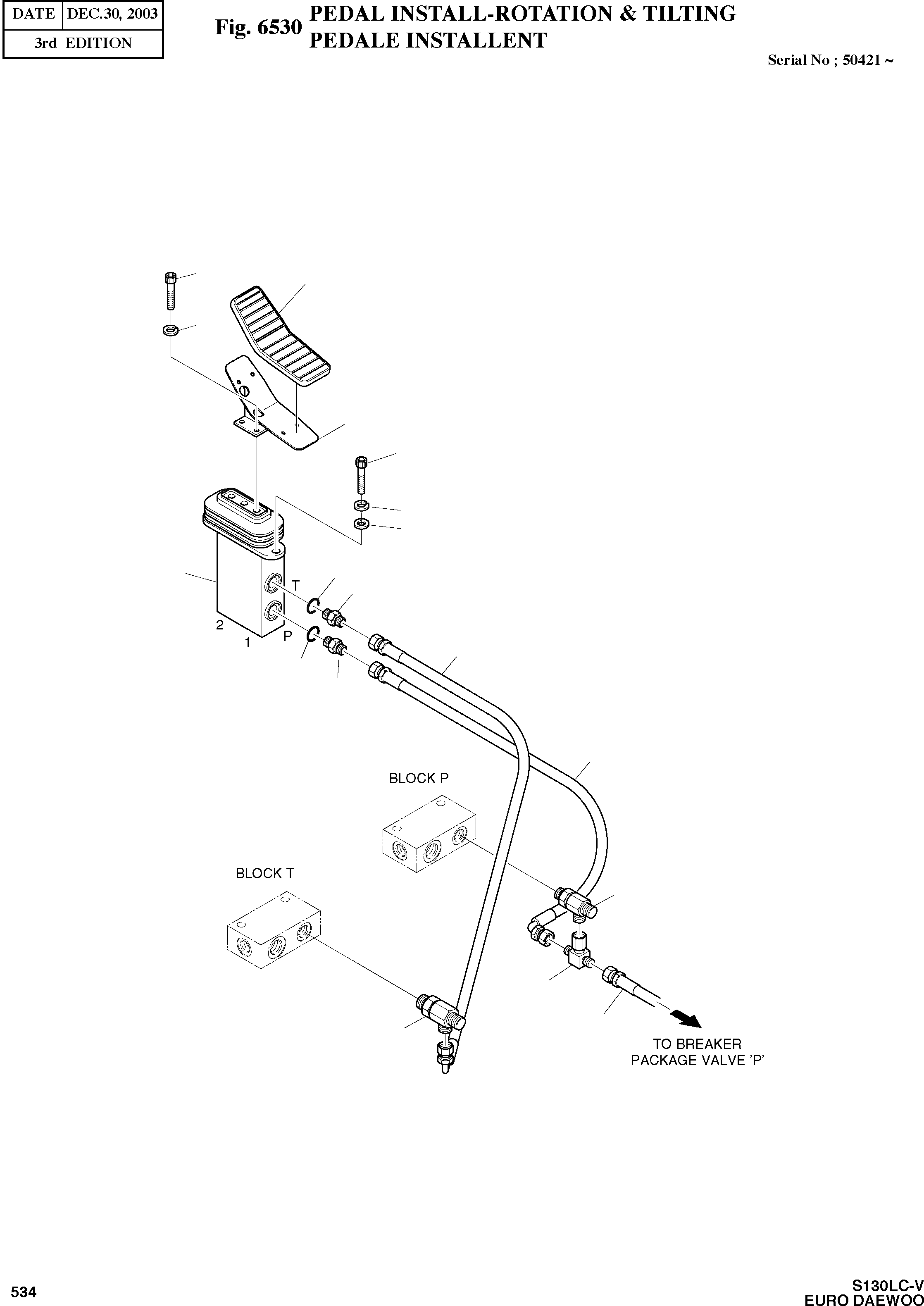

Запчасти Doosan Daewoo PEDAL INSTALL-ROTATION & TILTING OPTION PARTS

-

134-00022

PEDAL INSTALL-ROTATION & TILTING

SERIAL: 50421

-2шт.

1

420-00160

VALVE;PEDAL

desc: VANNE

1шт.

1

420-00347

VALVE;PEDAL

desc: VANNE

1шт.

2

2184-1046D126

HOSE;PF1/4-450L

desc: TUYAU FLEXIBLE

1шт.

3

2184-1046D131

HOSE;PF1/4-560L

desc: TUYAU FLEXIBLE

1шт.

4

2181-1951D19

TEE;PFO1/2-PF1/2-PF1/4

desc: TE

1шт.

5

S2212261

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

2шт.

6

S5110601

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

7

S5010613

WASHER;PLAIN

desc: RONDELLE PLATE

2шт.

8

S2211861

BOLT;SOCKET M10X1.5X20

desc: BOULON A 6PANS

2шт.

9

2197-1817

BRACKET;PEDAL(R.H)

desc: SUPPORT

1шт.

10

2161-2257

RUBBER;PEDAL

desc: CAOUTCHOUC

1шт.

11

2181-1126D14

ADAPTER;PFO1/4-PF1/4

desc: ADAPTEUR

2шт.

12

S8000111

O-RING

desc: JONT TORIQUE

2шт.

13

2181-1951D6

TEE;PFO3/8-PF3/8-PF1/4

desc: TE

1шт.

14

2181-4125

TEE;PFO1/4-PF1/4

desc: TE

1шт.

15

2184-1046D61

HOSE;PF1/4-1750L

desc: TUYAU FLEXIBLE

1шт.
