Запчасти Doosan Daewoo MAIN PIPING-ARTI.BOOM OPTION PARTS

-

9400-1175

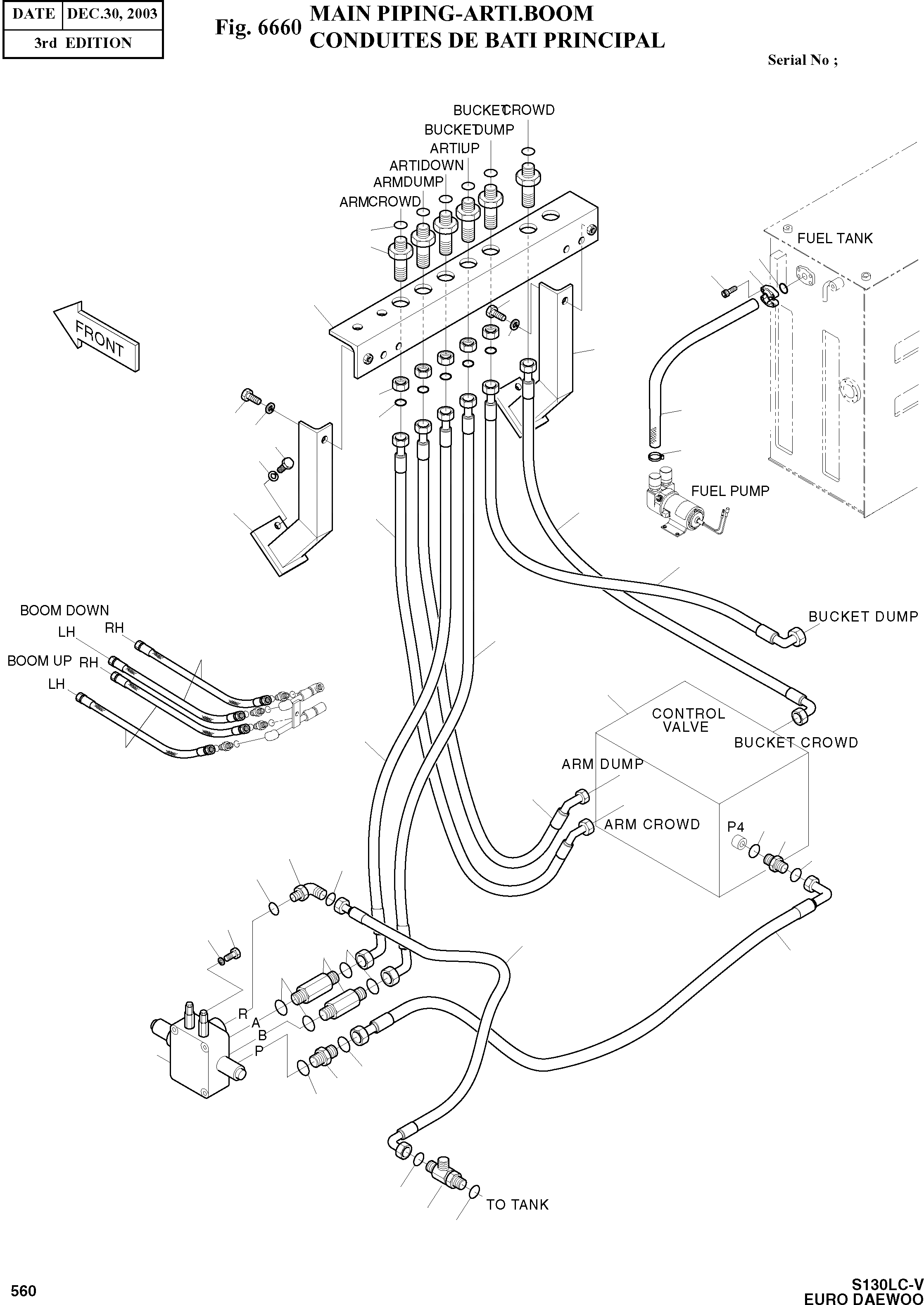

MAIN PIPING-ARTI

SC: D

-2шт.

1

2420-9365

VALVE;CONTROL

desc: VANNE

1шт.

2

S0559253

BOLT M10X1.5X85

desc: BOULON A 6PANS

3шт.

3

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

7шт.

4

2181-2627D1

ADAPTER

desc: ADAPTEUR

2шт.

5

S8000231

O-RING

desc: JOINT TORIQUE

5шт.

6

S8030121

O-RING

desc: JOINT TORIQUE

19шт.

7

2181-2294D6

ELBOW

desc: COUDE

1шт.

8

S8000291

O-RING

desc: JOINT TORIQUE

1шт.

9

2181-2627D11

ADAPTER

desc: ADAPTEUR

2шт.

10

181-00371D1

TEE;AIR & HYDR. LINE

desc: TE

1шт.

12

195-01624

SUPPORT;LH

desc: SUPPORT

1шт.

13

195-01625

SUPPORT;RH

desc: SUPPORT

1шт.

14

9195-1290

BRACKET;ARTI

desc: SUPPORT

1шт.

15

S0512253

BOLT M10X1.5X30

desc: BOULON A 6PANS

4шт.

16

S0515353

BOLT M12X1.75X35

desc: BOULON A 6PANS

2шт.

17

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

18

DS2415007

ADAPTER

desc: ADAPTEUR

6шт.

19

121-00010D8

NUT

desc: ECROU

6шт.

20

9184-1052D17

HOSE

desc: TUYAU FLEXIBLE

1шт.

21

2184-1212D62

HOSE

desc: TUYAU FLEXIBLE

1шт.

22

9184-1052D18

HOSE

desc: TUYAU FLEXIBLE

1шт.

23

2184-1197D57

HOSE

desc: TUYAU FLEXIBLE

1шт.

24

2184-1197D83

HOSE

desc: TUYAU FLEXIBLE

1шт.

25

2184-1197D43

HOSE

desc: TUYAU FLEXIBLE

1шт.

26

2184-1197D25

HOSE

desc: TUYAU FLEXIBLE

2шт.

27

9184-1066

HOSE

desc: TUYAU FLEXIBLE

1шт.

28

S8450013

CLAMP;HOSE

desc: COLLIER

1шт.

29

2181-9079

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

2шт.

30

S2212266

BOLT;SOCKET

desc: BOULON A 6PANS CREUX

4шт.

31

2180-1026D2

O-RING

desc: JOINT TORIQUE

1шт.

32

DS2011231

HOSE

desc: TUYAU FLEXIBLE

2шт.

33

DS2011232

HOSE

desc: TUYAU FLEXIBLE

2шт.
