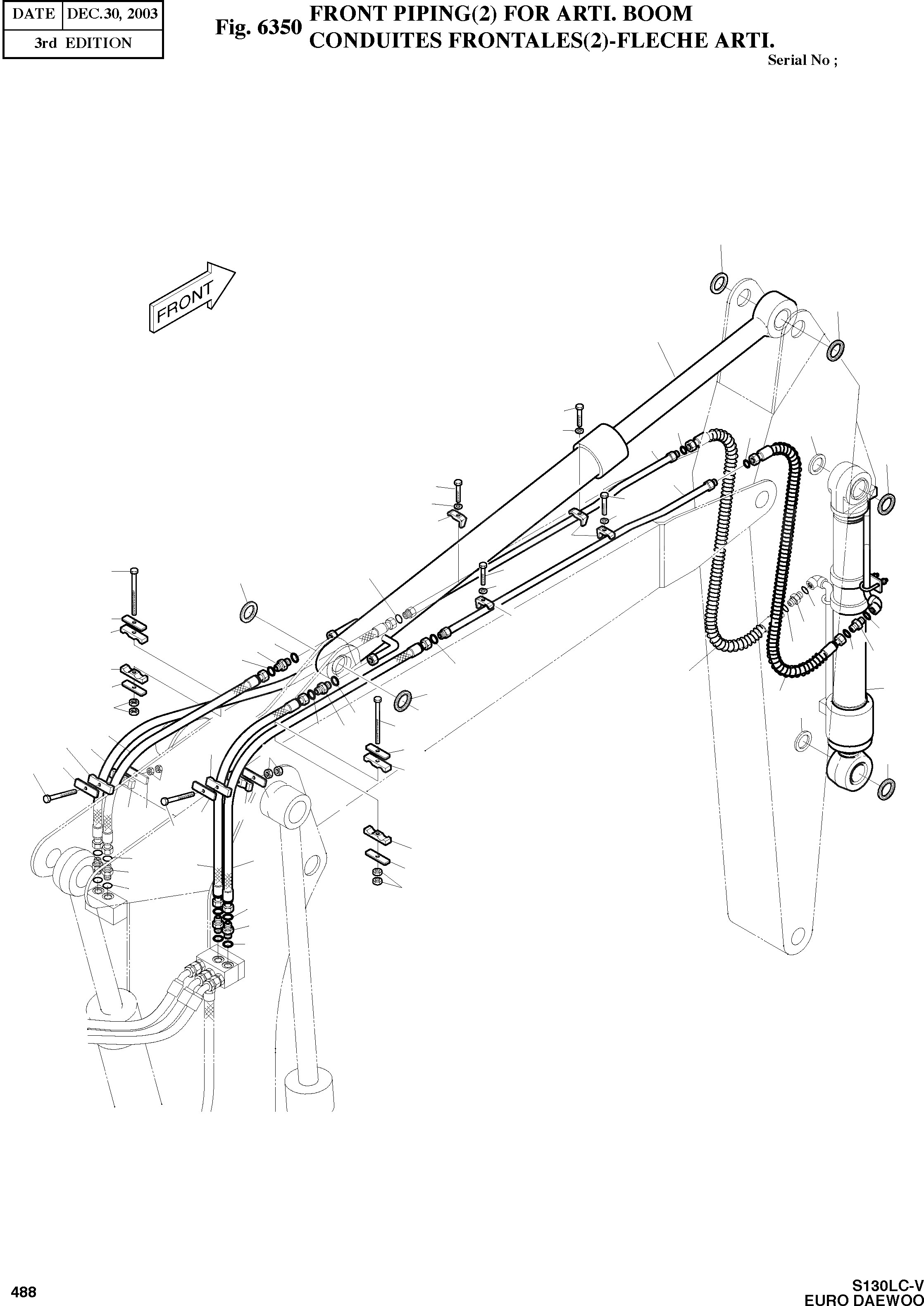

Запчасти Doosan Daewoo FRONT PIPING(2) FOR ARTI. BOOM OPTION PARTS

-

2400-1417F1

FRONT PIPING(2);ARTI. BOOM

desc: CONDUITES FRONTALES

-2шт.

1

2183-3427

PIPE

desc: TUYAU

2шт.

5

2124-1026D2

CLAMP;PIPE

desc: COLLIER

4шт.

6

S5102703

WASHER;SPRING M12

desc: RONDELLE GROWER

4шт.

7

S0560753

BOLT M12X1.75X50

desc: BOULON A 6 PANS

4шт.

8

2184-1196D11

HOSE-2150L

desc: TUYAU FLEXIBLE

2шт.

11

2124-1226

CLAMP

desc: COLLIER

8шт.

13

S0559553

BOLT M10x1.25X100

desc: BOULON A 6 PANS

4шт.

14

S4012633

NUT M10X1.5

desc: ECROU

8шт.

41

S8000241

O-RING

desc: JOINT TORIQUE

8шт.

45

2191-4291

PLATE

desc: PLAQUE

12шт.

49

2184-1196D5

HOSE-1450L

desc: TUYAU FLEXIBLE

2шт.

50

2181-4133D5

ADAPTER

desc: RACCORD

8шт.

55

2440-9126

CYLINDER;ARM

desc: VERIN DE BALANCIER

1шт.

56

2440-9127

CYLINDER;BUCKET

desc: VERIN DE GODET

1шт.

57

2184-1196D10

HOSE-1700L

desc: TUYAU FLEXIBLE

2шт.

62

2180-1106D4

DUST SEAL

desc: PARE-POUSSIERES

8шт.

64

S8030121

O-RING

desc: JOINT TORIQUE

12шт.
