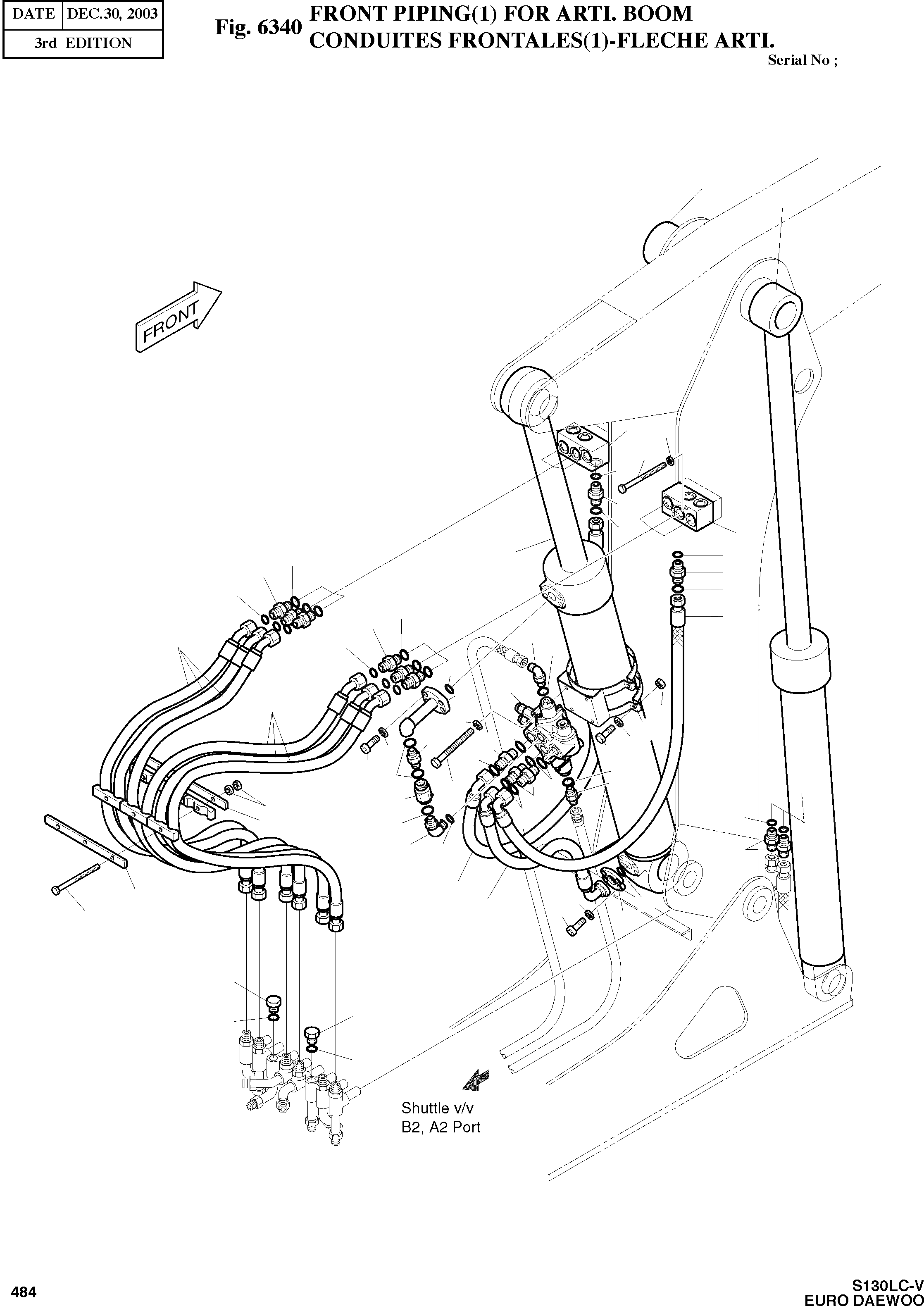

Запчасти Doosan Daewoo FRONT PIPING(1) FOR ARTI. BOOM OPTION PARTS

-

2400-1417F1

FRONT PIPING(1);ARTI. BOOM

desc: CONDUITES FRONTALES

-2шт.

9

2181-1950D5

PLUG PF3/4

desc: BOUCHON

2шт.

11

2124-1226

CLAMP

desc: COLLIER

18шт.

13

S0559553

BOLT M10x1.5X100

desc: BOULON A 6 PANS

9шт.

14

S4012633

NUT M10X1.5

desc: ECROU

22шт.

16

S5110601

WASHER;SPRING M10

desc: RONDELLE GROWER

8шт.

17

2184-1212D3

HOSE-1900L

desc: TUYAU FLEXIBLE

6шт.

18

2184-1197D4

HOSE-1100L

desc: TUYAU FLEXIBLE

2шт.

19

2423-1435

BLOCK

desc: BLOC

1шт.

22

2423-1436

BLOCK

desc: BLOC

1шт.

23

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWER

11шт.

24

2420-9365

VALVE; CONTROL

desc: VANNE

1шт.

25

S0759353

BOLT M10X1.25X90

desc: BOULON A 6 PANS

7шт.

26

2195-4410

BRACKET

desc: SUPPORT

1шт.

27

S0512353

BOLT M10X1.5X35

desc: BOULON A 6 PANS

4шт.

28

2183-3842A

PIPE

desc: TUYAU

1шт.

29

S2212361

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX

4шт.

30

2181-1702D4

ELBOW;PF0-PF1/2

desc: COUDE

1шт.

31

2181-2421

ELBOW;PF 3/4

desc: COUDE

1шт.

33

2181-4133D12

ADAPTER

desc: RACCORD

1шт.

35

2181-1126D14

ADAPTER

desc: RACCORD

1шт.

36

2184-1202D25

HOSE-630L

desc: TUYAU FLEXIBLE

1шт.

37

2181-9079

FLANGE;SPLIT 3/4 SAE

desc: FLASQUE EN DEUX

2шт.

38

S2212261

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

4шт.

39

2180-1026D2

O-RING

desc: JOINT TORIQUE

1шт.

40

S8010301

O-RING

desc: JOINT TORIQUE

1шт.

41

S8000241

O-RING

desc: JOINT TORIQUE

16шт.

42

S8000111

O-RING

desc: JOINT TORIQUE

2шт.

43

S8000291

O-RING

desc: JOINT TORIQUE

1шт.

44

2191-4290

PLATE

desc: PLAQUE

2шт.

47

2420-9101A

VALVE;SLOW RETURN

desc: VANNE

1шт.

50

2181-4133D5

ADAPTER

desc: RACCORD

18шт.

51

2181-1126D6

ADAPTER

desc: RACCORD

4шт.

52

2440-9097

CYLINDER; ARTI. BOOM

desc: VERIN

1шт.

53

2440-9132A

CYLINDER;BOOM( R.H.)

desc: VERIN DE FLECHE (DROIT)

1шт.

54

2440-9133A

CYLINDER;BOOM( L.H.)

desc: VERIN DE FLECHE (GAUCHE)

1шт.

58

2181-1938D11

ADAPTER

desc: RACCORD

1шт.

64

S8030121

O-RING

desc: JOINT TORIQUE

11шт.

66

S8000181

O-RING

desc: JOINT TORIQUE

4шт.
