Запчасти Doosan Daewoo 1/2 WAY PIP. - PILOT PIP. (DOUBLE LINE) - E3C OPTION PARTS

-

602C1305

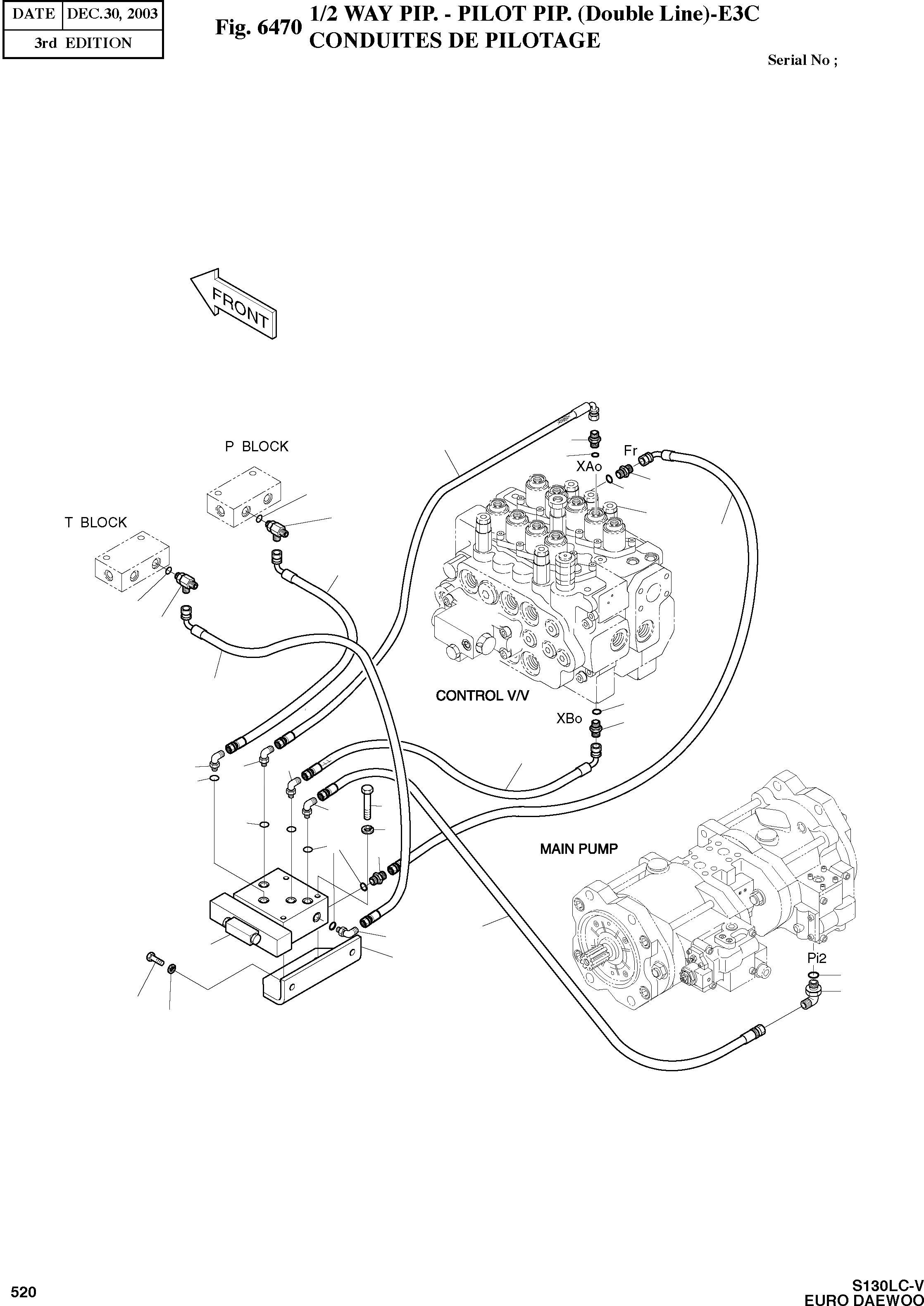

1/2 WAY PIP. - PILOT PIP. (Double Line)

desc: CONDUITES DE PILOTAGE

-2шт.

1

420D9616

VALVE;MULTI

desc: VANNE

1шт.

2

891D1404

PLATE

desc: PLAQUE

1шт.

3

S0512063

BOLT M10X1.5X25

desc: BOULON A 6 PANS

2шт.

4

S0559163

BOLT M10X1.5X80

desc: BOULON A 6 PANS

2шт.

5

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWER

4шт.

6

181D1126D14

ADAPTER;PF(0)-PF1/4

desc: RACCORD

2шт.

7

181D1126D36

ADAPTER;PF(0) 3/8-PF1/4

desc: RACCORD

2шт.

8

181D1702D4

ELBOW; PF(0) - PF1/4

desc: COUDE

6шт.

9

181D1951D6

TEE;PF(0)-PF3/8-PF1/4

desc: TE

2шт.

10

S8000111

O-RING

desc: JOINT TORIQUE

8шт.

11

S8000141

O-RING

desc: JOINT TORIQUE

4шт.

12

184D0036D185

HOSE 1/4

desc: TUYAU FLEXIBLE

1шт.

13

184D0036D175

HOSE 1/4

desc: TUYAU FLEXIBLE

2шт.

14

184D0036D110

HOSE 1/4

desc: TUYAU FLEXIBLE

1шт.

15

184D0026D235

HOSE 1/4

desc: TUYAU FLEXIBLE

1шт.

16

184D0036D140

HOSE 1/4

desc: TUYAU FLEXIBLE

1шт.

17

2420-1228

VALVE;RELIEF

SERIAL: 1-50490

2шт.

17

2420-6600

VALVE;RELIEF

SERIAL: 50491

2шт.
