Запчасти Doosan Daewoo 1/2 WAY PIP. - HYDRAULIC CONTROL - ED OPTION PARTS

-

612C1305

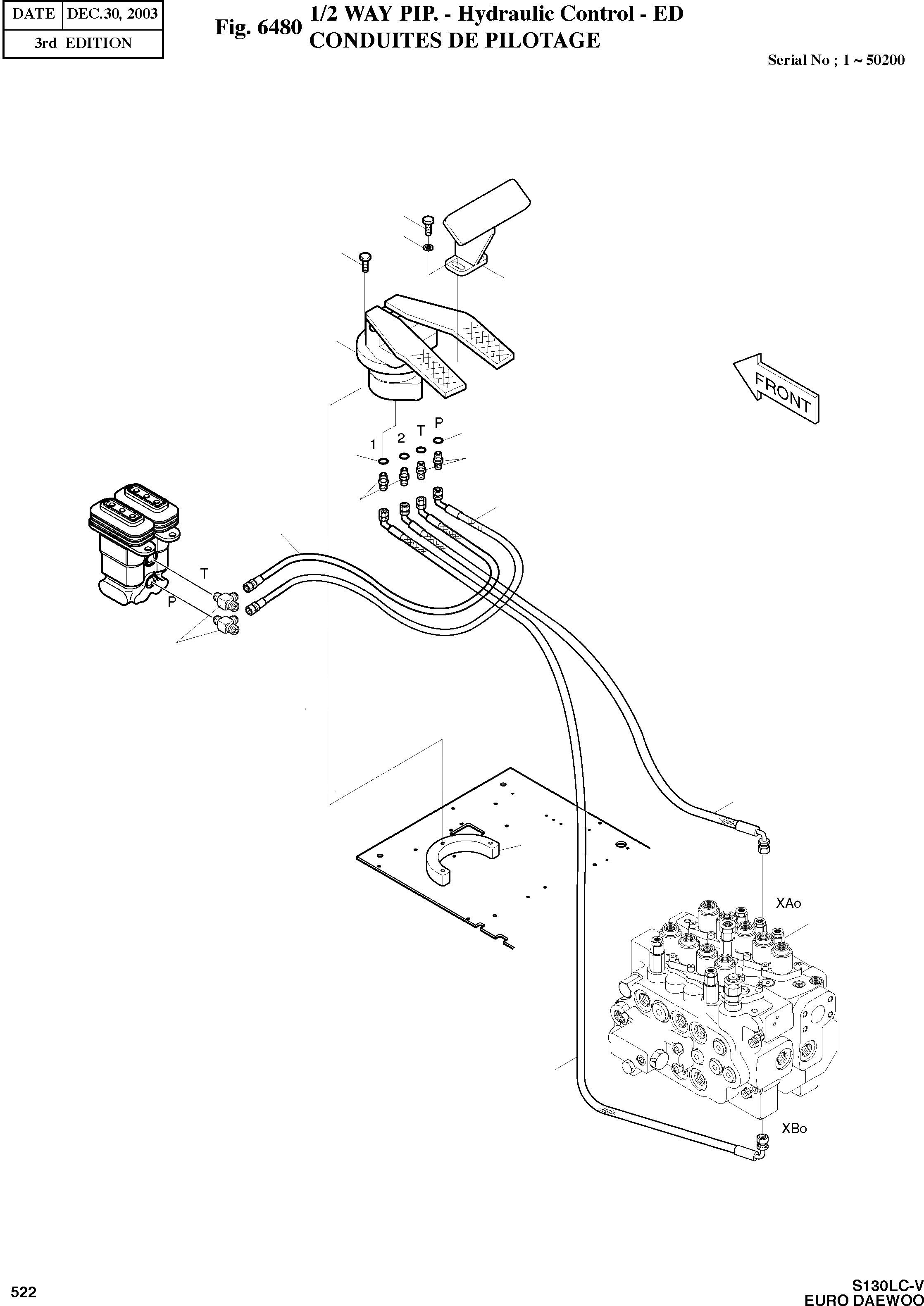

1/2 WAY PIP. - Hydraulic Control - ED

SERIAL: 1-50200

-2шт.

1

420D9412

VALVE;PEDAL

desc: VANNE (PEDALE)

1шт.

2

181D1126D14

ADAPTER;PF(0)-PF1/4

desc: RACCORD

2шт.

3

191D1126D34

ADAPTER;LONG PF(0)-PF1/4

desc: RACCORD

2шт.

4

181D3001D1

TEE;UNION PF(U)-PF-PF1/4

desc: TE

2шт.

5

195D1135

BRACKET;STEP

desc: POSE-PIED

1шт.

6

195D9412

SEAT;STEP

desc: ASSISE

1шт.

7

S0509063

BOLT M8X1.25X25

desc: BOULON A 6 PANS

2шт.

8

S2205261

BOLT SOCKET M6X1.0X30

desc: BOULON A 6 PANS

3шт.

9

S5102503

WASHER SPRING M8

desc: RONDELLE GROWER

2шт.

10

S8180221

SEAL RING

desc: JOINT

4шт.

11

184D0036D40

HOSE 1/4

desc: TUYAU FLEXIBLE

2шт.

12

184D0096D260

HOSE 1/4

desc: TUYAU FLEXIBLE

1шт.

13

184D0097D230

HOSE 1/4

desc: TUYAU FLEXIBLE

1шт.

14

2420-1228

VALVE;RELIEF

SERIAL: 1-50490

2шт.

14

2420-6600

VALVE;RELIEF

SERIAL: 50491

2шт.
