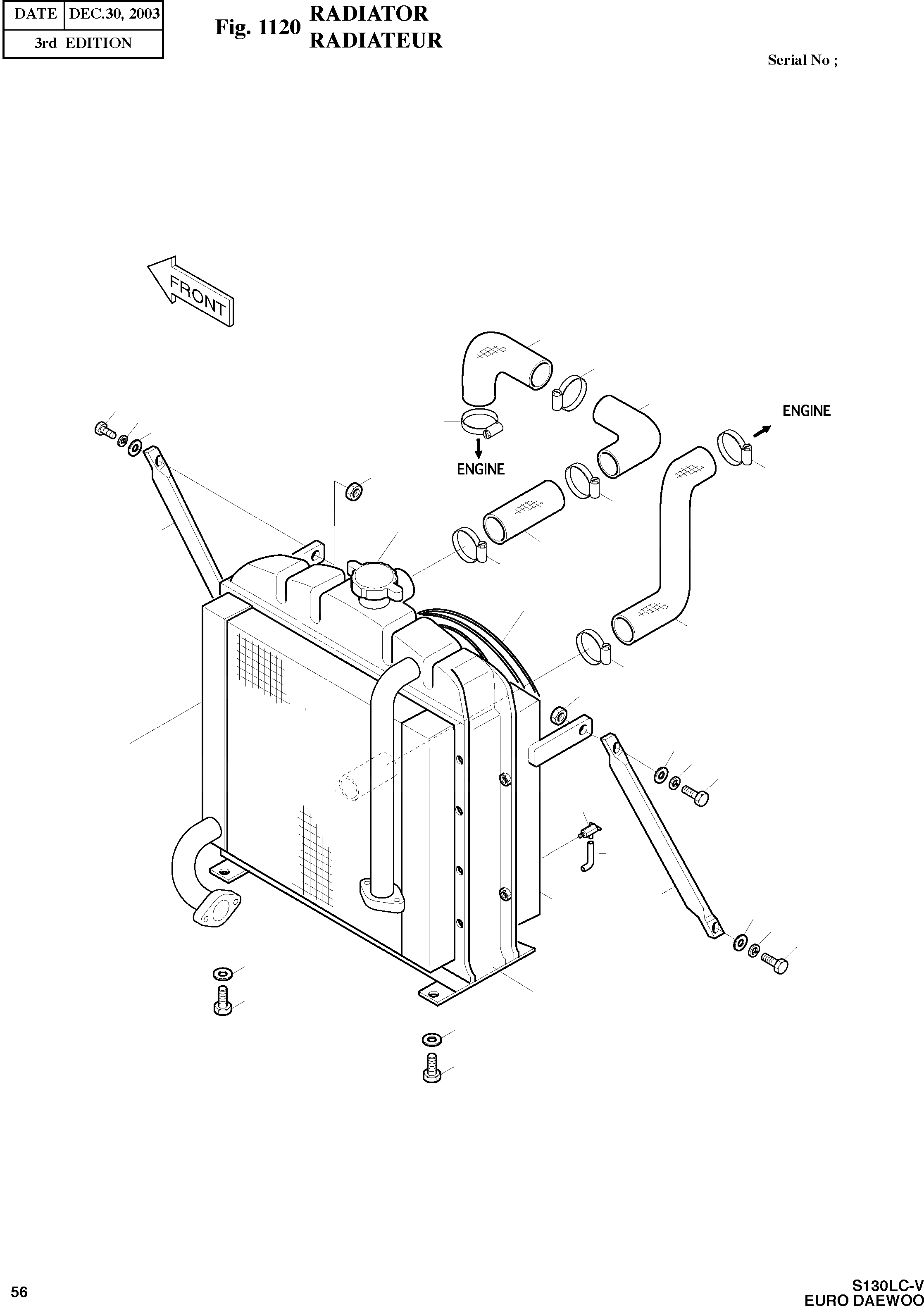

Запчасти Doosan Daewoo RADIATOR BODY PARTS

-

2201-1070A

ENGINE ASS'Y

SC: D

-2шт.

2

2202-9064A

RADIATOR

SERIAL: 1-50150

1шт.

2

2202-9064B

RADIATOR

SERIAL: 50151-50520

1шт.

2

2202-9064C

RADIATOR

SERIAL: 50521

1шт.

2-1

2202-9064A-1

RADIATOR

desc: . RADIATEUR

1шт.

2-2

2202-9064A-2

OIL COOLER

desc: . REFRIGERATOR

1шт.

2-4

13C20000-4

SHROUD ASS'Y

SERIAL: 1-50520

1шт.

2-4

13C24000A

SHROUD ASS'Y

SERIAL: 50521

1шт.

2-5

13C20000-5

FAN GUARD

SERIAL: 1-50520

1шт.

2-5

13C25000A

FAN GUARD

SERIAL: 50521

1шт.

2-6

P06

CAP

desc: . BOUCHON

1шт.

2-7

P04

DRAIN COCK

desc: . ROBINET DE PURGE

1шт.

2-8

P03-2

DRAIN HOSE

desc: . TUYAU FLEXIBLE

1шт.

2-9

13C26000

NET;WIRE

desc: . CABLE

2шт.

3

S0565151

BOLT M16X2.0X45

desc: BOULON A 6 PANS

4шт.

4

S5102901

WASHER;SPRING M16

desc: RONDELLE GROWER

4шт.

5

2114-1816

WASHER HARD

desc: RONDELLE

4шт.

6

2623-1044B

STAY

SERIAL: 1-50150

2шт.

6

2623-1044C

STAY

SERIAL: 50151

2шт.

7

S0521351

BOLTM16X2.0X35

desc: BOULON A 6 PANS

4шт.

15

2185-1316

HOSE;WATER

desc: FLEXIBLE D'EAU

1шт.

16

S8450053

CLAMP;HOSE

desc: COLLIER

6шт.

17

2182-1652

PIPE;WATER

desc: TUYAU

1шт.

18

2185-1680

HOSE;WATER

desc: TUYAU FLEXIBLE

1шт.

19

2185-1651A

HOSE;WATER

desc: TUYAU FLEXIBLE

1шт.

45

S5010913

PLAIN WASHER M16

desc: RONDELLE PLATE

4шт.

46

S4012933

NUT M16X2.0

desc: ECROU

2шт.
