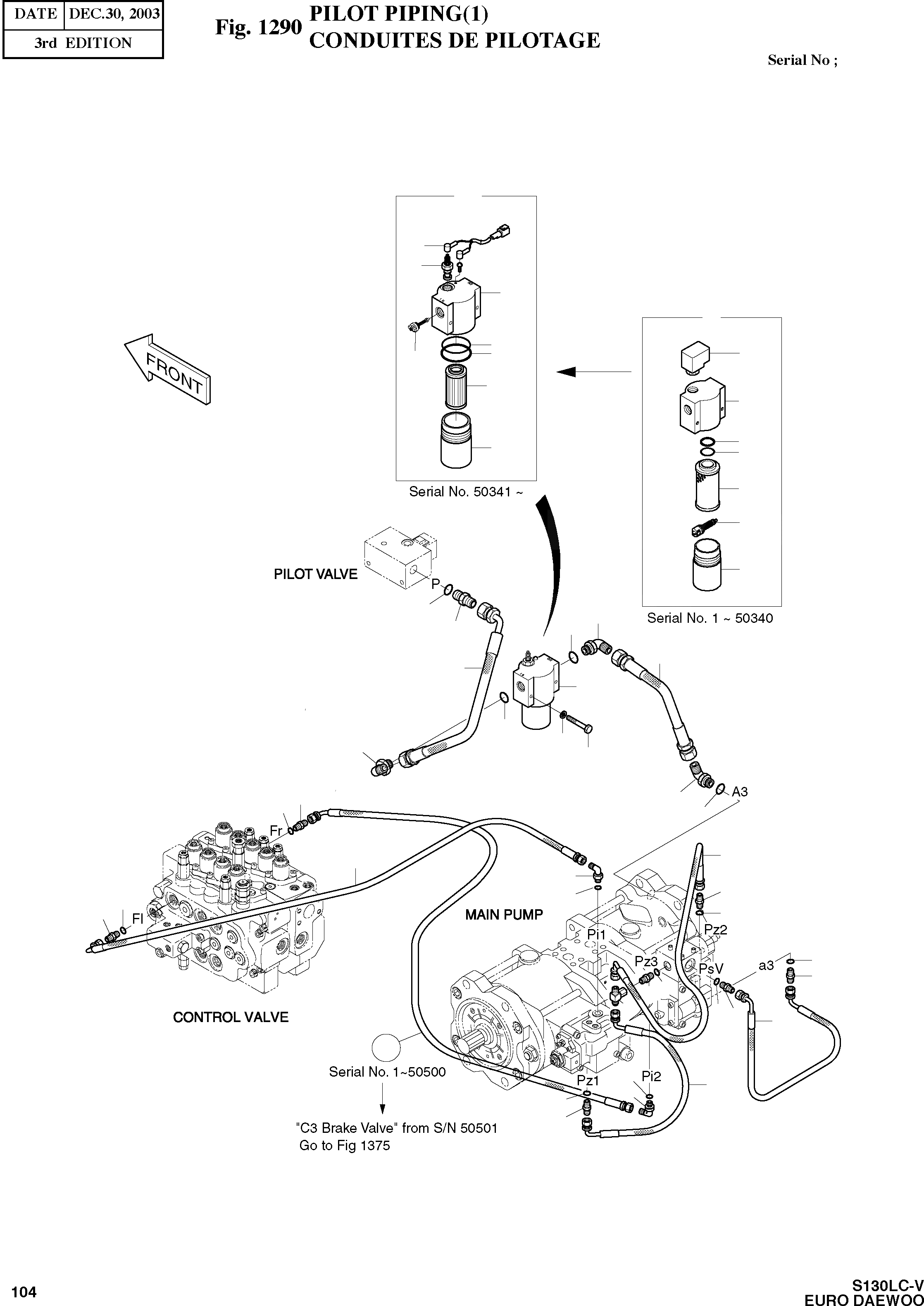

Запчасти Doosan Daewoo PILOT PIPING(1) BODY PARTS

-

9400-1118A

PILOT PIPING

SC: D

-2шт.

1

2471-9026

FILTER

SERIAL: 1-50340

1шт.

1A

Y-3738-01

BODY

SC: D

1шт.

1B

Y-3738-02

VALVE ASS'Y

desc: . VANNE

1шт.

1C

2474-9041

ELEMENT

desc: . ELEMENT FILTRANT

1шт.

1D

Y-3738-04

O-RING

desc: . JOINT TORIQUE

1шт.

1E

Y-3738-05

RING;BACK-UP

desc: . ANNEAU DE SOUTIEN

1шт.

1F

2472-7003

CASE

desc: . CANISTER

1шт.

1G

Y-4117

ELECTRIC INDICATOR

desc: . INDICATEUR

1шт.

1

2471-1153

FILTER;PILOT

SERIAL: 50341

1шт.

1A

-

HEAD

SC: D

1шт.

1B

2472-7003

CASE

SC: D

1шт.

1C

2471-1154

ELEMENT;PILOT FILTER

desc: . ELEMENT FILTRANT

1шт.

1D

2426-1237

VALVE; BY-PASS

desc: . VANNE

1шт.

1E

2471-1155

INDICATOR

desc: . INDICATEUR

1шт.

1F

Y-3738-04

O-RING

desc: . JOINT TORIQUE

1шт.

1G

Y-3738-05

RING;BACK-UP

desc: . BAGUE

1шт.

1H

2530-1735

HARNESS;PILOT FILTER

desc: . FAISCEAU

1шт.

2

S0553753

BOLT M6X55

desc: BOULON A 6 PANS

2шт.

3

S5102303

WASHER;SPRING M6

desc: RONDELLE GROWER

2шт.

5

S8000181

O-RING

desc: JOINT TORIQUE

4шт.

7

2181-4125

TEE-3PF1/4

desc: TE

1шт.

8

S8000141

O-RING

desc: JOINT TORIQUE

1шт.

11

2181-1702D2

ELBOW PFO PF1/2

desc: COUDE

2шт.

13

S8000111

O-RING

desc: JOINT TORIQUE

8шт.

14

2181-1126D14

ADAPTER PFO1/4-PF1/4

SERIAL: 1-50340

7шт.

14

2181-1126D14

ADAPTER PFO1/4-PF1/4

SERIAL: 50341

6шт.

21

2181-1126D6

ADAPTER PFO1/2-PF1/2

desc: RACCORD

1шт.

41

2181-1702D4

ELBOW PFO PF1/4

SERIAL: 1-50340

2шт.

41

2181-1702D4

ELBOW PFO PF1/4

SERIAL: 50341

3шт.

67

2184-1026D337

HOSE S-S1/2-310L

desc: TUYAU FLEXIBLE

1шт.

69

2184-1036D286

HOSE S901/2-360L

desc: TUYAU FLEXIBLE

1шт.

76

2184-1045D112

HOSE S-S1/4-510L

desc: TUYAU FLEXIBLE

1шт.

77

2184-1046D169

HOSE S901/4-1600L

SERIAL: 1-50340

1шт.

77

2184-1046D73

HOSE S901/4-1900L

SERIAL: 50341-50500

1шт.

78

2184-1046D62

HOSE S901/4-1850L

desc: TUYAU FLEXIBLE

1шт.

79

2184-1061D13

HOSE 90-901/4-620L

desc: TUYAU FLEXIBLE

1шт.

95

2184-1045D112

HOSE S-S1/4-510L

desc: TUYAU FLEXIBLE

1шт.

115

2181-2419D3

ELBOW 45 PFO1/2-PF1/2

desc: COUDE

1шт.
