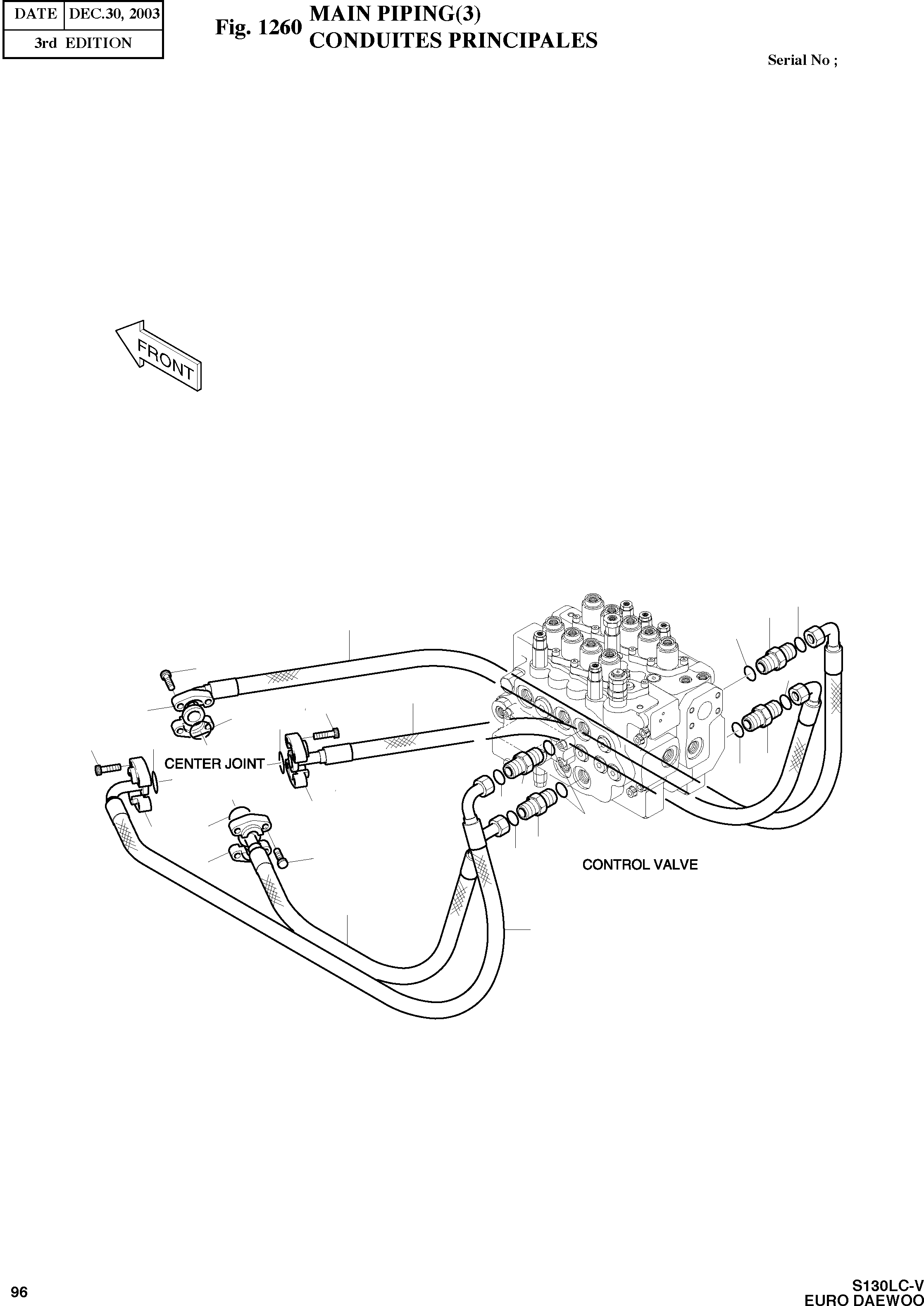

Запчасти Doosan Daewoo MAIN PIPING(3) BODY PARTS

-

2400-1800A

MAIN PIPING

SERIAL: 1-50500

-2шт.

-

9400-1122A

MAIN PIPING

SERIAL: 50501

-2шт.

2

2184-1202D49

HOSE PF 3/4-1550L

desc: TUYAU FLEXIBLE

1шт.

3

2184-1201D21

HOSE PF 3/4-1250L

desc: TUYAU FLEXIBLE

1шт.

4

2184-1202D50

HOSE PF 3/4-1400L

desc: TUYAU FLEXIBLE

1шт.

5

2184-1201D20

HOSE PF 3/4-1050L

desc: TUYAU FLEXIBLE

1шт.

19

2180-1026D2

O-RING

desc: JOINT TORIQUE

4шт.

20

2181-9079

FLANGE;SPLIT

desc: FLASQUE EN DEUX

8шт.

22

S2212061

BOLT;SOCKET M10X1.5X25

SERIAL: 1-50520

16шт.

22

S2212066

BOLT;SOCKET M10X1.5X25

SERIAL: 50521

16шт.

23

2181-2627D1

ADAPTER PF03/4-ORS 3/4

desc: RACCORD

2шт.

24

S8030121

O-RING

desc: JOINT TORIQUE

4шт.

25

S8000231

O-RING

desc: JOINT TORIQUE

4шт.

39

2181-2627D5

ADAPTER PF 03/4-ORS 3/4

desc: RACCORD

1шт.

42

2181-2627D3

ADAPTER PF 03/4-ORS 3/5

desc: RACCORD

1шт.
