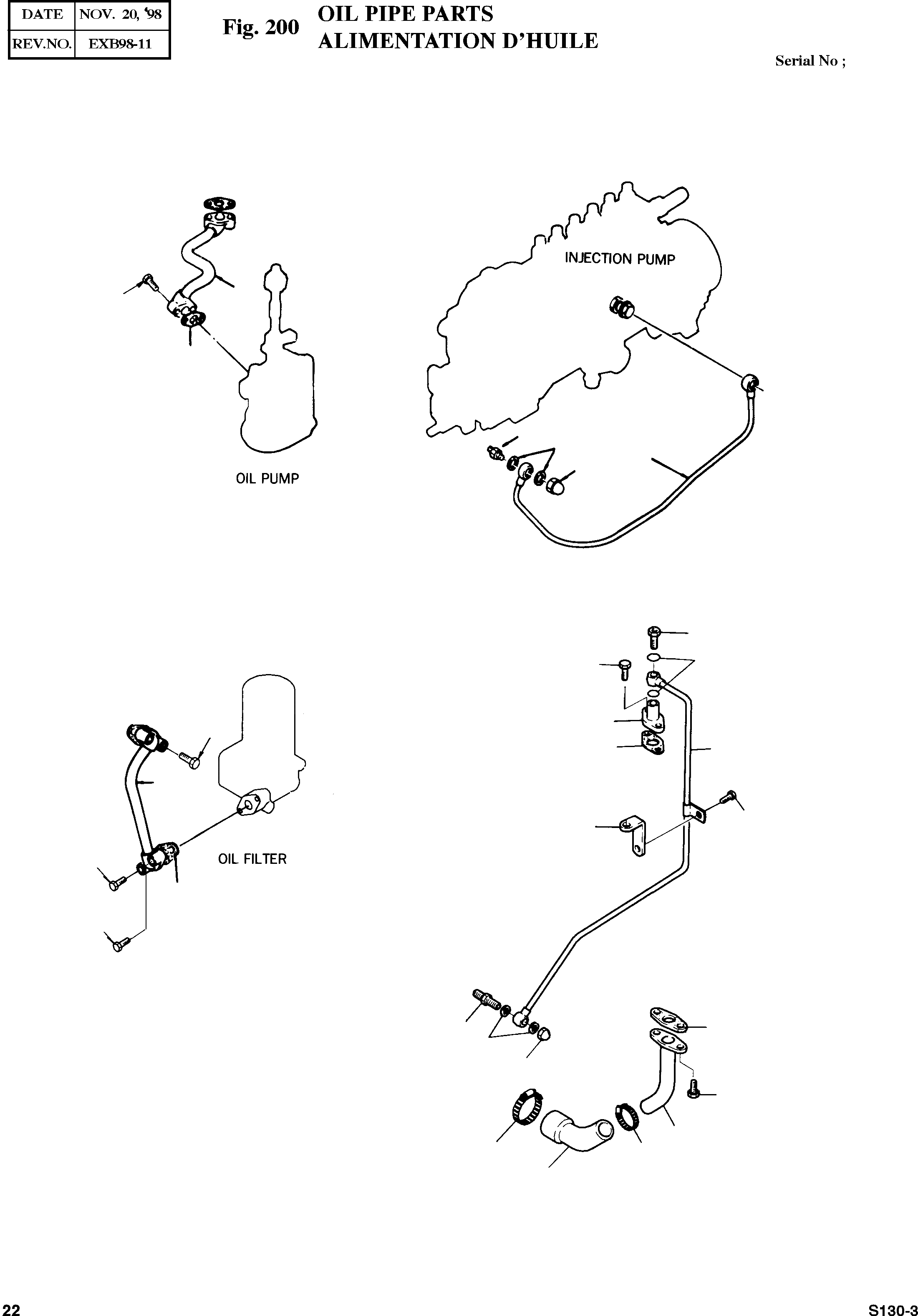

Запчасти Doosan Daewoo OIL PIPE PARTS ENGINE PARTS

1

65.05701-5251

PIPE;OIL(PUMP TO C/B)

desc: TUYAU

1шт.

2

06.01913-3119

HEX.BOLT ASS'Y M8X40

desc: BOULON A 6 PANS

4шт.

4

65.05903-0002

GASKET

desc: JOINT

2шт.

5

65.05701-5271

PIPE;OIL FILTER TO COOLER

desc: TUYAU

1шт.

6

06.01913-3119

BOLT;HEX. M8X40

desc: BOULON A 6 PANS

3шт.

6-1

06.01913-3118

BOLT ASS'Y M8X35

desc: BOULON A 6 PANS

1шт.

8

65.05903-0001

GASKET

desc: JOINT

2шт.

9

65.05701-5200

PIPE OIL(C/B TO I/P)

desc: TUYAU

1шт.

10

65.98155-0011

NIPPLE

desc: GRAISSEUR

1шт.

11

06.12172-9314

NUT;CAP

desc: CHAPEAU DE ECROU

1шт.

12

06.56180-0714

RING;SEAL A10X15

desc: BAGUE D'ETANCHEITE

2шт.

21

65.98155-0011

NIPPLE

desc: GRAISSEUR

1шт.

22

65.98131-5003

FLANGE

desc: RACCORD

1шт.

23

65.96601-0015

GASKET

desc: JOINT

1шт.

24

65.05701-5267

PIPE;OIL(C/B TO TURBO)

desc: TUYAU D'HUILE

1шт.

25

06.01913-3113

BOLT ASS'Y

desc: BOULON A 6 PANS

2шт.

26

06.16731-2107

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

27

06.01913-3110

BOLT ASS'Y

desc: BOULON A 6 PANS

1шт.

29

65.97480-0315

HOLDER

desc: POSSESSEUR

1шт.

30

06.56180-0714

RING;SEAL

desc: BAGUE D'ETANCHEITE

2шт.

31

06.12172-9314

NUT;CAP

desc: CHAPEAU DE ECROU

1шт.

32

06.78144-2403

SCREW;HOLLOW

desc: VIS CREUSE

1шт.

33

06.56190-0704

RING;SEAL

desc: BAGUE D'ETANCHEITE

2шт.

34

65.05701-5278

PIPE;OIL(TURBO TO CAB)

desc: TUYAU D'HUILE

1шт.

35

65.96601-0031

GASKET

desc: JOINT

1шт.

36

06.01913-3213

BOLT ASS'Y

desc: BOULON A 6 PANS

2шт.

38

65.96301-0191

HOSE;RUBBER

desc: FLEXIBLE CAOUTCHOUC

1шт.

39

06.67020-0106

CLAMP;HOSE

desc: COLLIER

2шт.
