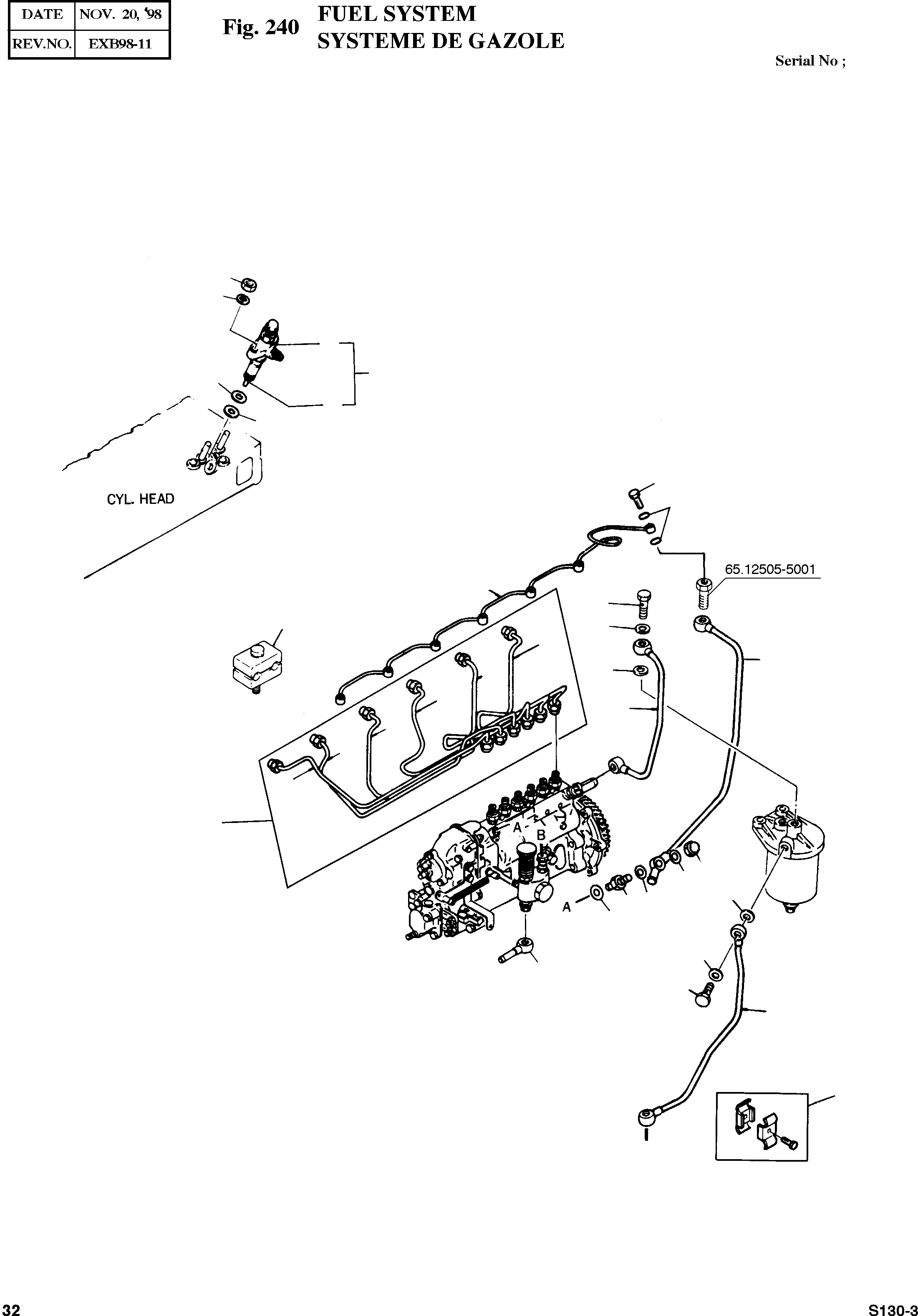

Запчасти Doosan Daewoo FUEL SYSTEM ENGINE PARTS

1

65.10101-7012

NOZZLE HOLDER ASS'Y

SERIAL: 9600002

6шт.

1

65.10101-7268

NOZZLE HOLDER ASS'Y

SERIAL: 9600003

6шт.

2

65.10101-6003

HOLDER;NOZZLE

SERIAL: 9600002

6шт.

2

65.10101-6023

HOLDER;NOZZLE

SERIAL: 9600003

6шт.

3

65.10102-6003

NOZZLE ASS'Y

SERIAL: 9600002

6шт.

3

65.10102-6039

NOZZLE ASS'Y

SERIAL: 9600003

6шт.

5

65.96507-0004

RING;SEAL

desc: BAGUE D'ETANCHEITE

6шт.

6

65.96507-0011

RING;SEAL

desc: BAGUE D'ETANCHEITE

6шт.

8

06.11063-8214

NUT;HEX. M8

desc: ECROU

12шт.

9

06.16731-2107

WASHER;SPRING A8

desc: RONDELLE ELASTIQUE

12шт.

11

65.12301-5018

PIPE;FUEL

SERIAL: 960223

1шт.

11

65.12301-5816

PIPE;FUEL

SERIAL: 960224

1шт.

12

06.78144-2404

SCREW;HOLLOW

desc: VIS CREUSE

1шт.

13

65.56190-0706

RING;SEAL A14X20

desc: BAGUE D'ETANCHEITE

2шт.

14

65.12301-5019

PIPE;FUEL

desc: CANALISATION DE GAZOLE

1шт.

14

65.12301-5817

PIPE;FUEL

SERIAL: 960223

1шт.

15

06.78144-2404

SCREW;HOLLOW

SERIAL: 960224

1шт.

16

06.56190-0706

RING;SEAL A14X20

desc: BAGUE D'ETANCHEITE

2шт.

17

65.97401-6019

PIPE CLIP ASS'Y

desc: TUYAU

1шт.

18

65.12301-5021

PIPE;FUEL

SERIAL: 960223

1шт.

18

65.12301-5020

PIPE;FUEL

SERIAL: 960224

1шт.

19

65.98150-0015B

SCREW;HOLLOW

desc: VIS CREUSE

7шт.

20

06.56180-0712

RING;SEAL A8X14

desc: BAGUE D'ETANCHEITE

14шт.

21

65.12301-5022

PIPE;FUEL(RETURN)

desc: CANALISATION DE GAZOLE

1шт.

21-1

65.12301-5818

PIPE;FUEL(RETURN)

desc: CANALISATION DE GAZOLE

1шт.

21-2

65.10301-6289

PRESSURE PIPE ASS'Y

desc: CONDUITES DE PRESSION

1шт.

22

65.10301-5275

PIPE;PRESSURE(1 CYLINDER)

SC: D

1шт.

23

65.10301-5276

PIPE;PRESSURE(2 CYLINDER)

SC: D

1шт.

24

65.10301-5277

PIPE;PRESSURE(3 CYLINDER)

SC: D

1шт.

25

65.10301-5278

PIPE;PRESSURE(4 CYLINDER)

SC: D

1шт.

26

65.10301-5279

PIPE;PRESSURE(5 CYLINDER)

SC: D

1шт.

27

65.10301-5280

PIPE;PRESSURE(6 CYLINDER)

SC: D

1шт.

28

65.97401-6008

PIPE CLIP ASS'Y

desc: ATTACHE

5шт.

29

06.12172-9316

NUT;CAP M14X1.5

desc: CHAPEAU DE ECROU

1шт.

30

65.96507-0010

RING;SEAL

desc: BAGUE D'ETANCHEITE

2шт.

31

65.11120-5001

VALVE;OVERFLOW

desc: CLAPET DE DECHARGE

1шт.

32

65.96507-0010

RING;SEAL

desc: BAGUE D'ETANCHEITE

1шт.
