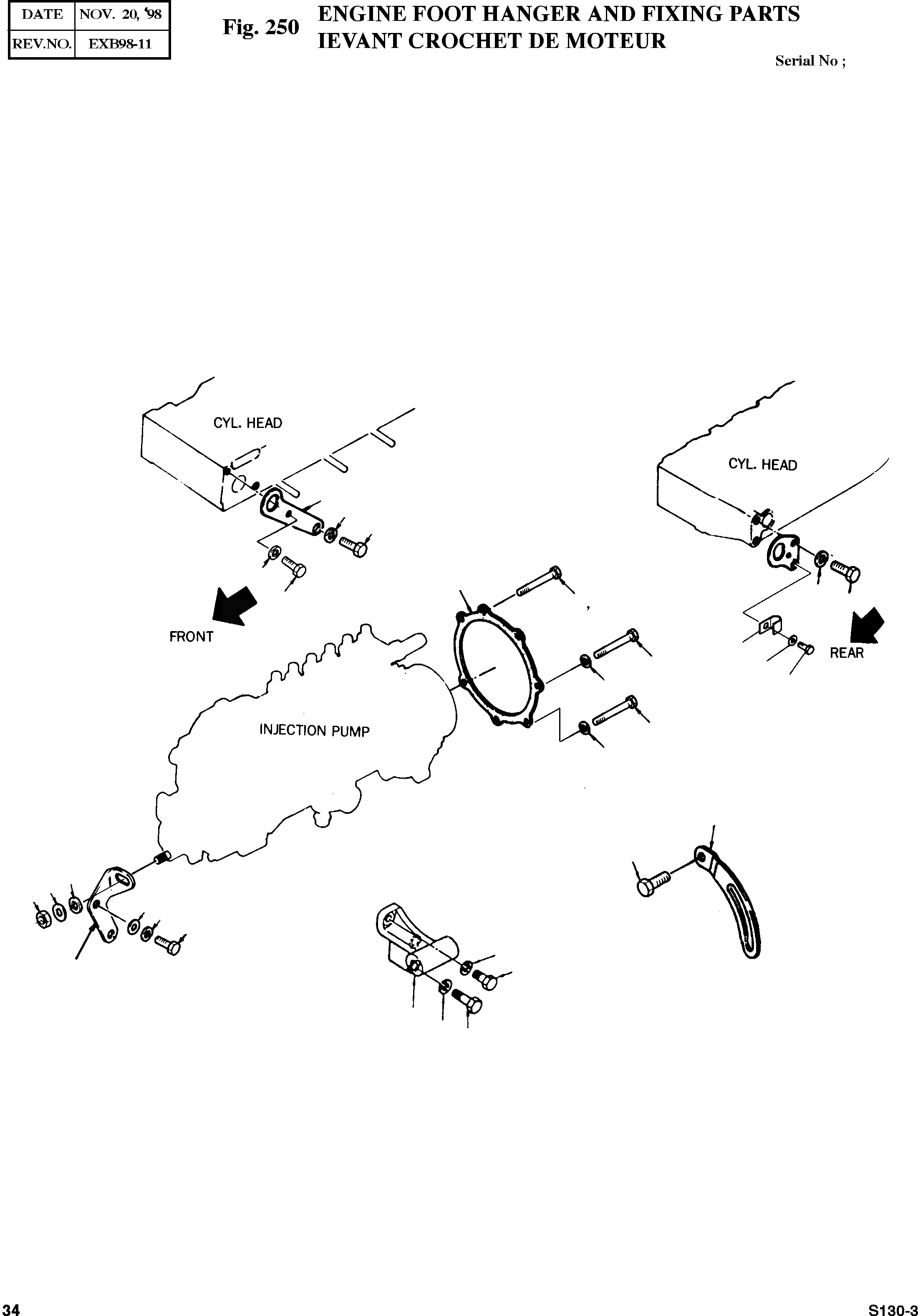

Запчасти Doosan Daewoo ENGINE FOOT HANGER AND FIXING PARTS ENGINE PARTS

1

65.11902-0001

GASKET;INJ. PUMP

desc: JOINT

1шт.

2

06.01913-3124

BOLT ASS'Y

desc: BOULON A 6 PANS

4шт.

2-1

06.01283-7126

BOLT ASS'Y

desc: BOULON A 6 PANS

1шт.

3

06.01913-3122

BOLT ASS'Y

desc: BOULON A 6 PANS

1шт.

3-1

06.01283-7128

BOLT;HEX. M8X85

desc: BOULON A 6 PANS

1шт.

4

06.16731-2107

WASHER;SPRING A8

desc: RONDELLE ELASTIQUE

2шт.

6

65.11401-0002

BRACKET;REAR

desc: SUPPORT

1шт.

7

06.11063-9215

NUT;HEX. M10X1.25

desc: ECROU

1шт.

8

06.16731-2108

WASHER;SPRING

desc: RONDELLE ELASTIQUE

1шт.

9

06.15010-2312

WASHER;PLAIN

desc: RONDELLE PLATE

3шт.

11

06.01953-3213

BOLT ASS'Y

desc: BOULON A 6 PANS

2шт.

14

65.19202-0024

HOOK;LIFTING

desc: CROCHET

1шт.

15

06.01733-4409

BOLT;HEX. M14X1.5X25

desc: BOULON A 6 PANS

1шт.

16

06.16731-2110

WASHER;SPRING

desc: RONDELLE ELASTIQUE

1шт.

17

06.01733-4208

BOLT;HEX. M10X1.25X22

desc: BOULON A 6 PANS

1шт.

18

06.16731-2108

WASHER;SPRING

desc: RONDELLE ELASTIQUE

1шт.

19

65.19202-0005

HOOK;LIFTING

desc: CROCHET

1шт.

20

06.01943-3213

BOLT;HEX. M10X1.25X20

desc: BOULON A 6 PANS

2шт.

21

06.16731-2108

WASHER;SPRING

desc: RONDELLE ELASTIQUE

1шт.

25

65.19103-0063

SUPPORT;ALTERNATOR

desc: SUPPORT D'ALTERNATEUR

1шт.

26

06.01944-3215

BOLT ASS'Y

desc: BOULON A 6 PANS

1шт.

28

65.97401-0047

CLIP

desc: ATTACHE

1шт.

29

06.16731-2105

WASHER;SPRING A6

desc: RONDELLE ELASTIQUE

1шт.

30

06.01283-6909

BOLT M6X10

desc: BOULON A 6 PANS

1шт.

31

65.19102-0013B

BRACKET

desc: SUPPORT

1шт.

32

06.01944-3215

BOLT;HEX

desc: BOULON A 6 PANS

1шт.

33

06.01493-4206

BOLT;HEX. M10X1.25X35

desc: BOULON A 6 PANS

2шт.

34

06.16731-2108

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.
