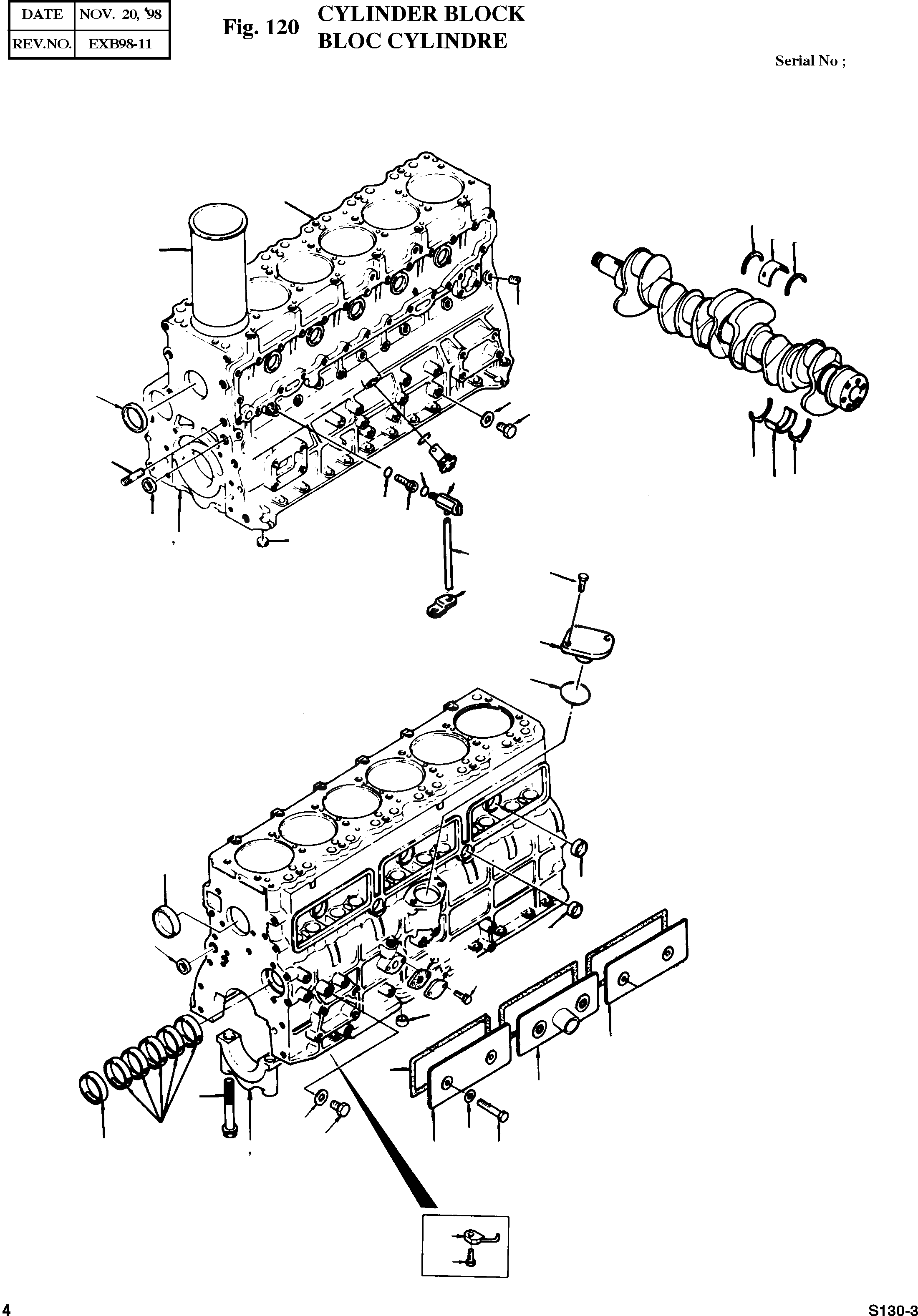

Запчасти Doosan Daewoo CYLINDER BLOCK ENGINE PARTS

-

65.01101-6051

CYLINDER BLOCK ASS'Y

desc: ENSEMBLE BLOC-CYLINDRES

1шт.

1

65.01101-0030

BLOCK;CYLINDER

desc: . BLOC CYLINDRE

1шт.

2

65.01201-0029

LINER;CYLINDER

desc: . CHEMISE DE CYLINDRE

6шт.

3

65.01105-1004

CAP;BEARING(F.M.R)

SC: D

6шт.

4

65.01105-1003

CAP;BEARING(NO.4)

SC: D

1шт.

5

65.91710-0001

RING;BEARING CAP STOPPER

desc: . BAGUE

2шт.

6

65.90020-0029

BOLT;HEX. BEARING CAP

desc: . BOULON A 6 PANS

14шт.

7

65.04410-0007

BUSH;CAM SHAFT

desc: . COUSSINET DE PALIER D'ARBRE A CAMES

1шт.

8

65.04410-0006

BUSH;CAM SHAFT

desc: . COUSSINET DE PALIER D'ARBRE A CAMES

5шт.

9

65.90302-0009

PLUG;CORE

desc: . BOUCHON

2шт.

10

06.15091-0319

PLUG;CORE B28D

desc: . BOUCHON

2шт.

11

06.15091-0322

PLUG;CORE

desc: . BOUCHON

3шт.

13

65.90310-0030

SCREW;PLUG M12X1.25

desc: BOUCHON A VIS

1шт.

14

06.56190-0704

RING;SEAL A12X18

desc: BAGUE D'ETANCHEITE

1шт.

15

65.90320-0019

SCREW;PLUG PT3/8

desc: BOUCHON A VIS

1шт.

16

06.15091-0313

PLUG;CORE

desc: BOUCHON

2шт.

17

65.90320-0022

SCREW;PLUG PT1/8

desc: BOUCHON A VIS

10шт.

19

65.90201-0058

BOLT;STUD M14X1.5X45

desc: GOUJON

1шт.

20

65.91605-0001C

COVER

desc: COUVERCLE

1шт.

21

06.01913-3113

HEX.BOLT ASS'Y M8X20

desc: BOULON A 6 PANS

2шт.

24

65.01112-0021

COVER;PUSH ROD CHAMBER

desc: COUVERCLE

2шт.

24-1

65.01112-5018

COVER;PUSH ROD CHAMBER

desc: COUVERCLE

1шт.

29

65.90020-0049

BOLT;HEX

desc: BOULON A 6 PANS

6шт.

30

65.96507-0007

PACKING;JOING BOLT

desc: BAGUE D'ETANCHEITE

6шт.

31

65.01110-6090

METAL;CRANK

desc: PALIER

7шт.

32

65.01150-6010

WASHER;THRUST

desc: RONDELLE DE BUTEE

2шт.

44

65.01901-0004

GASKET;CHAMBER COVER

desc: JOINT

3шт.

45

06.56021-0106

O-RING G50

desc: JOINT TORIQUE

1шт.

46

65.05401-5002

RELIEF VALVE ASS'Y

desc: CLAPET DE DECHARGE

1шт.

47

06.56021-0102

O-RING G30

desc: JOINT TORIQUE

1шт.

49

65.06310-6003

PLUG;DRAIN

desc: BOUCHON DE VIDANGE

1шт.

50

65.98130-0040

ADAPTER

desc: RACCORD

1шт.

51

06.56190-0713

RING;SEAL A18X24

desc: BAGUE D'ETANCHEITE

2шт.

52

04.50010-0811

HOSE;VINYL

desc: TUYAU FLEXIBLE PVC

1шт.

53

65.97401-0050

CLIP;HOSE

desc: ATTACHE

1шт.

55

65.01605-5010

OIL JET PIPE ASS'Y

desc: ENSEMBLE FILTRE A HUILE

6шт.

56

65.05401-5015

RELIEF VALVE ASS'Y

desc: CLAPET DE DECHARGE

6шт.

57

65.05903-0013

GASKET

desc: JOINT

1шт.

58

65.91615-0011

COVER;BLIND

desc: COUVERCLE

1шт.

59

06.01913-3113

BOLT ASS'Y

desc: BOULON A 6 PANS

2шт.

61

06.08092-0204

SCREW;PLUG M14X1.5

desc: BOUCHON A VIS

1шт.

62

06.56190-0706

RING;SEAL A14X20

desc: BAGUE D'ETANCHEITE

1шт.
