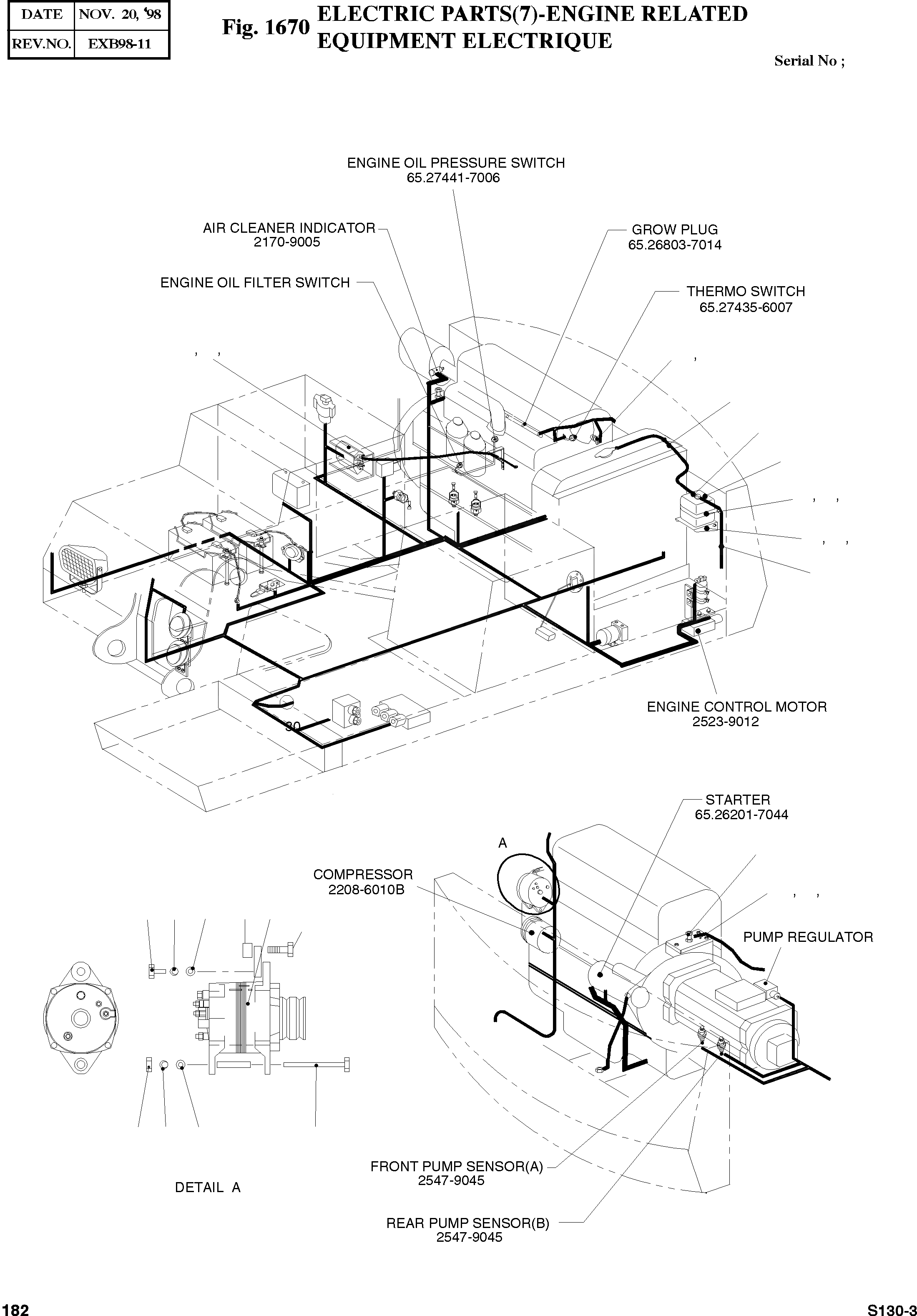

Запчасти Doosan Daewoo ELECTRIC PARTS(7)-ENGINE RELATED BODY PARTS

-

2500-1124

ELECTRIC PARTS(2)

desc: EQUIPMENT ELECTRIQUE

-2шт.

52

2547-9038

SENSOR;WATER TEMP

SERIAL: 1-384

1шт.

52

2547-9038A

SENSOR;WATER TEMP

SERIAL: 385

1шт.

56

2547-9021

SENSOR;ENGINE SPEED

desc: CAPTEUR

1шт.

57

2195-3200A

BRACKET;SPEED SENSOR

desc: SUPPORT

1шт.

58

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

3шт.

59

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

3шт.

60

2523-9009A

MOTOR;ENGINE STOP 24V

desc: COMMANDE REGIME MOTEUR

1шт.

61

S0504653

BOLT M6X1.0X16

desc: BOULON A 6 PANS

3шт.

62

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

3шт.

63

2502-6005

ALTERNATOR 24V 60A

SERIAL: 1-140

1шт.

63

2502-6005A

ALTERNATOR 24V 60A

SERIAL: 141

1шт.

64

S8180251

PACKING

SERIAL: 0081

1шт.

65

S0760453

BOLT M12X1.25X35

desc: BOULON A 6 PANS

1шт.

66

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

1шт.

67

2114-1058D54

WASHER;PLAIN Ґх36XҐх13.5

desc: RONDELLE PLATE

1шт.

68

2114-1661B

SPACER

SERIAL: 316

1шт.

69

S0508553

BOLT M8X1.0X14

SERIAL: 316

1шт.

70

S0562553

BOLT M12X1.75X150

desc: BOULON A 6 PANS

1шт.

71

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

1шт.

72

S5010713

WASHER;PLAIN M12

desc: RONDELLE PLATE

1шт.

73

S4012733

NUT M12X1.75

desc: ECROU

1шт.

74

2470-9010

TANK;RESERVE

desc: RESERVOIR

1шт.

75

2195-1847

BRACKET

desc: SUPPORT

1шт.

76

2124-1244

CLAMP

desc: ATTACHE DE TUYAU

1шт.

77

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

78

S0511753

BOLT M10X1.5X18

desc: BOULON A 6 PANS

4шт.

79

2185-9036

HOSE;WATER

desc: FLEXIBLE D'EAU

1шт.

80

2124-1024D1

CLAMP;HOSE Ґх9.5XҐх16

desc: COLLIER

2шт.

81

2184-1053

HOSE;VINYL

desc: TUYAU FLEXIBLE PVC

1шт.
