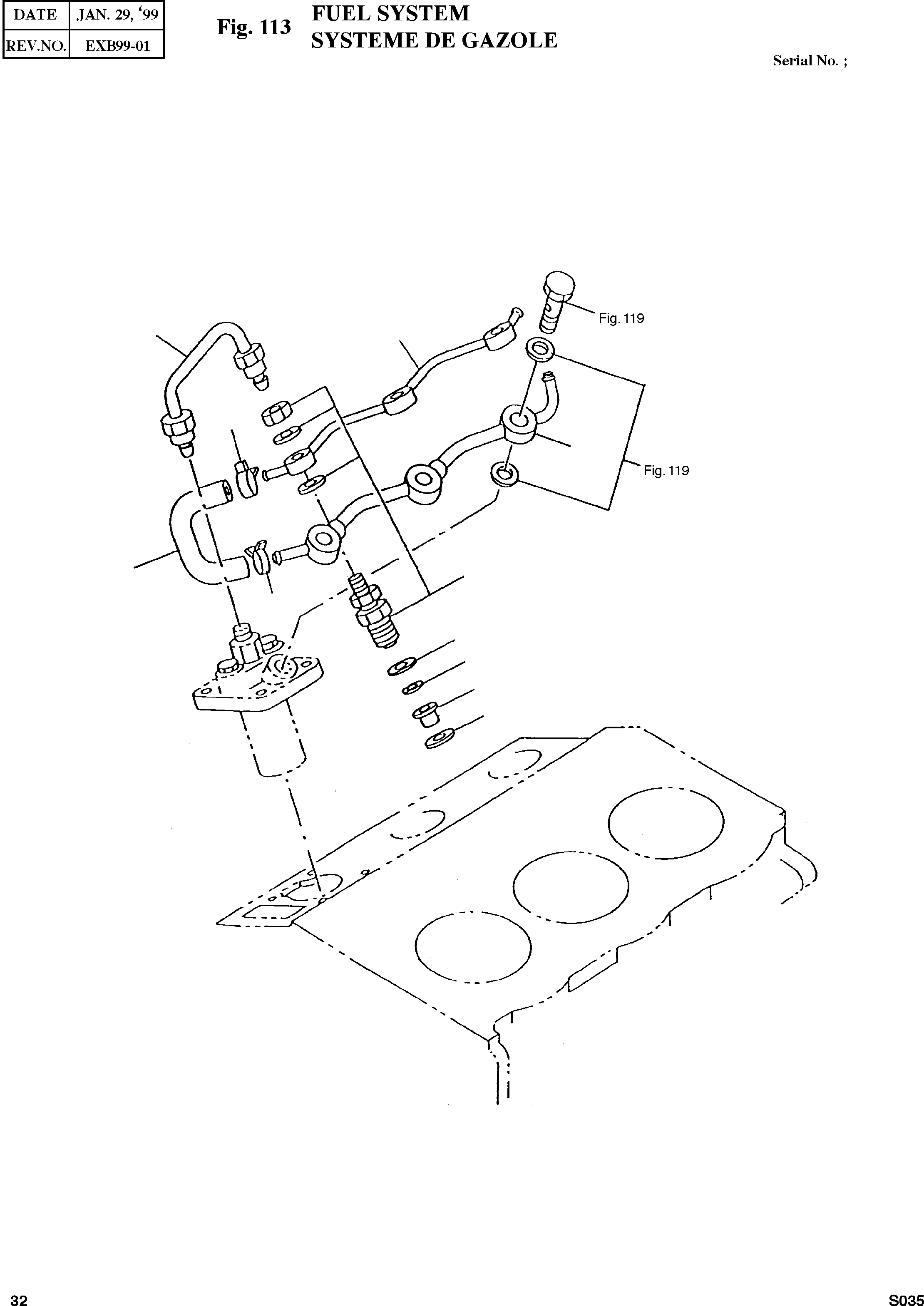

Запчасти Doosan Daewoo FUEL SYSTEM ENGINE PARTS

1

897079-9760

NOZZLE ASS'Y;INJ FIG 5

SC: A

3шт.

3

894106-0551

HEAT SHIELD;NOZZLE

SC: A

3шт.

4

894257-5920

GASKET;NOZZLE HOLDER

SC: A

3шт.

5

894257-5930

GASKET;HEAT SHIELD

SC: A

3шт.

6

894106-0403

CORRUGATED WASHER

SC: A

3шт.

10

897045-4062

PIPE ASS'Y;INJ 1.2.3.ID 1.6

SC: A

3шт.

16

509707-0051

CLIP;FUEL HOSE

SC: A

2шт.

19

897096-4030

PIPE ASS'Y;FUEL FEED

SC: A

1шт.

20

897045-4081

PIPE ASS'Y;FUEL LEAK OF

SC: A

1шт.

21

897046-7940

HOSE;FUEL FEED-/OFF

SC: A

1шт.
