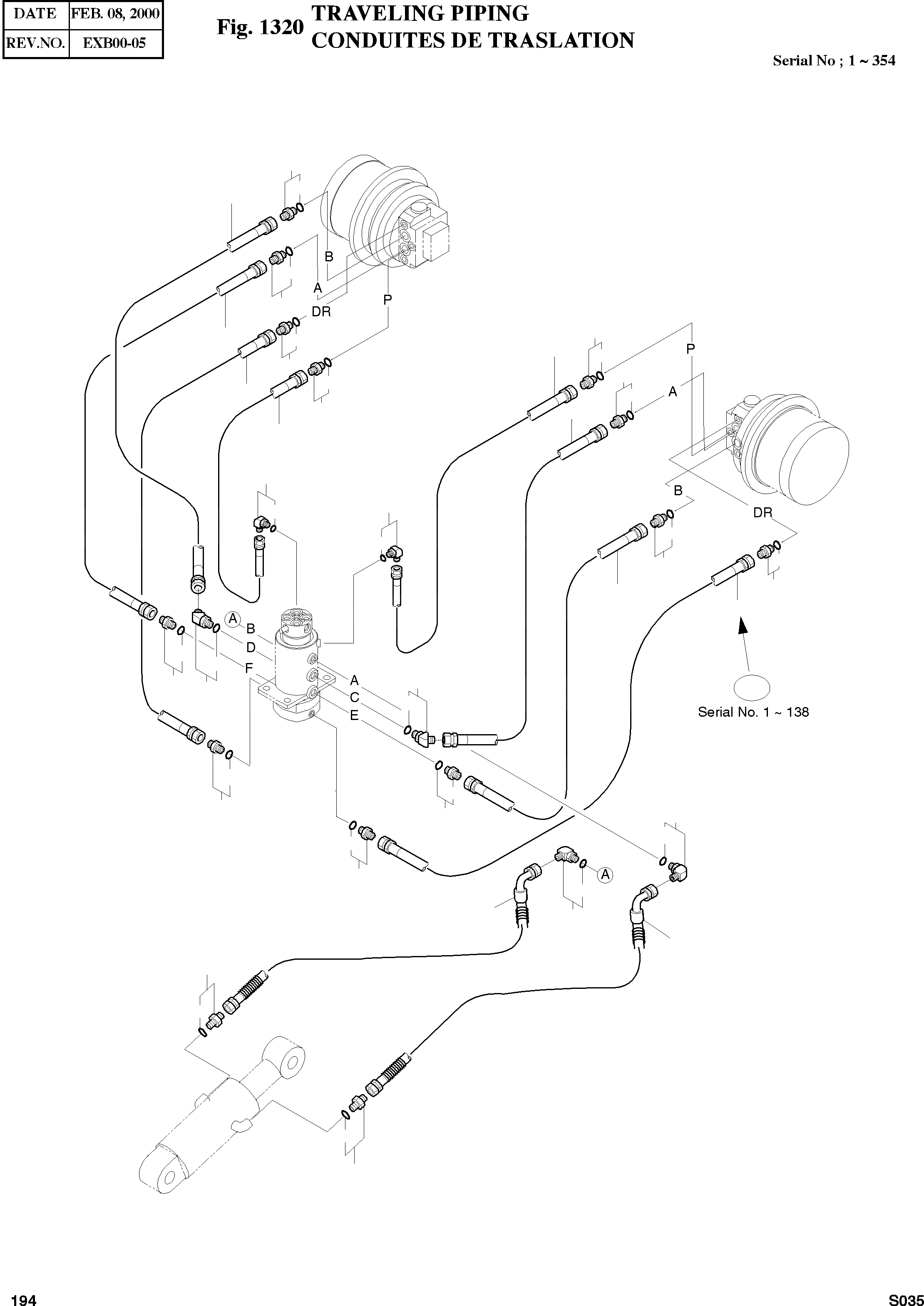

Запчасти Doosan Daewoo TRAVELING PIPING BODY PARTS

-

2400-7075

PIPING;TRAVEL

SERIAL: 1-354

-1шт.

1

2181-1702D4

ELBOW;HOSE PFO1/4XPF1/4X90'

desc: COUDE

2шт.

2

S8000111

O-RING P11

desc: JOINT TORIQUE

4шт.

3

2181-2419D3

ELBOW;HOSE PF1/2XPF1/2.90'

desc: COUDE

2шт.

4

S8000181

O-RING P18

desc: JOINT TORIQUE

2шт.

5

2181-1125D6

ADAPTER PFO1/2XPF1/2

desc: RACCORD

2шт.

6

S8000181

O-RING P18

desc: JOINT TORIQUE

2шт.

7

2181-1702D4

ELBOW;STREET PFO1/4XPF1/4.90'

desc: COUDE

2шт.

8

S8000111

O-RING P11

desc: JOINT TORIQUE

2шт.

9

2181-1126D14

ADAPTER PFO1/4XPF1/4

desc: RACCORD

2шт.

10

2184-1026D338

HOSE PF1/4X1050L

SERIAL: 1-138

2шт.

10

2184-1026D38

HOSE PF1/4-1100L

SERIAL: 139

1шт.

11

2184-1026D38

HOSE PF1/4-1100L

SERIAL: 1-138

1шт.

11

2184-1026D338

HOSE PF1/4X1050L

SERIAL: 139

2шт.

12

2184-1026D353

HOSE PF1/4X1300L

SERIAL: 1-138

1шт.

12

2184-1026D38

HOSE PF1/4-1100L

SERIAL: 139

1шт.

13

2181-1126D6

ADAPTER PF1/2XPF1/2

desc: RACCORD

4шт.

14

S8000181

O-RING P18

desc: JOINT TORIQUE

4шт.

15

2181-1126D14

ADAPTER PFO1/4XPF1/4

desc: RACCORD

4шт.

16

S8000111

O-RING P11

desc: JOINT TORIQUE

4шт.

17

2184-1046D58

HOSE PF1/4-1070L

desc: TUYAU FLEXIBLE

2шт.

18

2181-1126D14

ADAPTER PFO1/4XPF1/4

desc: RACCORD

2шт.

19

S8000111

O-RING P11

desc: JOINT TORIQUE

2шт.

20

2184-1026D331

HOSE PF1/2X1000L

desc: TUYAU FLEXIBLE

4шт.
