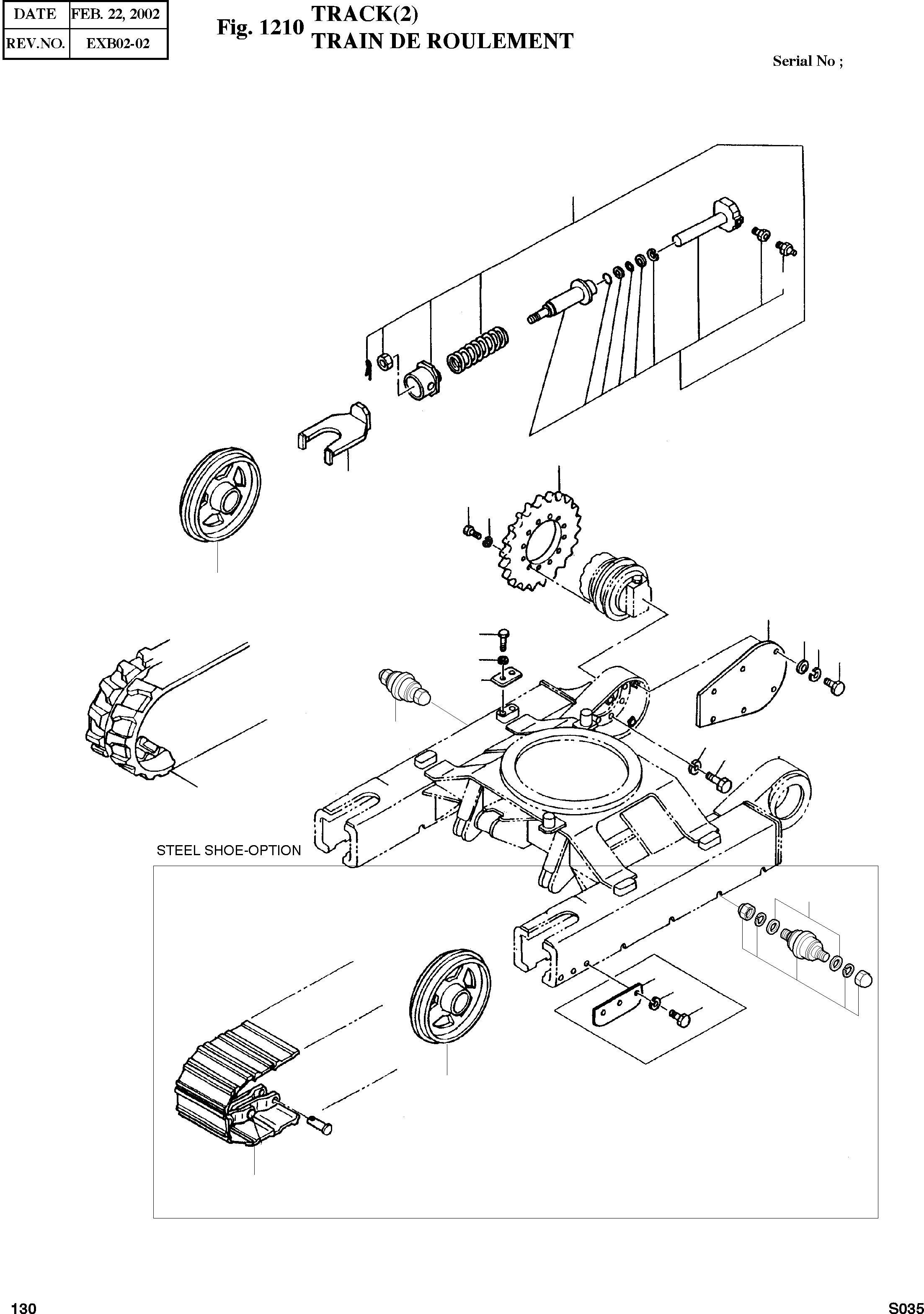

Запчасти Doosan Daewoo TRACK(2) BODY PARTS

-

2604-7033

TRACK FRAME

SC: D

-1шт.

1

01003-00060

TRACK ROLLER ASS'Y(RUBBER)

SERIAL: 1-320

8шт.

1

270-00012

TRACK ROLLER ASS'Y(RUBBER)

SERIAL: 321-866

8шт.

1

270-00012A

TRACK ROLLER ASS'Y(RUBBER)

SERIAL: 867

8шт.

2

41002-00350

RUBBER CRAWLER ASS'Y

SERIAL: 1-348

2шт.

2

273-00005

RUBBER CRAWLER ASS'Y

SERIAL: 349

2шт.

3

11004-00030

ADJUST CYL ASS'Y

desc: PLAGUE REGLAGE

2шт.

4

S6710042

NIPPLE;GREASE

desc: GRAISSEUR

1шт.

5

2157-1027

FORK

SERIAL: 1-8

2шт.

5

2157-1027A

FORK

SERIAL: 9-285

2шт.

5

2157-1027B

FORK

SERIAL: 286

2шт.

6

01003-00080

FRONT IDLER ASS'Y(RUBBER)

SERIAL: 1-320

2шт.

6

270-00011

FRONT IDLER ASS'Y(RUBBER)

SERIAL: 321

2шт.

7

2127-1292

PLATE;SLIDE

SERIAL: 1-183

4шт.

7

2627-1115

PLATE;SLIDE

SERIAL: 184

4шт.

8

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

8шт.

9

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

8шт.

10

2116-1480

PLATE;GUIDE

SERIAL: 1-290

4шт.

10

2116-1480B

PLATE;GUIDE

SERIAL: 291

4шт.

11

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

12шт.

12

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

12шт.

13

41001-00005

CRAWLER ASS'Y

desc: ENSEMBLE CHENILLE

2шт.

13

2272-6183

CRAWLER ASS'Y

desc: ENSEMBLE CHENILLE

2шт.

14

2197-1291

COVER;MOTOR CASE

SERIAL: 1-8

2шт.

14

2197-1291A

COVER;MOTOR CASE

SERIAL: 9-88

2шт.

14

2197-1291B

COVER;MOTOR CASE

SERIAL: 89-290

2шт.

14

2197-1291C

COVER;MOTOR CASE

SERIAL: 291

2шт.

15

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

2шт.

16

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

12шт.

17

S5010513

WASHER;PLAIN M8

desc: RONDELLE PLATE

12шт.

18

01020-00190

SPROCKET

SERIAL: 1-320

2шт.

18

108-00007

SPROCKET

SERIAL: 321

2шт.

19

S0515353

BOLT M12X1.75X30

SERIAL: 1-3

24шт.

19

S0515263

BOLT M12X1.75X30

SERIAL: 4

24шт.

20

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

24шт.

21

S0515361

BOLT M12X1.75X35

desc: BOULON A 6 PANS

18шт.

22

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

18шт.

23

01003-00090

TRACK ROLLER ASS'Y(STEEL)

desc: ENSEMBLE CHASSIS

8шт.

24

01003-00070

FRONT IDLER ASS'Y(STEEL)

desc: FRONTAL

2шт.

25

2114-9014

WASHER

SERIAL: 1-252

16шт.

25

2114-1990

WASHER

SERIAL: 253

16шт.
