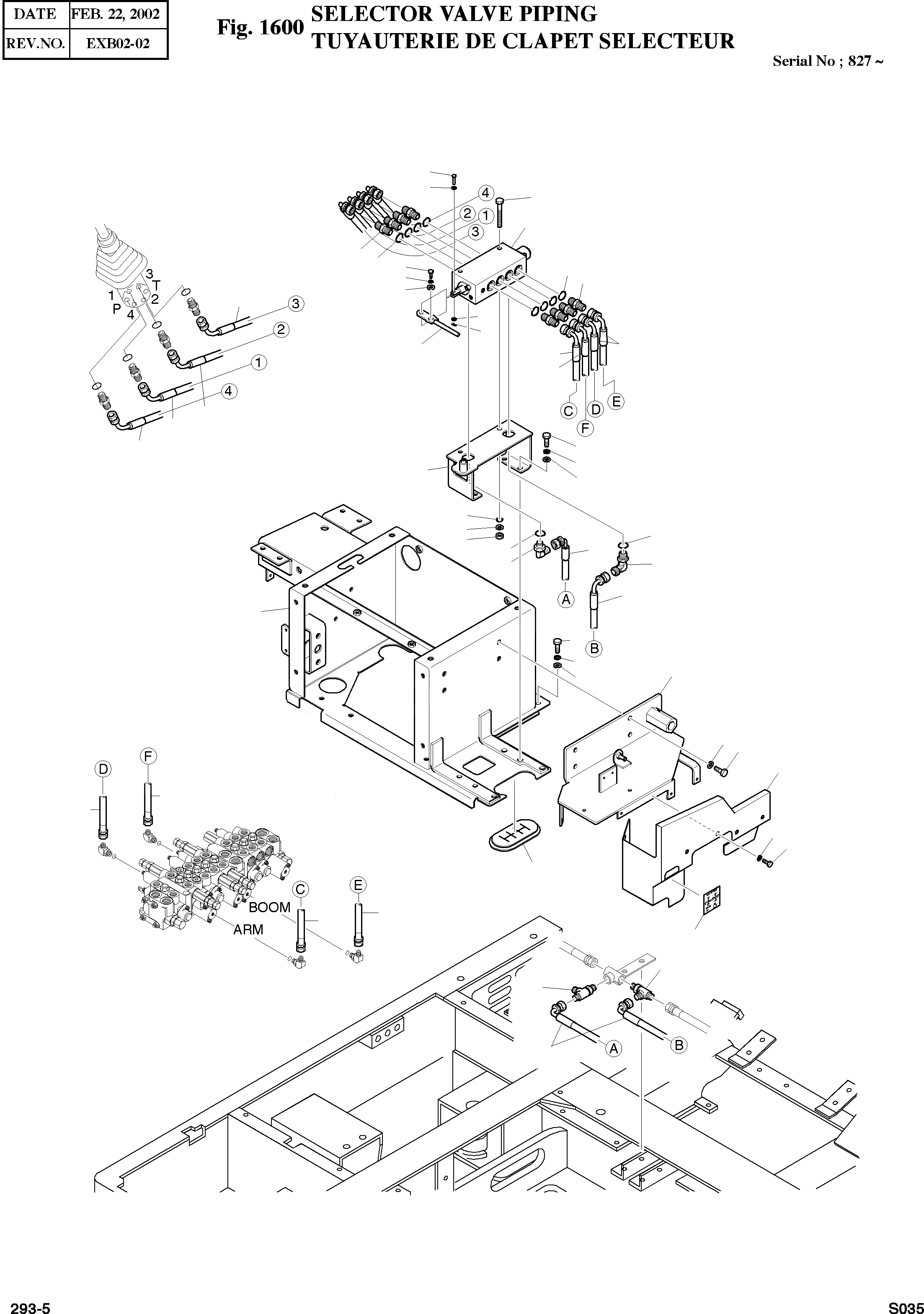

Запчасти Doosan Daewoo SELECTOR VALVE PIPING BODY PARTS

-

400-00709

SELECTOR VALVE PIPING

SC: D

-1шт.

1

195-01551

BRACKET

desc: SUPPORT

1шт.

2

S0509053

BOLT M8X1.25X25

desc: BOULON A 6 PANS

9шт.

3

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

11шт.

4

S5010513

WASHER;PLAIN M8

desc: RONDELLE PLATE

12шт.

5

426-00162

VALVE;SELECTOR

desc: VANNE

1шт.

6

S0556653

BOLT M8X1.25X65

desc: BOULON A 6 PANS

2шт.

7

S4012533

NUT M8X1.25

desc: ECROU

2шт.

8

S0502753

BOLT M5X0.8

desc: BOULON A 6 PANS

2шт.

9

S5100203

WASHER;PLAIN M5

desc: RONDELLE ELASTIQUE

1шт.

10

133-00152

LEVER

desc: LEVIER

1шт.

11

123-00404

PIN

desc: BROCHE

1шт.

12

S5100203

WASHER;PLAIN M5

desc: RONDELLE ELASTIQUE

2шт.

13

S5735051

PIN;SPLIT

desc: GOUPILLE FENDUE

1шт.

14

2181-1126D14

ADAPTER PF1/4XPF1/4

desc: RACCORD

8шт.

15

S8000111

O-RING

desc: JOINT TORIQUE

10шт.

16

2184-1052D18

HOSE PF1/4-400L

desc: TUYAU FLEXIBLE

1шт.

17

2181-1702D57

ELBOW 2PF1/4

desc: COUDE

2шт.

18

2184-1061D253

HOSE PF1/4-500L

desc: TUYAU FLEXIBLE

2шт.

19

2181-2100D3

TEE

desc: TE

2шт.

20

2184-1090D17

HOSE PF1/4-850L

desc: TUYAU FLEXIBLE

1шт.

21

2184-1046D29

HOSE PF1/4-650L

desc: TUYAU FLEXIBLE

2шт.

22

621-01620A

FLOOR PLATE ASS'Y

desc: TOLE DE PLANCHER

1шт.

23

621-01738

COVER

desc: COUVERCLE

1шт.

24

DS2072001

HOSE PF1/4-1020L

desc: TUYAU FLEXIBLE

3шт.

25

DS2072002

HOSE PF1/4-970L

desc: TUYAU FLEXIBLE

1шт.

26

2160-1330

BUSHING;RUBBER

desc: DOUILLE

1шт.

27

195-01685

BRACKET;STAND(L.H)

desc: SUPPORT

1шт.

28

2120-2166D19

BOLT M6X1.0X12

desc: BOULON A 6 PANS

6шт.

29

2114-1898D5

WASHER M6

desc: RONDELLE

6шт.

30

2120-2166D16

BOLT M8X1.25X25

desc: BOULON A 6 PANS

4шт.

31

2114-1898D2

WASHER M8

desc: RONDELLE

4шт.

32

190-00545

PLATE;NAME

desc: PLAQUE D'IDENTIFICATION

1шт.
