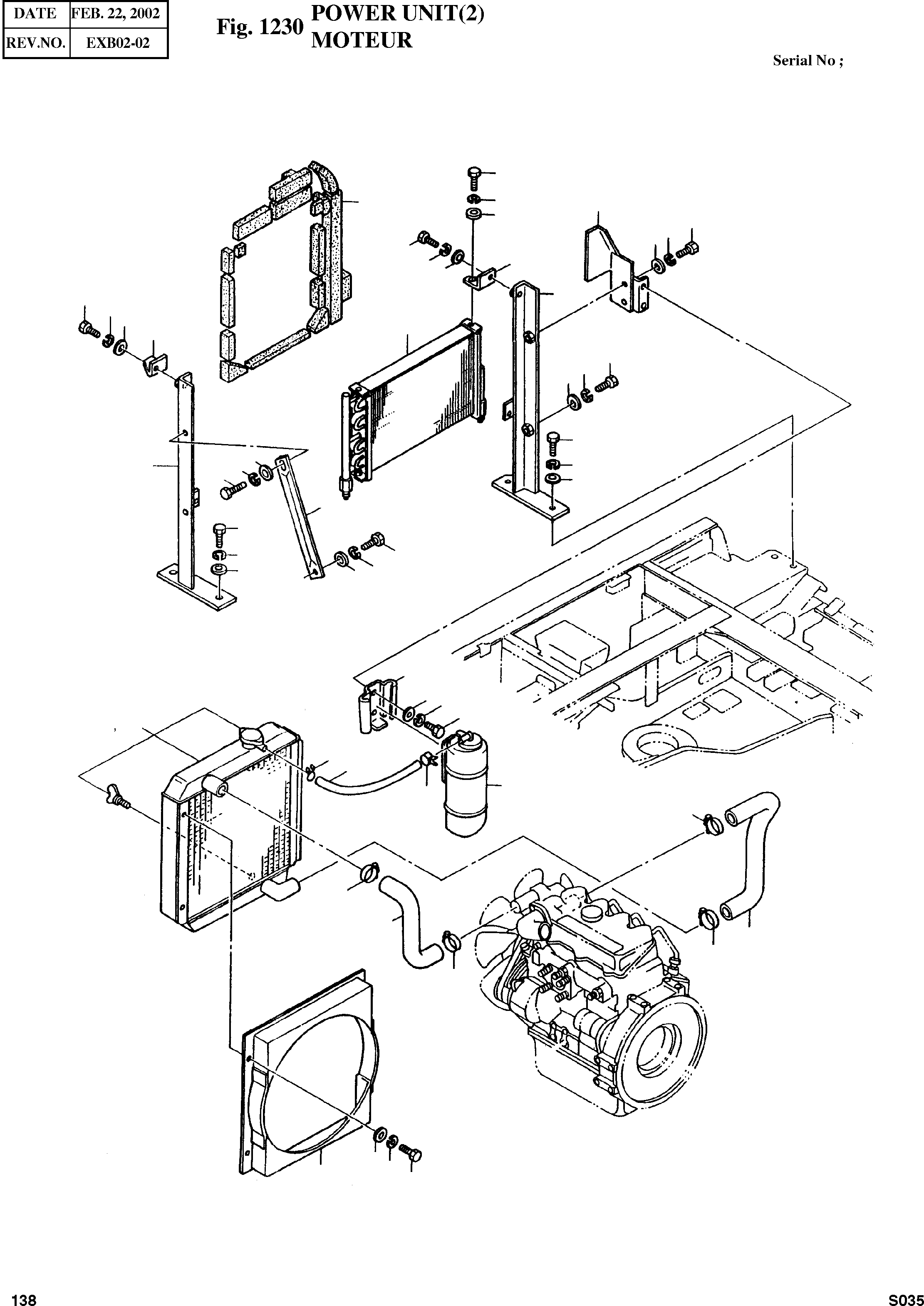

Запчасти Doosan Daewoo POWER UNIT(2) BODY PARTS

-

2202-7014

ENGINE MOUNT

SERIAL: 1-866

-1шт.

-

201-00086

ENGINE MOUNT

SERIAL: 867

-1шт.

1

2197-1225

BRACKET;RADIATOR(R.H)

desc: SUPPORT

1шт.

2

2197-1226

BRACKET;RADIATOR(L.H)

desc: SUPPORT

1шт.

3

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

4шт.

4

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

5

2114-1058D10

WASHER M10

desc: RONDELLE PLATE

4шт.

6

40121-01040

RADIATOR

SERIAL: 64

1шт.

6A

1041-013-5100

CAP;RADIATOR

SERIAL: 64

1шт.

7

2205-1012

SHROUD

desc: GARDE

1шт.

8

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

4шт.

9

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

4шт.

10

S5010313

WASHER;PLAIN M6

desc: RONDELLE PLATE

4шт.

11

2145-1233

STAY

SERIAL: 1-8

1шт.

11

2145-1233A

STAY

SERIAL: 9

1шт.

12

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

3шт.

13

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

2шт.

14

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

5шт.

15

S5010513

WASHER;PLAIN M8

desc: RONDELLE PLATE

5шт.

16

40121-01051

COOLER;OIL

desc: REFROIDISSEUR D'HUILE

1шт.

17

2621-3278

PLATE(R.H)

desc: PLAQUE

1шт.

18

2621-3279

PLATE(L.H)

desc: PLAQUE

1шт.

19

41121-01051

BOLT M8X1.25X20

desc: BOULON A 6 PANS

6шт.

20

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

6шт.

21

S5010513

WASHER;PLAIN M8

desc: RONDELLE PLATE

6шт.

22

2464-2007

BAFFLE

desc: DEROUTTER

1шт.

23

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

1шт.

24

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

1шт.

25

S5010513

WASHER;PLAIN M8

desc: RONDELLE PLATE

1шт.

26

897041-0220

HANGER;SURGE TANK

desc: ENTRETOISE

1шт.

27

S0504653

BOLT M6X1.0X16

desc: BOULON A 6 PANS

2шт.

28

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

2шт.

29

S5010313

WASHER;PLAIN M6

desc: RONDELLE PLATE

2шт.

30

894370-4500

TANK;SURGE

desc: RESERVOIR

1шт.

31

40124-00350

HOSE

desc: TUYAU FLEXIBLE

1шт.

32

40124-00360

CLIP

desc: ATTACHE

1шт.

33

30572-08012

CLIP;HOSE

desc: ATTACHE

1шт.

34

2185-1619

HOSE;UPPER

desc: TUYAU FLEXIBLE

1шт.

35

2185-1620

HOSE;LOWER

desc: TUYAU FLEXIBLE

1шт.

36

S8450044

BAND;WIRE

desc: COLLIER

4шт.

38

2161-2061A

URETHAN FOAM (C)ASS'Y

SERIAL: 1-192

1шт.

38

2161-2061B

URETHAN FOAM (C)ASS'Y

SERIAL: 193-306

1шт.

38

2161-2061C

URETHAN FOAM (C)ASS'Y

SERIAL: 307

1шт.
