Запчасти Doosan Daewoo PILOT PIPING(2) BODY PARTS

-

2400-2023

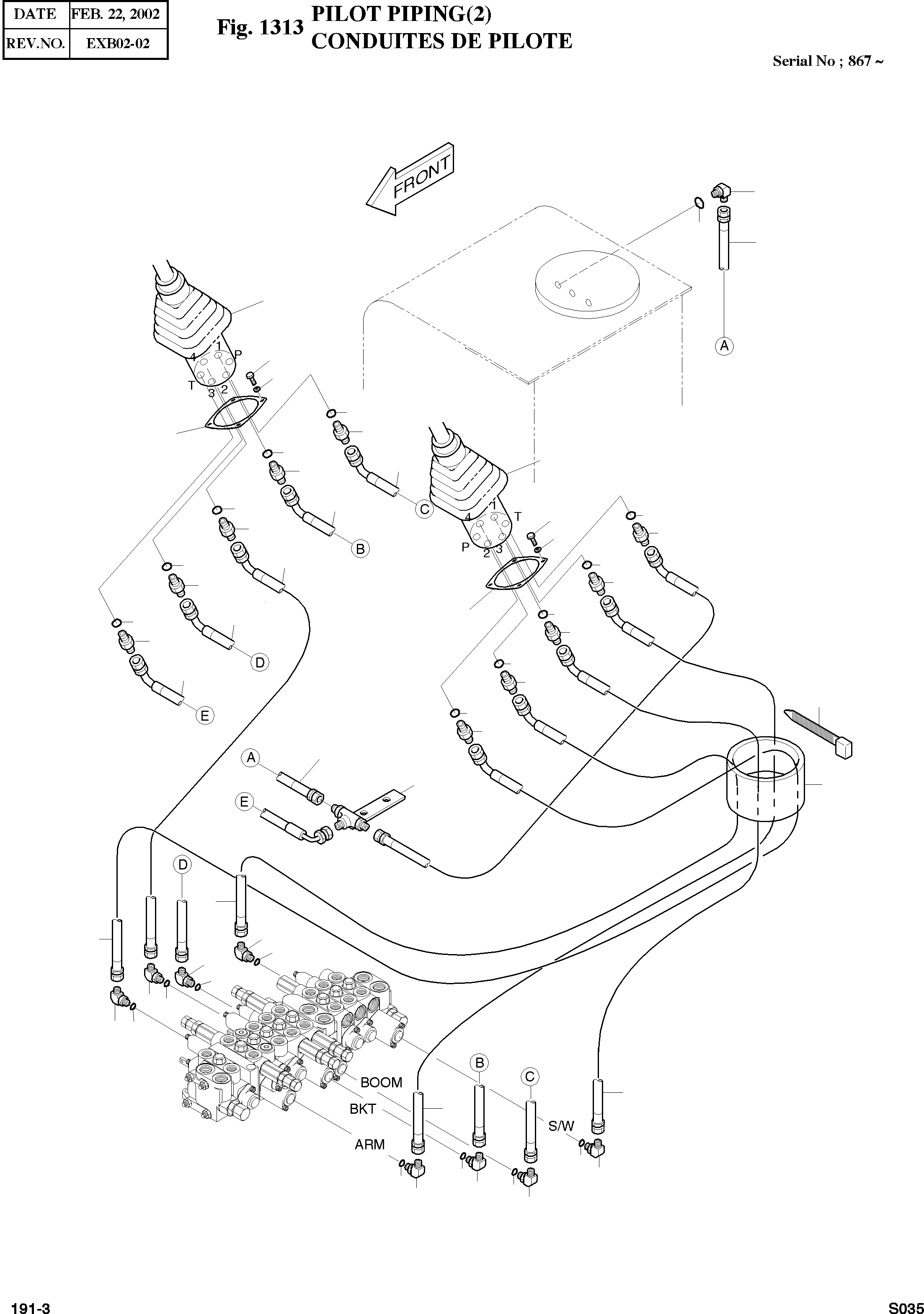

PILOT PIPING

SC: D

-1шт.

1

2181-1702D4

ELBOW;HOSE PFO1/4XPF1/4X90'

desc: COUDE

8шт.

2

S8000111

O-RING P11

desc: JOINT TORIQUE

8шт.

3

DS2067044

HOSE PF1/4-1850L

desc: TUYAU FLEXIBLE

1шт.

4

DS2067044

HOSE PF1/4-1850L

desc: TUYAU FLEXIBLE

1шт.

5

DS2067046

HOSE PF1/4-1000L

desc: TUYAU FLEXIBLE

2шт.

6

2181-1126D14

ADAPTER PFO1/4XPF1/4

desc: RACCORD

10шт.

7

S8000111

O-RING P11

desc: JOINT TORIQUE

10шт.

10

2184-1026D90

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

11

2181-1702D4

ELBOW;HOSE PFO1/4XPF1/4X90'

desc: COUDE

1шт.

16

2423-1449B

MANIFOLD

desc: COLLECTEUR

1шт.

17

S8000111

O-RING

desc: JOINT TORIQUE

1шт.

18

DS2067041

HOSE PF1/4-1250L

desc: TUYAU FLEXIBLE

3шт.

19

2161-2117

PLATE;RUBBER

desc: PLAQUE CAOUTCHOUC

4шт.

20

2124-1084D3

CLIP;BAND

desc: ATTACHE

8шт.

21

DS2067043

HOSE PF1/4-1650L

desc: TUYAU FLEXIBLE

1шт.

22

DS2067042

HOSE PF1/4-1950L

desc: TUYAU FLEXIBLE

1шт.

23

2420-9615

JOYSTICK(R.H)

desc: COMMAND DE DISTANCE

1шт.

24

2420-9616

JOYSTICK(L.H)

desc: COMMAND DE DISTANCE

1шт.

25

S0505053

BOLT M6X1.0X25

desc: BOULON A 6 PANS

8шт.

26

S5102303

WASHER;SPRING

desc: RONDELLE ELASTIQUE

8шт.

27

2621-2752

PLATE

desc: PLAQUE

2шт.

29

DS2072003

HOSE PF1/4-1000L

desc: TUYAU FLEXIBLE

1шт.
