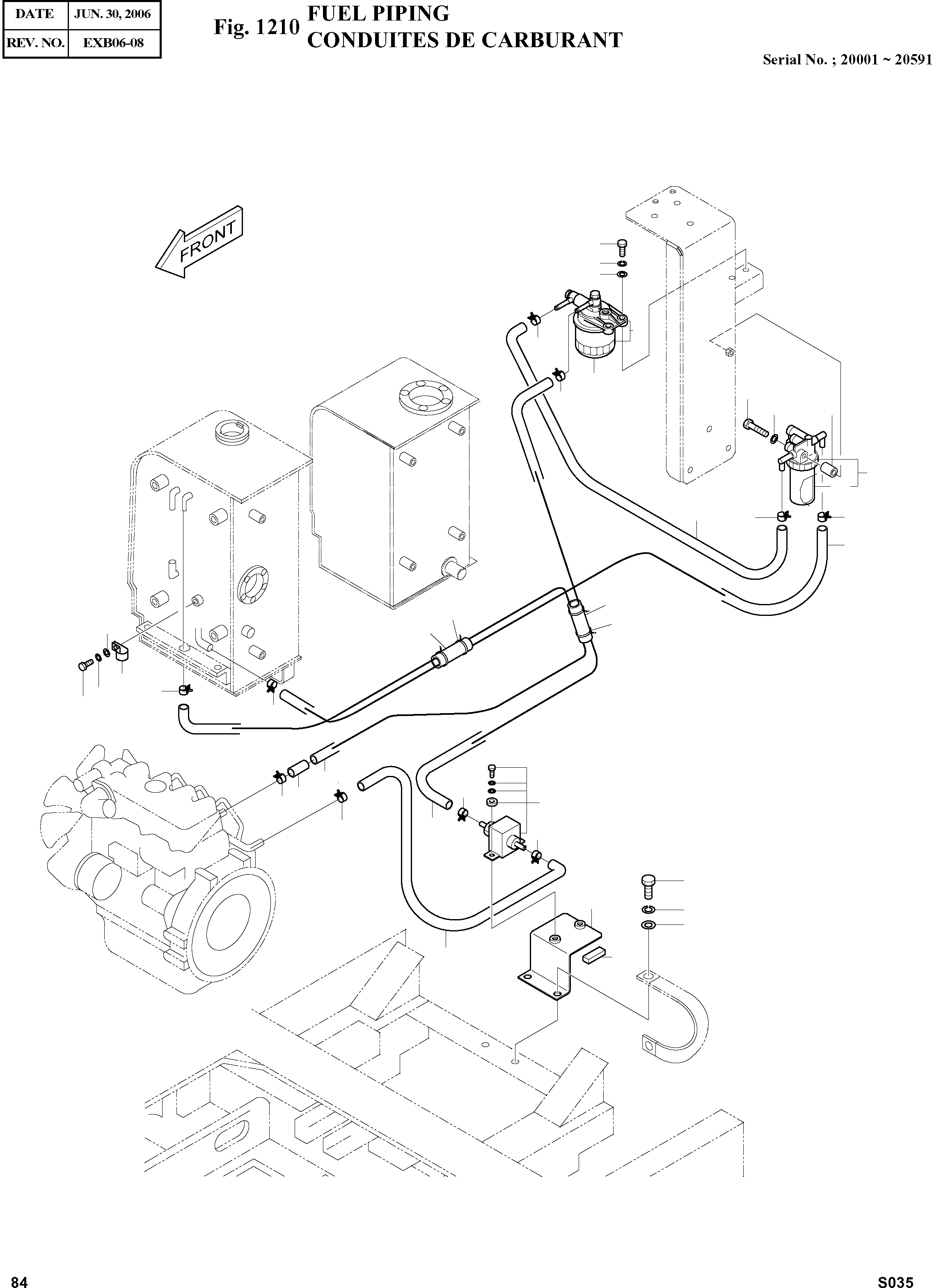

Запчасти Doosan Daewoo FUEL PIPING UPPER STRUCTURE

-

400-00970

FUEL PIPING

SERIAL: 20001-20591

-2шт.

1

2185-1247D24

HOSE M9.53X15.88X2350

desc: TUYAU FLEXIBLE

1шт.

2

2185-1247D107

HOSE M9.35X15.88X320

desc: TUYAU FLEXIBLE

1шт.

3

2185-1247D69

HOSE M9.35X15.88X1600

desc: TUYAU FLEXIBLE

1шт.

4

2185-1247D4

HOSE M9.35X15.88X300

desc: TUYAU FLEXIBLE

1шт.

6

2185-1247D108

HOSE 2600

desc: TUYAU FLEXIBLE

1шт.

7

S8450012

CLIP;HOSE

desc: COLLIER

8шт.

8

S8450006

CLIP;HOSE

desc: COLLIER

2шт.

9

897086-2451

SEDIMENTER ASS'Y

desc: SEDIMENTEUR

1шт.

10

894360-2540

ELEMENT

desc: ELEMENT FILTRANT

1шт.

11

S0557053

BOLT M8X1.25X85

desc: BOULON A 6PANS

1шт.

12

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

1шт.

13

2197-1241B

BRACKET;FUEL PUMP

desc: SUPPORT

1шт.

14

S0512053

BOLT M10X1.5X25

desc: BOULON A 6PANS

2шт.

15

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

16

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

2шт.

17

894241-1792

PUMP FUEL

desc: POMPE

1шт.

18

897014-2040

FILTER;FUEL ASS'Y

desc: FILTRE

1шт.

18-1

894132-9471

CARTRIDGE;FUEL

desc: . ELEMENT FILTRE

1шт.

19

2161-1744

RUBBER;TRIM

desc: CAOUTCHOUC

1шт.

20

S0512053

BOLT M10X1.5X25

desc: BOULON A 6PANS

2шт.

21

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

22

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

2шт.

23

2124-1509D2

CLIP

desc: ATTACHE

1шт.

24

S0504553

BOLT M6X1.25X14

desc: BOULON A 6PANS

1шт.

25

S5102303

WASHER;SPRING

desc: RONDELLE ELASTIQUE

1шт.

26

S5010313

WASHER;PLAIN

desc: RONDELLE

1шт.

27

2114-1756

COLLAR

desc: COLLIER

1шт.

28

185-00319

HOSE

desc: TUYAU FLEXIBLE

1шт.

29

2161-2117

PLATE;RUBBER

desc: PLAQUE CAOUTCHOUC

2шт.

30

2124-1084D3

CLIP

desc: ATTACHE

4шт.
