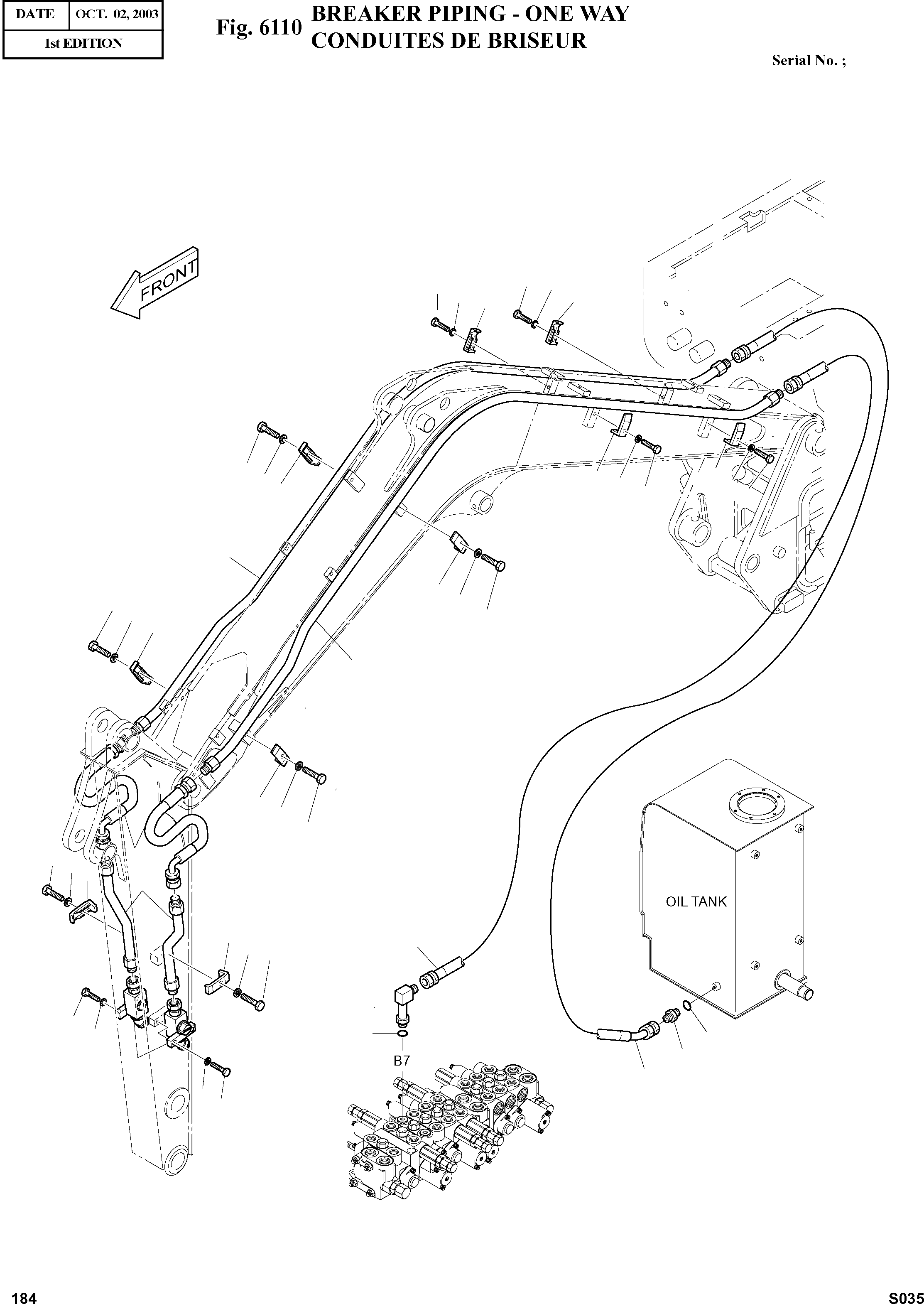

Запчасти Doosan Daewoo BREAKER PIPING - ONE WAY OPTIONAL PARTS

-

2400-1928A

BREAKER PIPING ASS'Y

SC: D

-2шт.

1

2182-1699B

PIPE

desc: TUYAU

2шт.

2

2182-1703C

PIPE

desc: TUYAU

1шт.

5

2184-1071D36

HOSE PF1/2-800L

desc: TUYAU FLEXIBLE

2шт.

12

2124-1026D1

CLAMP;PIPE

desc: ATTACHE DE TUYAU

10шт.

13

S0558453

BOLT M10X1.5X45

desc: BOULON A 6PANS

10шт.

14

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

14шт.

17

2420-9612B

STOP VALVE ASS'Y

desc: VANNE

2шт.

18

S0558753

BOLT M10X1.5X60

desc: BOULON A 6PANS

4шт.

23

140-00216A

PIPE

desc: TUYAU

1шт.

24

2181-1126D6

ADAPTER PFO1/2XPF1/2

desc: ADAPTEUR

1шт.

25

S8000181

O-RING

desc: JONT TORIQUE

1шт.

26

2184-1070D47

HOSE PF1/2XPF1/2-2100L

desc: TUYAU FLEXIBLE

1шт.

27

2181-1702D35

ELBOW PFO1/2XPF3/8

desc: COUDE

1шт.

28

2184-1026D299

HOSE PF1/2XPF1/2-3000L

desc: TUYAU FLEXIBLE

1шт.

29

S8000141

O-RING

desc: JONT TORIQUE

1шт.
